idi Ilex Q-Card Quick Start Manual

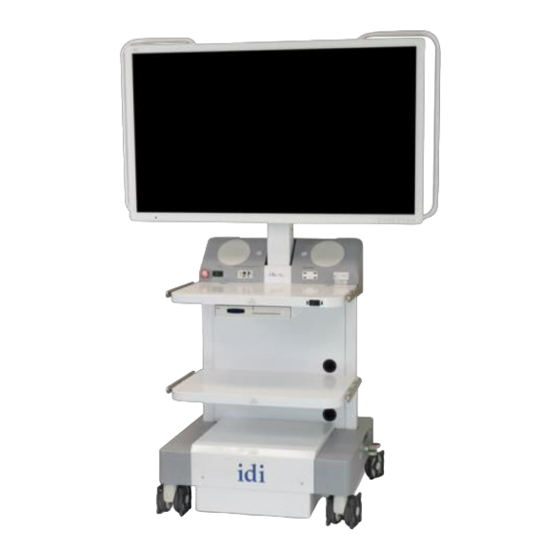

Ilex Q-Card
WARNING!
Read operator manual prior to use

Power On Device

ilex unit is equipped with power cord. Plug power cord into hospital grade
outlet. Press Green "ON/OFF" switch on the left side of the top shelf.
Plug in video sources to be connected to monitor
Each video channel has a designated DVI input on
the monitor. The device connected first in each
channel will show on the monitor. DVI 3 utilizes
the router switch. To switch between multiple
inputs, see back side of Q-card.

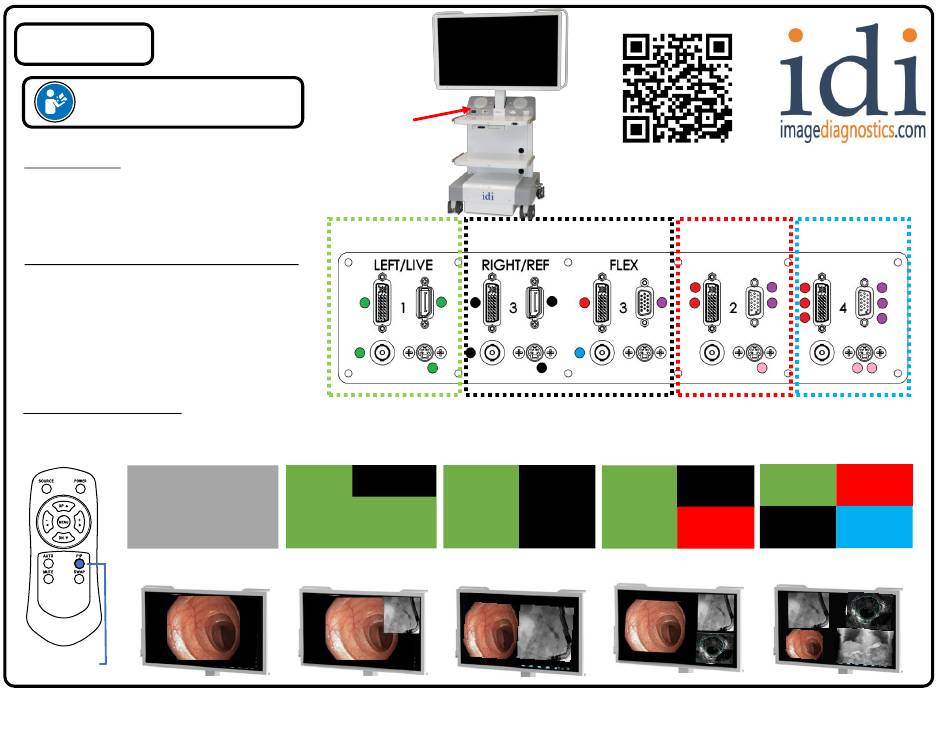

Select Layout or "PIP Mode"
To change layouts, press PIP button on remote. Each press of the PIP button will cycle to the next layout. As shown: Single, Picture-in-Picture (PIP), Picture-by-
Picture (PBP), Triple, and Quad.
DVI1 or DVI 2 or
DVI3 or DVI 4 or
DP1 or DP2
Single
PIP Button
"ON/OFF"
switch
DVI 1
DVI3/DP2
DVI1/DP1 DVI1/DP1
PIP PBP
Scan Here for
Operator Manual
Then Scroll to ilex
DVI 3 DVI 2
DVI3/DP2
DVI3/DP2
DVI1/DP1
DVI2
Triple
DVI 4
DVI1/DP1 DVI2
DVI3/DP2 DVI4
Quad
L280-1254 Rev B L280-1159 Rev A
