Connection Of Water Pipes - Genvex Vanvex RS Installation Manual

The plumbing must be carried out according to regulations.
The piping can be made of flexible or solid materials. Care
must be taken in respect to corrosion to avoid damages.
As for all pressurerized containers the heat pump must also
be equipped with safety and non-return valves on the supply
side.
Cold water inlet and hot water outlet is located on the back
of the boiler (3/4" RG).
The maximum working pressure is 10 bar, and the maximum
working temperature is 65°C.
If necessary, the supply pipe must be equipped with a
pressure reduction valve and eventually a filter.
When installing the pipe work in the house any dirt in the
pipes must be avoided. (Eventually flush the pipes with
clean water before the heat pump is installed)!
When the pipes are connected make sure the pipes are not
twisted. Use tools to hold the pipes against twisting!
If no recirculation is needed make sure the recirculation
connector is closed!
Water connection
The following connections are located on the back of the
heat pump:
Condensate drain hose
Cold water inlet / Recirculation / Hot water outlet
No holes may be drilled. It can damage the
winded condenser

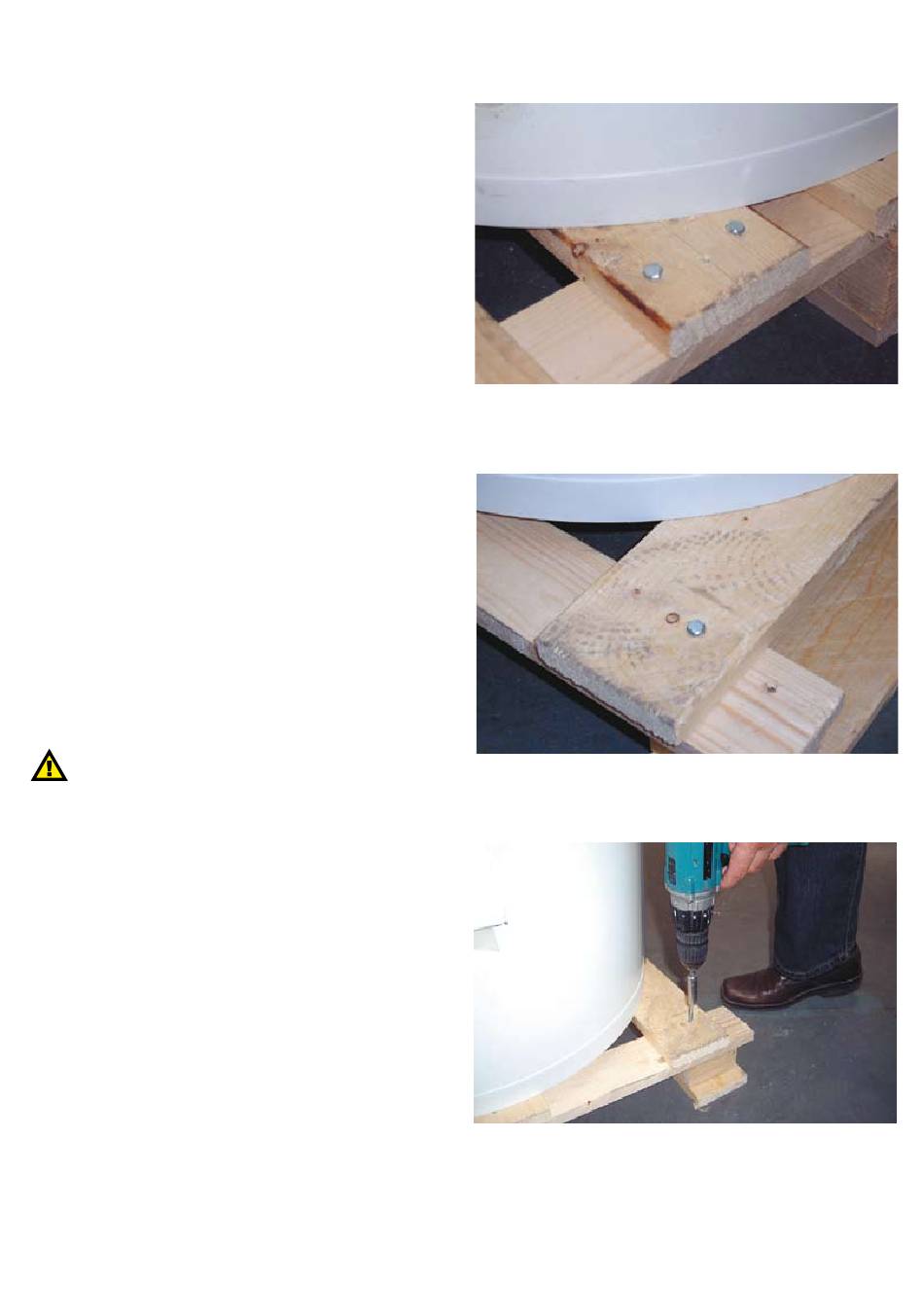

1. Screws to be removed (hexagonal head).
2. Screws to be removed
3. Removal of screws
