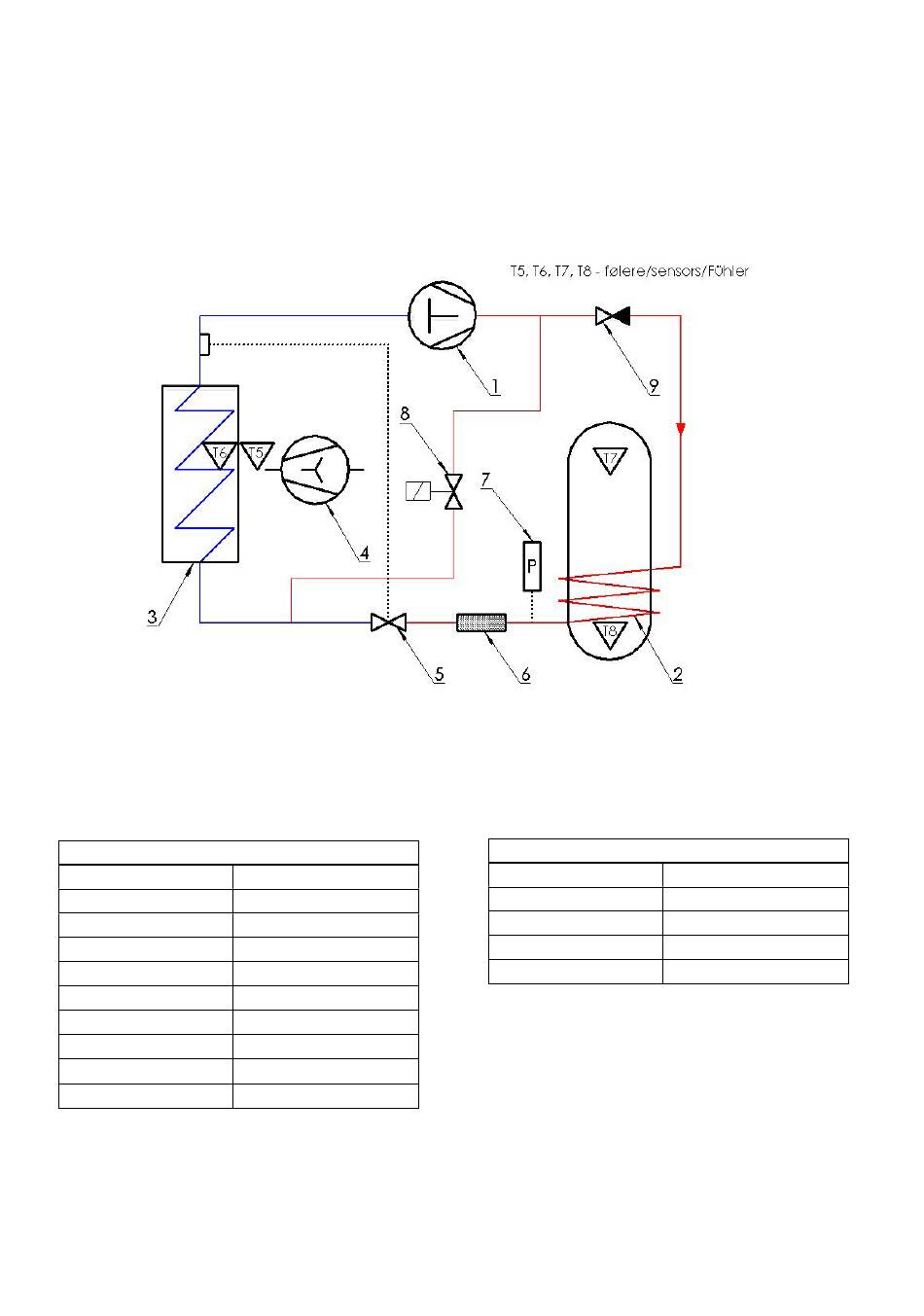

1.4.4 Refrigerant circuit
Component overview
No.:
1
2
3
4
5
6
7
8
9
4
Description
Compressor
Condenser
Vaporiser
Centrifugal fan
Expansion valve
Drying filter
Pressure switc
Magnitic valve
One way valve
- The right to make changs is reserved -
Component overview
Sensor:
Temperature:
T5
Fresh air
T6
Vaporiser
T7
Water, at the top
T8
Water, at the buttom
