1.5 Water circuit – description
Water circuit will be constructed with respect to the
applicable norms and requirements.
Please see the specifications in sections 3.1. and 3.2

1.5.1 Requirements for the water circuit

Depending upon the materials used in the water circuit of
the dwelling, incorrect material combinations can lead to
corrosion damage due to galvanic corrosion.
This requires special attention with the use of galvanised
components and components that contain copper.
Like every compression tank the testet boiler of the heat
pump have to have a safty valve and an automatic nonreturn
valve. The installation of the cold water connection shall be
at the back of the unit (3/4" RG). The max. pressure is 10
bar and the max. temperature is 65°C. It is recommendated
to have an expansion valve and apotable water filter in the
water connection pipe.
It is recommanded to control the water connection pipe for
dirt.

1.5.2 Dimensions

- The right to make changs is reserved -
Installation Manual

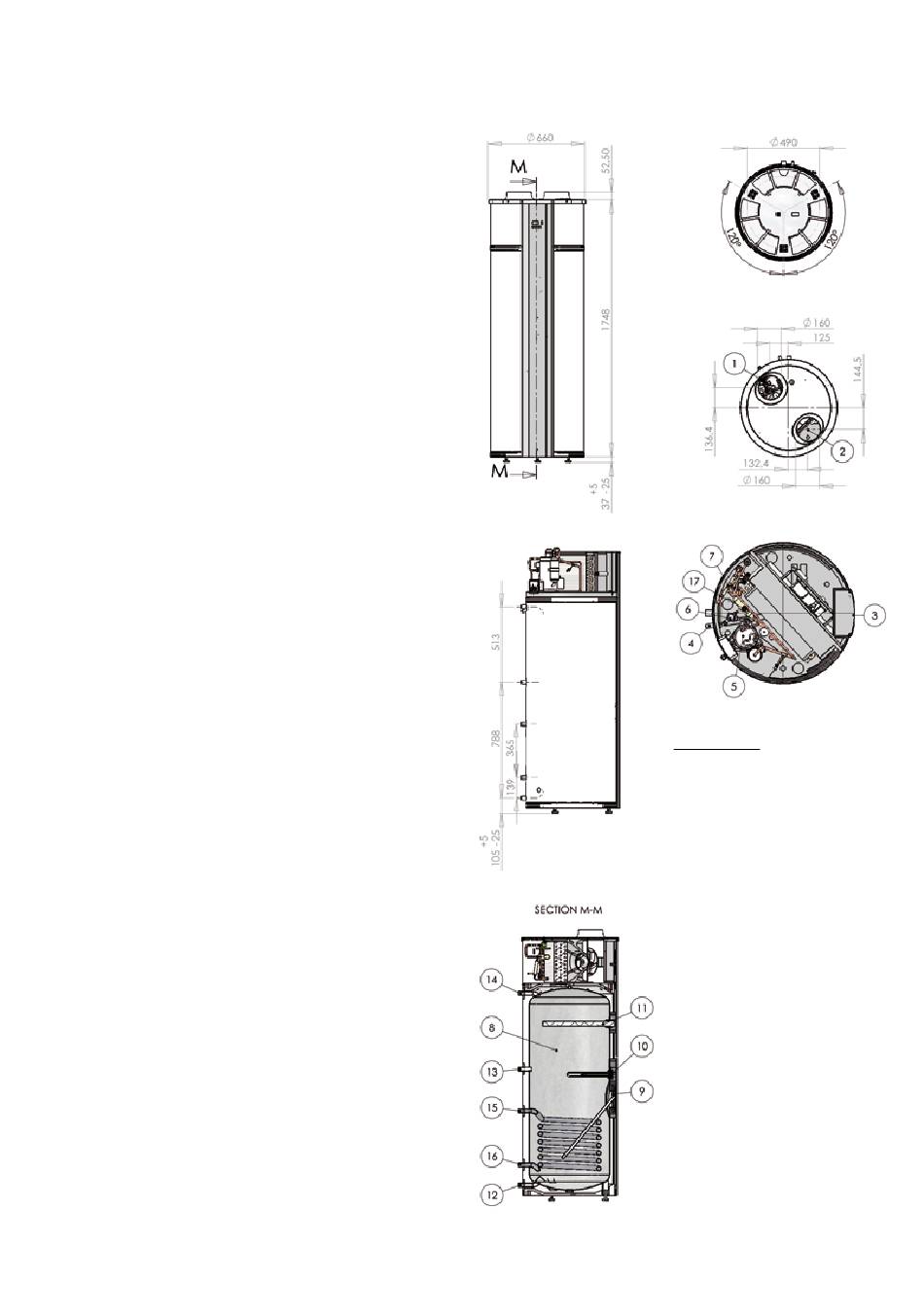

Vanvex RS:
1. Supply air
2. Exhaust air
3. Circuit board
4. Condensate drain
5. Compressor
6. Magnetic valve
7. Non return valve
8. 285 liter boiler
9. Service connecting
10. 1,5 kW electrical heating
element
11. Anode
12. Cold water connecting
3/4" RG
13. Hot water circulation 3/4" RG
14. Hot water connecting contact
3/4" RG
15. Sun collector In 3/4"
16. Sun collector Out 3/4"
17. High pressure switch
