MicroNet SP6510P Quick Installation Manual

Hardware Installation
Connecting the switch to ground protects against lightning over-
voltage and over-current of the switch, which is also a necessary
measure to protect the body from electric shock.

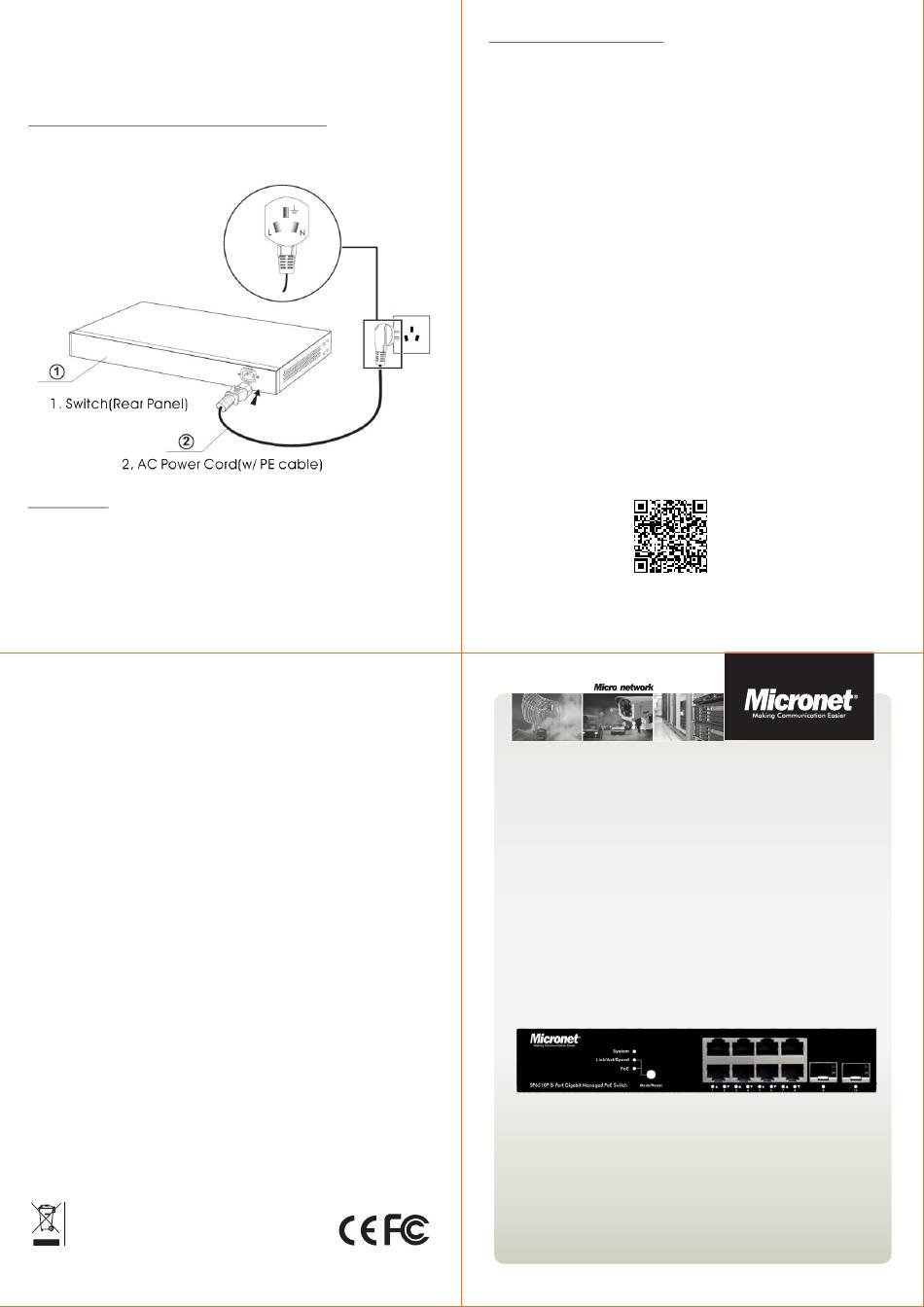

Connect To Ground Through The Power Supply
If the switch is installed in a normal environment, it can be grounded
through the PE (Protective Earth) wire of the AC power supply, as
shown in the following figure
Powering Up
1.Connect the Power Cord to PoE switch and then to a power
outlet.
2.Check the SYSTEM LED. If it is ON, the power connection is
correct.
CE Mark Warning
This equipment complies with the requirements relating to
electromagnetic compatibility of the essential protection
requirement of Council Directive 2004/108/EC on the approximation
of the laws of the Member States. Company has an on-going policy
of upgrading its products and it may be possible that information in
this document is not up-to-date. Please check with your local
distributors for the latest information. No part of this document can
be copied or reproduced in any form without written consent from
the company.
WEEE Directive & Product Disposal
At the end its serviceable life ,this product should not be treated as
household or general waste. It should be handed over to the applicable
collection point for the recycling of electrical and electronic equipment,
or returned to the supplier for disposal.
P/N 2300-0752
5
7
Connecting Network Device
1.Connect one end of an RJ-45 cable to the Ethernet port on the
front panel and the other end to a PC or terminal for web interface
management.
2.Connect a RJ-45 Ethernet cable from IEEE802.3af/802.3at
compliant devices (PD) to an available PoE port of PoE switch.
Note:
Port 1 to Port 8 are used for connecting to PD or PoE splitter for
end devices.
Configuration
Web-based User Interface
Before using web management, install the SP6510P on the network
and make sure that any one of the PCs on the network can connect
with the SP6510P through the web browser. The default IP, subnet
mask, and password are as follows:
IP Address: 192.168.1.1
Subnet Mask: 255.255.255.0
User Name: admin
Password: admin
----------For more details, please refer to the user manual --------
1. Go to http://www.micronet.com.tw-->Support->Download
Center->Product name search --> "SP6510P"
2. Scan QR code
Communicate via
Quick Installation Guide

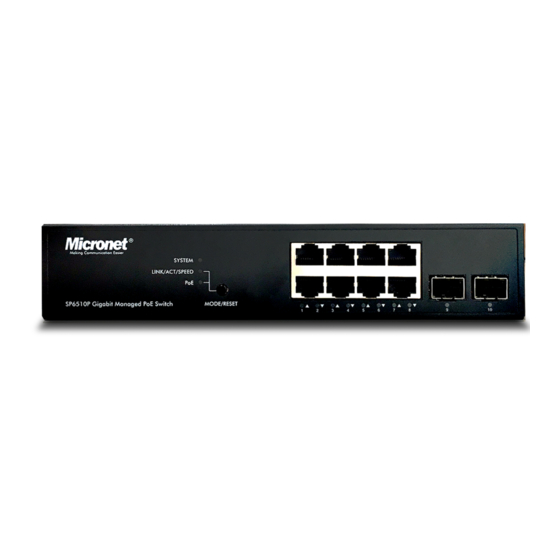

10-PORT GIGABIT MANAGED PoE
SWITCH
Model No.: SP6510P
