MicroNet SP659C Installation Manual

Specifications
IEEE802.3, IEEE802.3u,
System
IEEE802.3x, IEEE802.3ab
24 RJ-45 ports (10/100Mbps)
Interface
2 RJ-45 ports (10/100/1000Mbps)
RJ-45 (10BASE-T):
Category 3, 4, 5 UTP/STP
RJ-45 (100BASE-TX):
Cable Connections
Category 5 UTP/STP
RJ-45 (1000BASE-T):
Category 5, 5e UTP/STP
10Mbps
Transmission Mode 100Mbps Full/Half Duplex
1000Mbps Full Duplex
System: Power
Port:
LED indications
LINK/ACT(24 10/100M),
10M, 100M, 1000M, Act (2 Gigabit)
Auto Uplink (Auto MDI / MDI-X)
Uplink
8.8Gbps
Switch Fabric
System Buffer Memory 2.5Mbits
MAC Address Table
8K entries
10Mbps: 14,880pps/14,880pps
Filtering/
100Mbps: 148,800pps/148,800pps
Forwarding Rate
1000Mbps: 1,488,100pps
Emission FCC Class A, CE
Operating Temperature
0 ~ 50 C (32 ~ 122 F)
Operating Humidity
10% - 90% (Non-condensing)
Dimension & Weight
441 x 130 x 44 mm, 1.5kg
Power Supply
100-240V 50/60Hz, 0.4A Max
Full/Half Duplex
o o o o
5
P/N: 2300-0218
CE Mark Warning
This equipment complies with the requirements relating to
electromagnetic compatibility, EN 55022 class A for ITE, the
essential protection requirement of Council Directive
89/336/EEC on the approximation of the laws of the Member
States relating to electromagnetic compatibility.
Company has an on-going policy of upgrading its products and
it may be possible that information in this document is not up-
to-date. Please check with your local distributors for the latest
information. No part of this document can be copied or
reproduced in any form without written consent from the
company.
Trademarks:
All trade names and trademarks are the properties of their
respective companies.
Quick Installation Guide

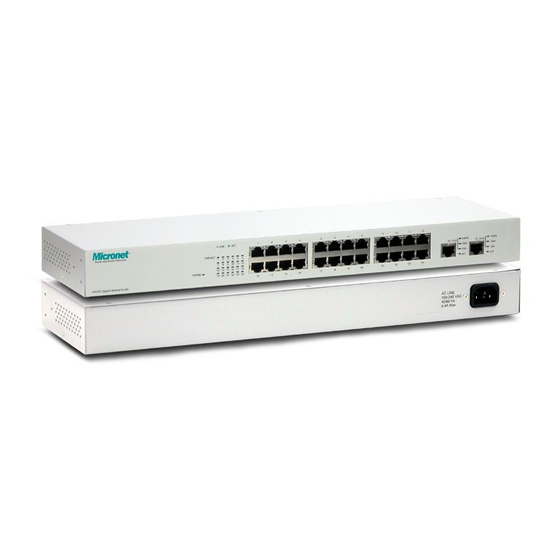

Gigabit Ethernet Switch
Model No.: SP659C
