Elite Screens EDGE FREE AR150WH2 User Manual

Applies to all available screen materials: CineGrey 3D EDGE FREE ™ and CineWhite EDGE FREE ™
Product Description:

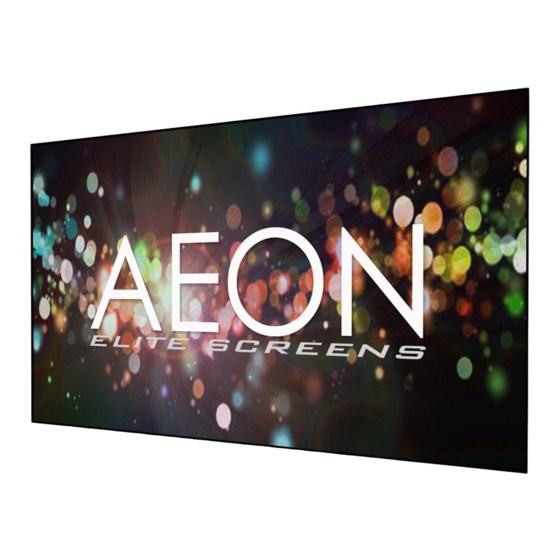

The Aeon Series is a fixed frame projection screen that uses Elite's EDGE FREE™ technology. The EDGE
FREE™ design resembles a giant size flat panel TV display. The Aeon includes a velvet tape as an installation
option to further enhance the frame appearance and absorb projector overshoot.
backlighting kit is available for added visual appearance. For more information on the LED kit please visit:
http://www.elitescreens.com/led
Hardware and Parts List
Please make sure all parts listed below are included before installation.
A. Elbow joint x 4 pcs
D. Center joints x 2 pcs
G. M6 screw x 2-4 pcs
J. M5x50 screws and anchor x 6 pcs
M. Velvet tape
V150327
Aeon Series
EDGE FREE™ Fixed Frame Projection Screen
User's Guide
B. Top/Bottom horizontal fame x 4 pcs
E. Center support bar x 1-2 pc
H. M5x15 screw x 24 pcs
K. Rubber hammer x 1 pc
www.elitescreens.com
An optional
C. Left/Right vertical frame x 2 pcs
F. Wall brackets x2-3 pcs
I. M6x12 screw x 2-4pcs
L. Screwdriver x1 pc
LED edge
1
