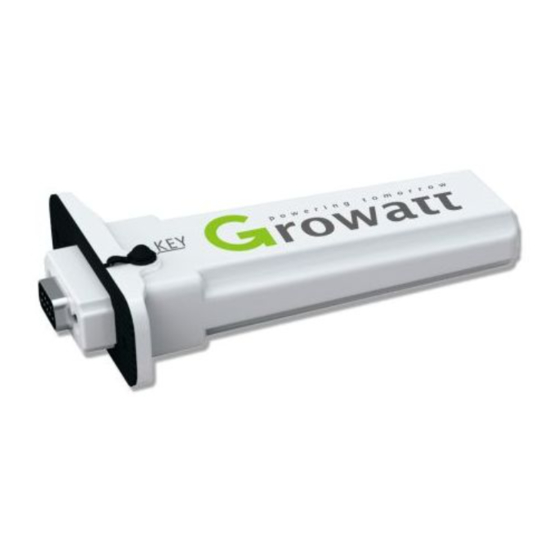

Growatt Shine3G Quick Installation Manualline

Growatt Shine3G
Growatt ShineGPRS
Quick Installation Guideline
For more info, please download from http://server.growatt.com
+86 755 2747 1942 +86 755 2747 2131
service@ginverter.com

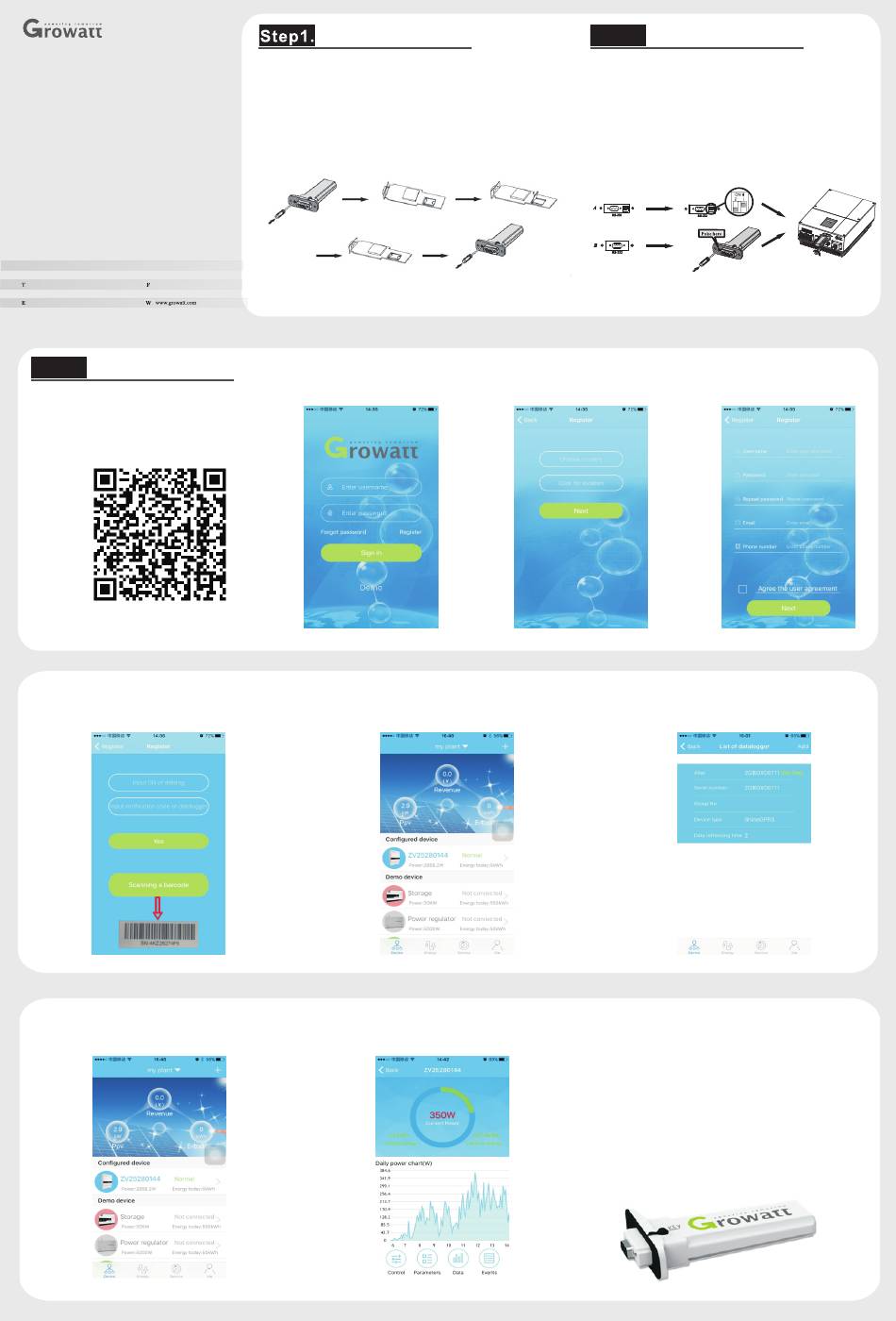

Register and Add device
Step3.
Search "Shine Phone" in google play or app store, or scan
the picture below, download and install the app.
NOTE: 1.Please install the latest version;
2.For more details, please refer to the content on
server.growatt.com.
Android& iOS
【 】
3.Then enter the SN and check code of the Shine3G/
ShineGPRS or just scan the QR code on it in the following
page to add Shine3G/ShineGPRS into this account.
5. Then click the "Device" tab at the bottom line to move to
"Device" page, All detailed information of the PV system
can be viewed here.
SIM card installation procedure
Note: 1. If there is SIM card in the data logger, ignore this step.
2. Don't touch other parts on the PCB board.
Remove the waterproof gasket, unscrew the screws, then open the shell
and take out the PCB board, install the SIM card, put the PCB board into
its shell, tighten the screws and put on the waterproof gasket.
1.Connect your mobile phone to the WiFi of the router.
2.Run the ShinePhone, register users, fill in the user information;
4.The successful registration, login account go to "My power
plants, click" + "on top right
online access;
Step2.
A If there is a DIP switch next to the RS232 port, please set
DIP 1 to
lock screws.
B If there is no DIP switch, poke the small rubber plug from the
screw hole adjacent to the RS232 port. Plug into the RS232
port and lock screws.
to view the acquisition whether
Remark:The connection status of the
can be checked by the status of the blue LED light
beside the Key button in the
1. Blue LED status indicator:
Steady:Device Initialization
Off:No device found on RS232 port
Flash (0.2s cycle changes): Found device on RS232 port
Slow flash (1s cycle changes): The network communication
normal
2. Press KEY button of the Shine3G/ShineGPRS more than 6s
to restore the factory settings, short press the KEY button to
restart it.
Electrical Connection
"ON" . Then plug in the Shine3G/ShineGPRS and
Shine3G/ShineGPRS
Shine3G/ShineGPRS
