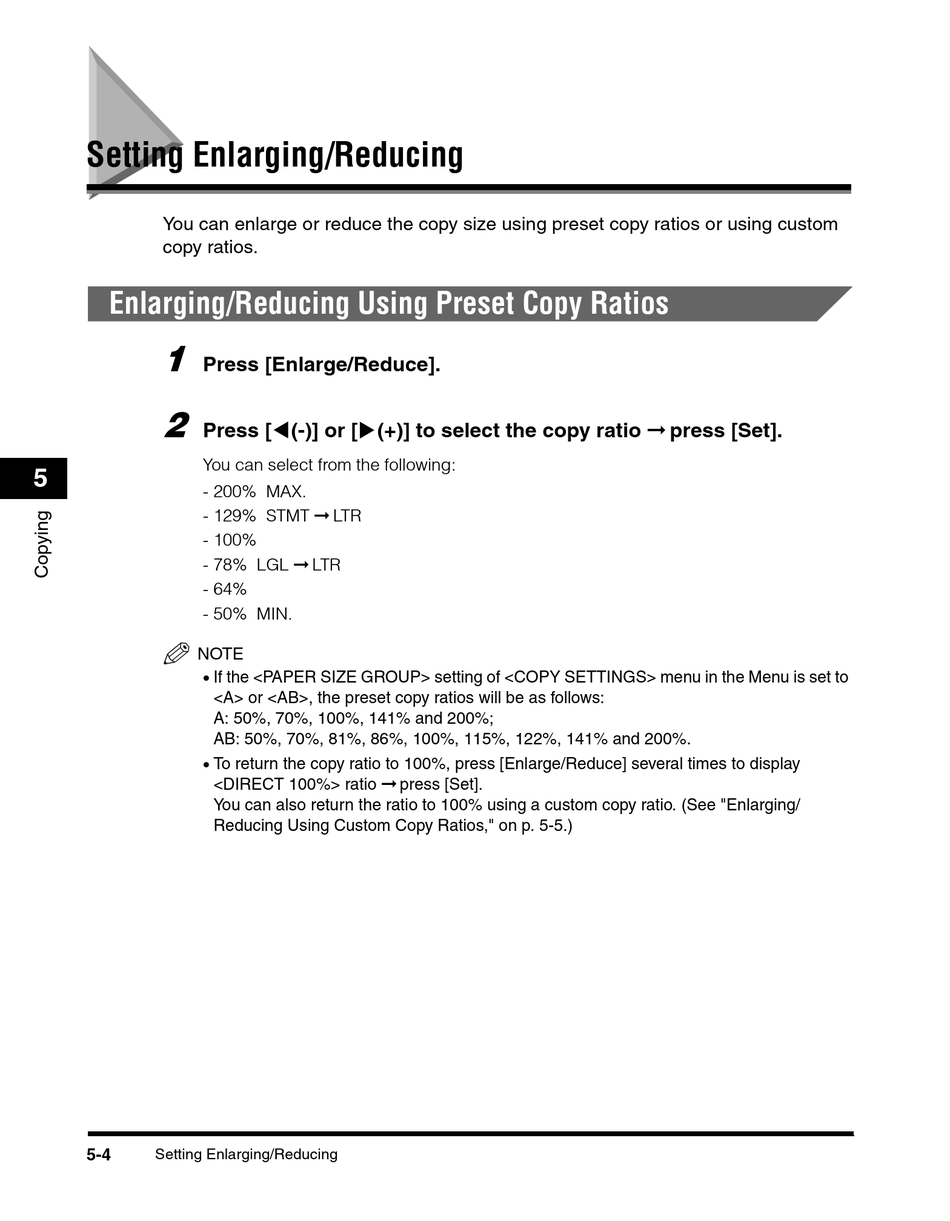

Setting Enlarging/Reducing

You can enlarge or reduce the copy size using preset copy ratios or using custom
copy ratios.

Enlarging/Reducing Using Preset Copy Ratios

Press [Enlarge/Reduce].
Press [((-)] or [)(+)] to select the copy ratio ➞ press [Set].
You can select from the following:
5
- 200% MAX.
- 129% STMT ➞ LTR
- 100%
- 78% LGL ➞ LTR
- 64%
- 50% MIN.
NOTE
5-4 Setting Enlarging/Reducing
If the <PAPER SIZE GROUP> setting of <COPY SETTINGS> menu in the Menu is set to
<A> or <AB>, the preset copy ratios will be as follows:
A: 50%, 70%, 100%, 141% and 200%;
AB: 50%, 70%, 81%, 86%, 100%, 115%, 122%, 141% and 200%.
To return the copy ratio to 100%, press [Enlarge/Reduce] several times to display
<DIRECT 100%> ratio ➞ press [Set].
You can also return the ratio to 100% using a custom copy ratio. (See "Enlarging/
Reducing Using Custom Copy Ratios," on p. 5-5.)
