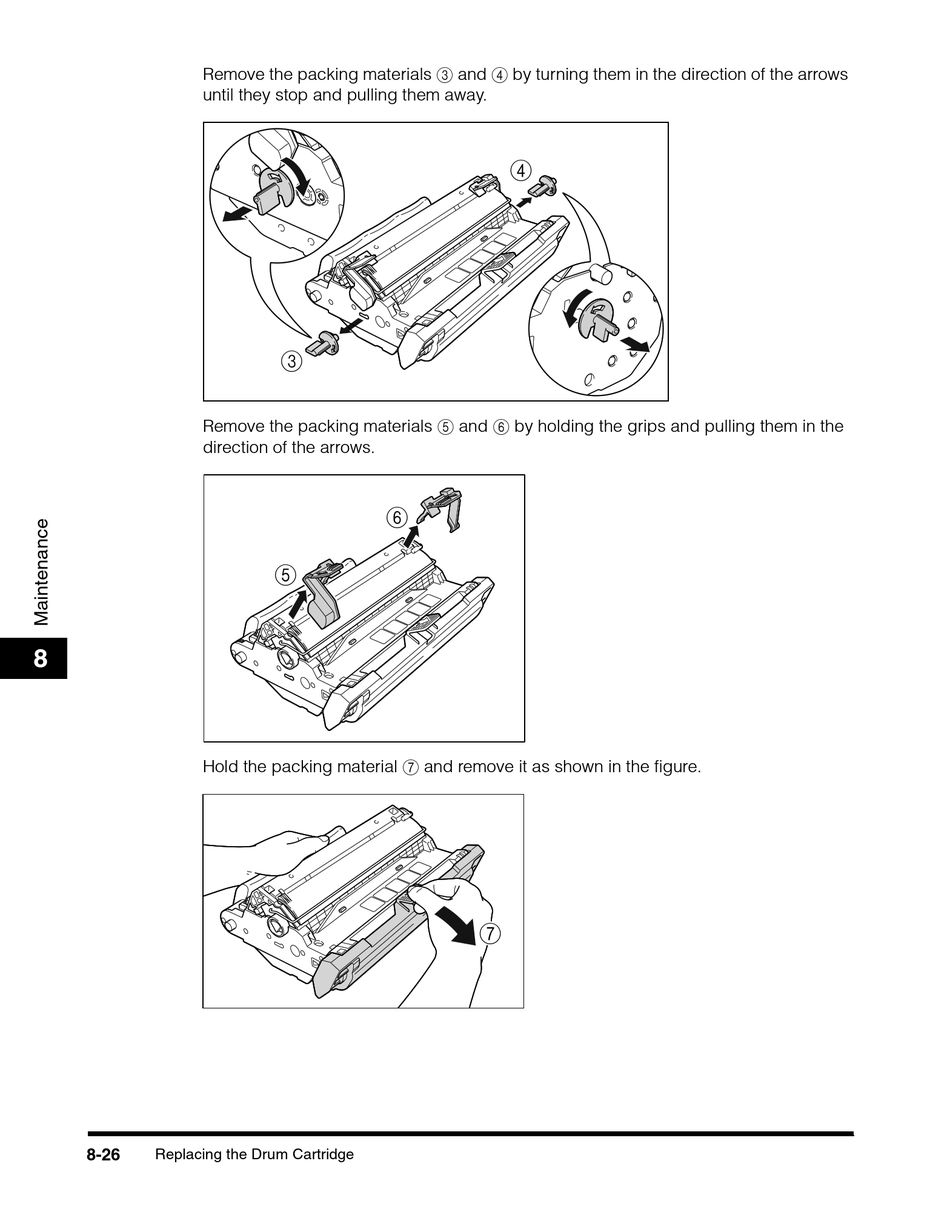

Remove the packing materials c and d by turning them in the direction of the arrows
until they stop and pulling them away.
Remove the packing materials e and f by holding the grips and pulling them in the
direction of the arrows.
8
Hold the packing material g and remove it as shown in the figure.
8-26
Replacing the Drum Cartridge
