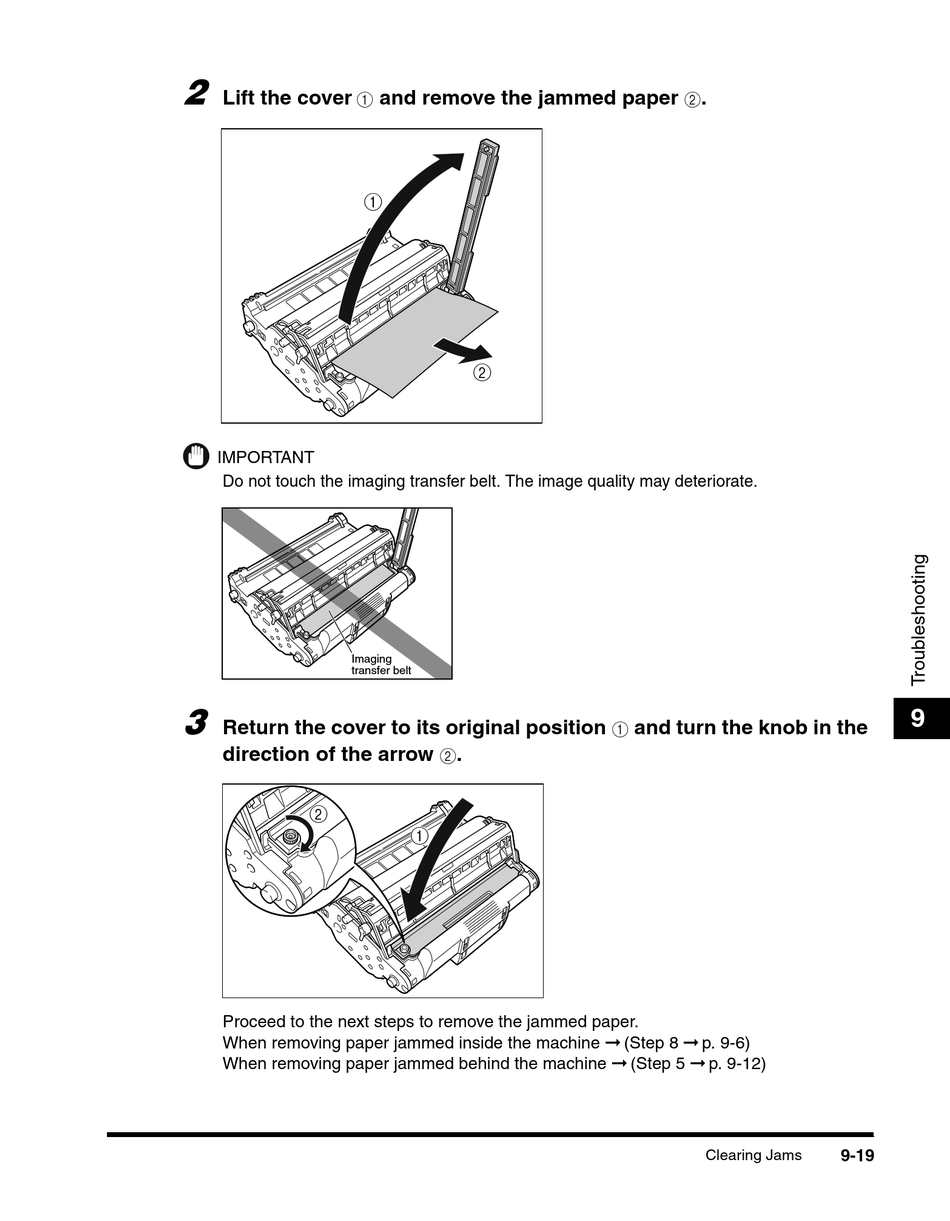

Lift the cover and remove the jammed paper
a
IMPORTANT
Do not touch the imaging transfer belt. The image quality may deteriorate.
Imaging
transfer belt
Return the cover to its original position
direction of the arrow
Proceed to the next steps to remove the jammed paper.
When removing paper jammed inside the machine ➞ (Step 8 ➞ p. 9-6)
When removing paper jammed behind the machine ➞ (Step 5 ➞ p. 9-12)
a
.
b
.
b
and turn the knob in the
