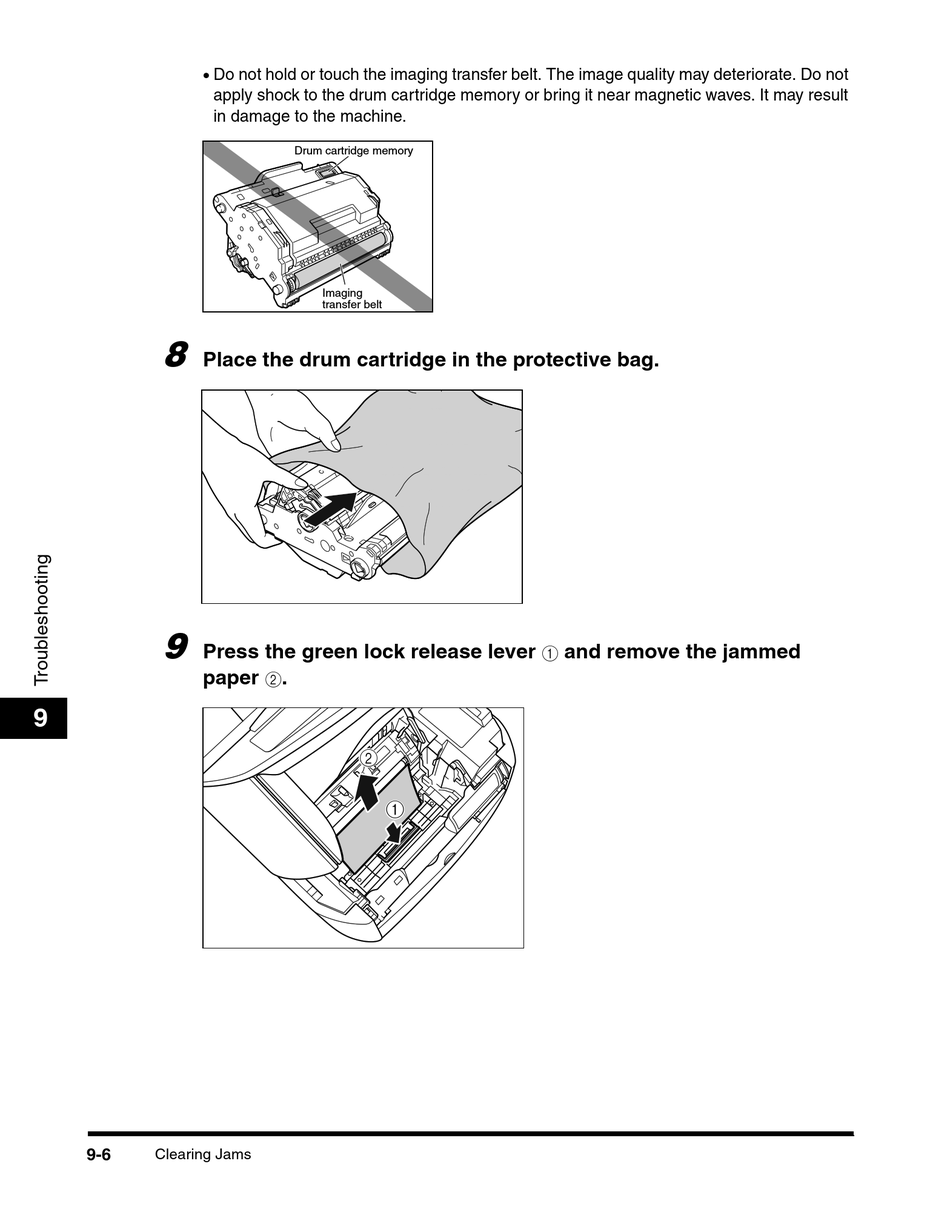

Place the drum cartridge in the protective bag.
Press the green lock release lever
paper
9
9-6
Clearing Jams
Do not hold or touch the imaging transfer belt. The image quality may deteriorate. Do not
apply shock to the drum cartridge memory or bring it near magnetic waves. It may result
in damage to the machine.
Drum cartridge memory
Imaging
transfer belt
.
b
b
and remove the jammed
a
