Removing And Cleaning The Z Auto Sensor - GRAVOGRAPH LS100 IQ Operating And Maintenance Manual

Preventive maintenance

5. Removing and cleaning the Z Auto sensor

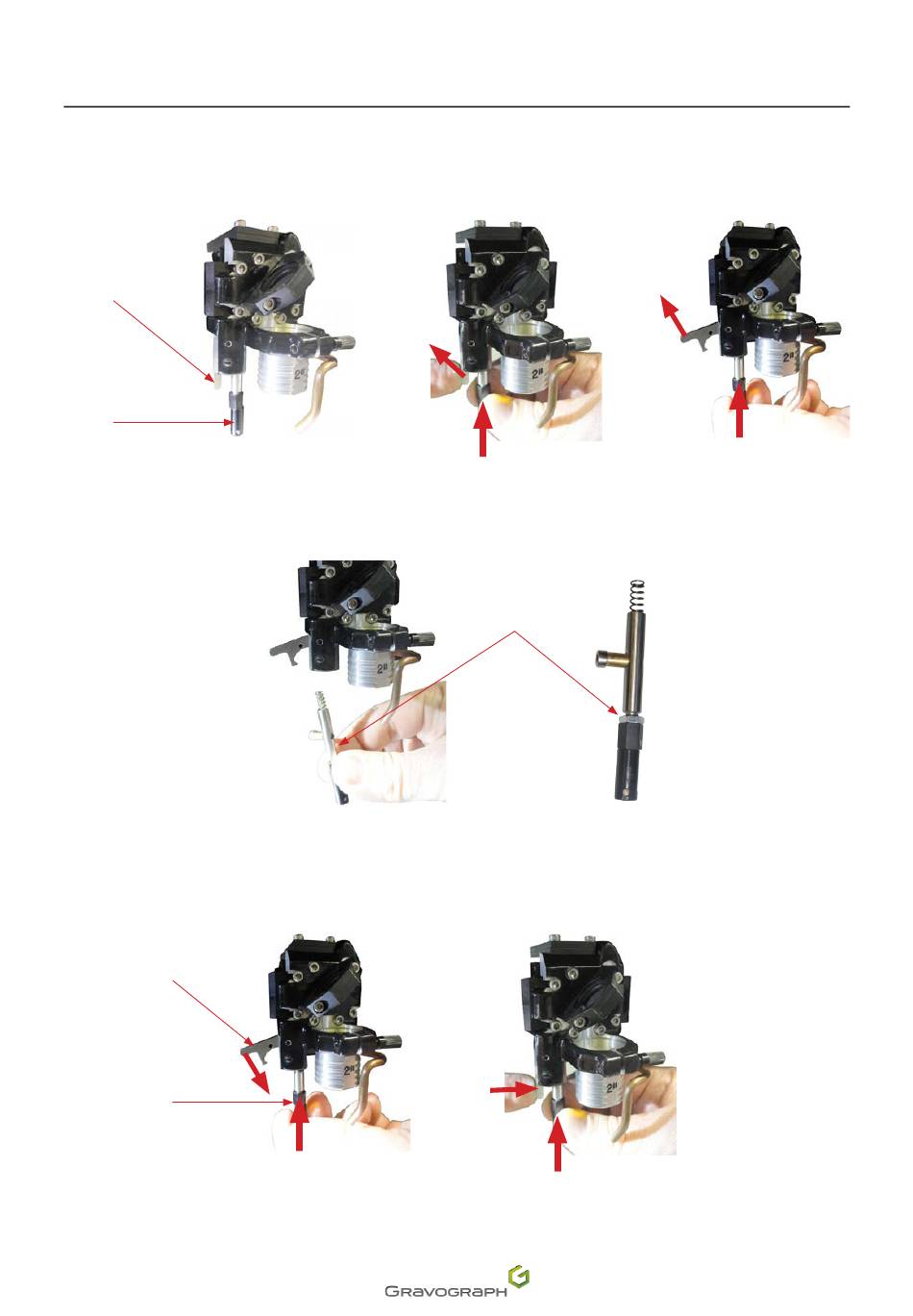

1. Push the Z Auto sensor upwards. Pull the sensor hook upwards.
1
2
1. Sensor hook
2. Z Auto sensor
2. Remove the Z Auto sensor from the bottom.
Z Auto sensor
1.
3. Clean the Z Auto sensor with a clean dry cloth.
4. Place the Z Auto sensor back into position.
1
2
1. Sensor hook
Z Auto sensor
2.
5. Lower the sensor hook.
