L. Operating instructions for the machine

1. Control panel

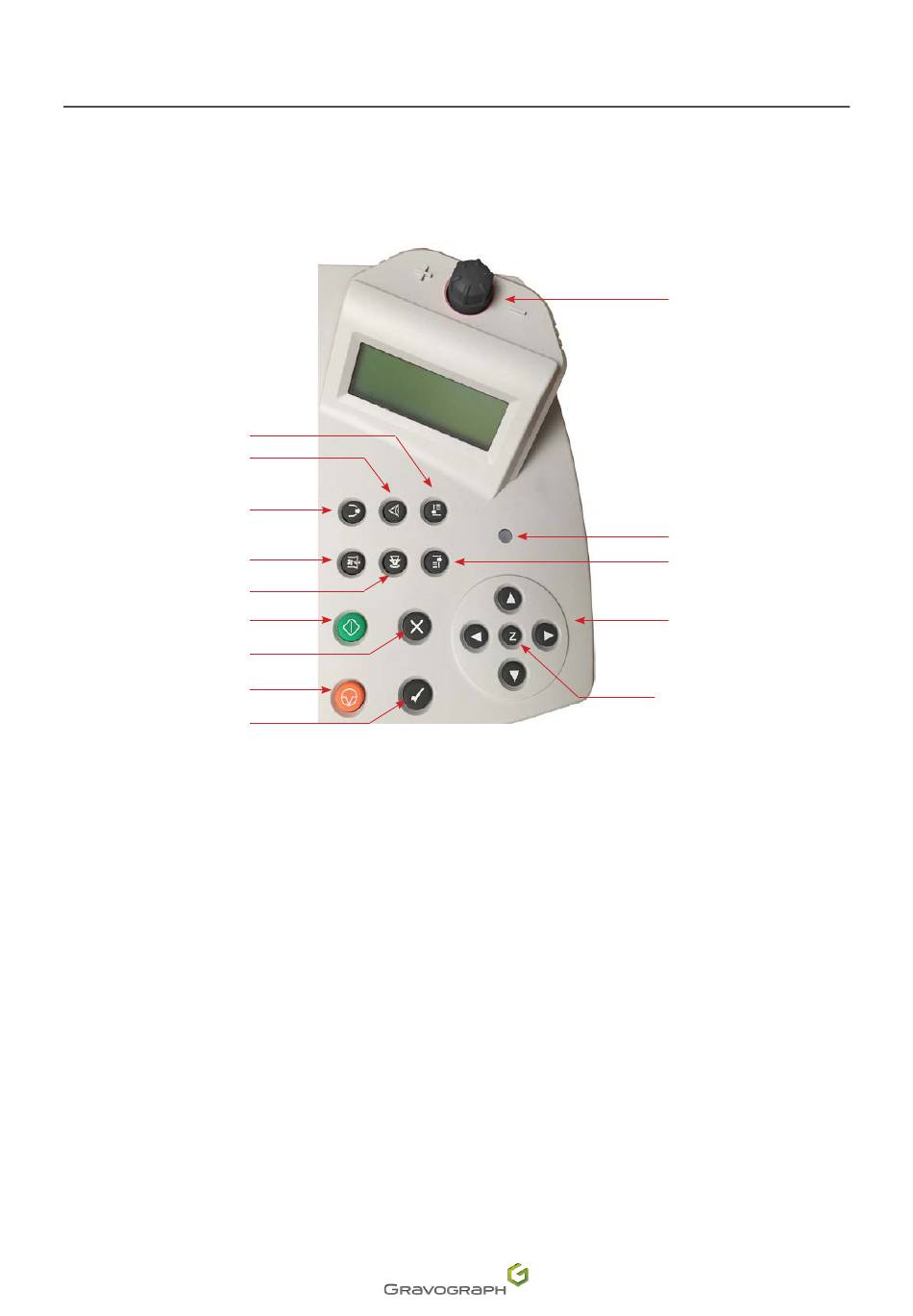

The machine control panel is used to easily access to all the controls for cutting and engraving/marking.
Selection of the next file
1.
2. Positioning pointer
3. Air assist
Air extractor
4.
5. Autofocus
6. Start - Start marking
Cancel
7.
8. Pause
9. "Check" key
10. Air assist adjustment
11. Green light - Red light
12. Selection of the previous file
13. Joystick
14. Focus adjustment
