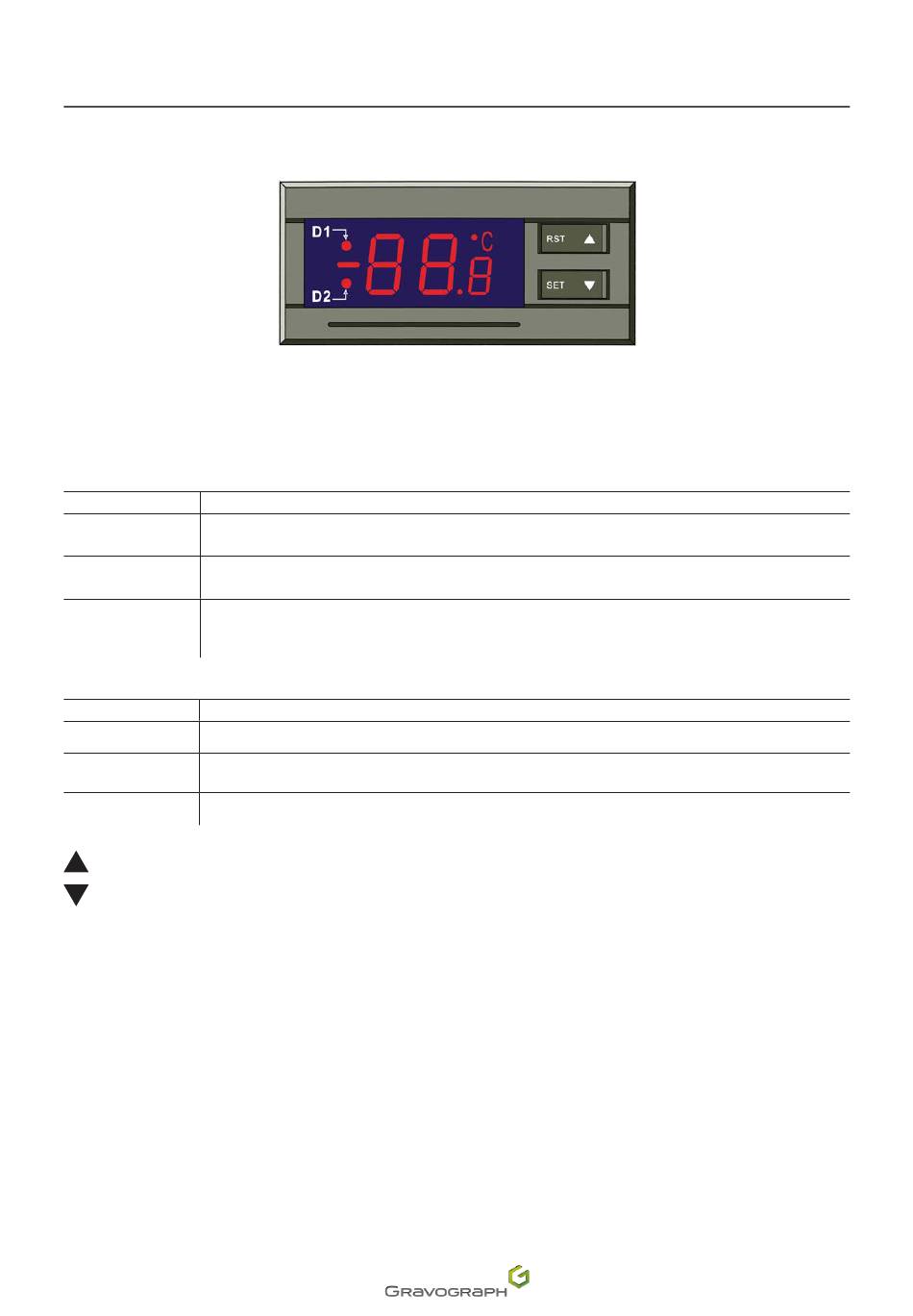

3. Control panel: Water chiller (only for ENERGY machines)

RST: "Check" key
SET: "Function adjustment" key.
Red light D1
Status
Indicator light on
Indicator light not
illuminated
The light flashes.
Red light D2
Status
Indicator light on
Indicator light not
illuminated
The light flashes.
The arrows enable the operator to adjust the controller, the display mode and the selection and adjustment
of a setting.
In any mode, press the down arrow and the display shows the ambient temperature in the room.

„ Reset

Before starting the machine, press and hold down both arrows until the controller displays "rE".
The controller returns to normal operation, 6 second(s) after the keys are released.
All the factory settings for the controller are then restored.
M_LS100IQ EX Energy_EN_C
Meaning
The controller is operating in intelligent control mode.
The controller is operating in constant temperature control mode.
The controller is operating in setting adjustment mode or is displaying ambient temperature values
in the room.
Meaning
The chiller is operating in cooling mode.
The chiller is operating in isolation mode.
The chiller is operating in energy saving mode.
