7. Connecting/disconnecting the water chiller - Filling the tank (only for ENERGY
machines)

„ Initial installation (if necessary)

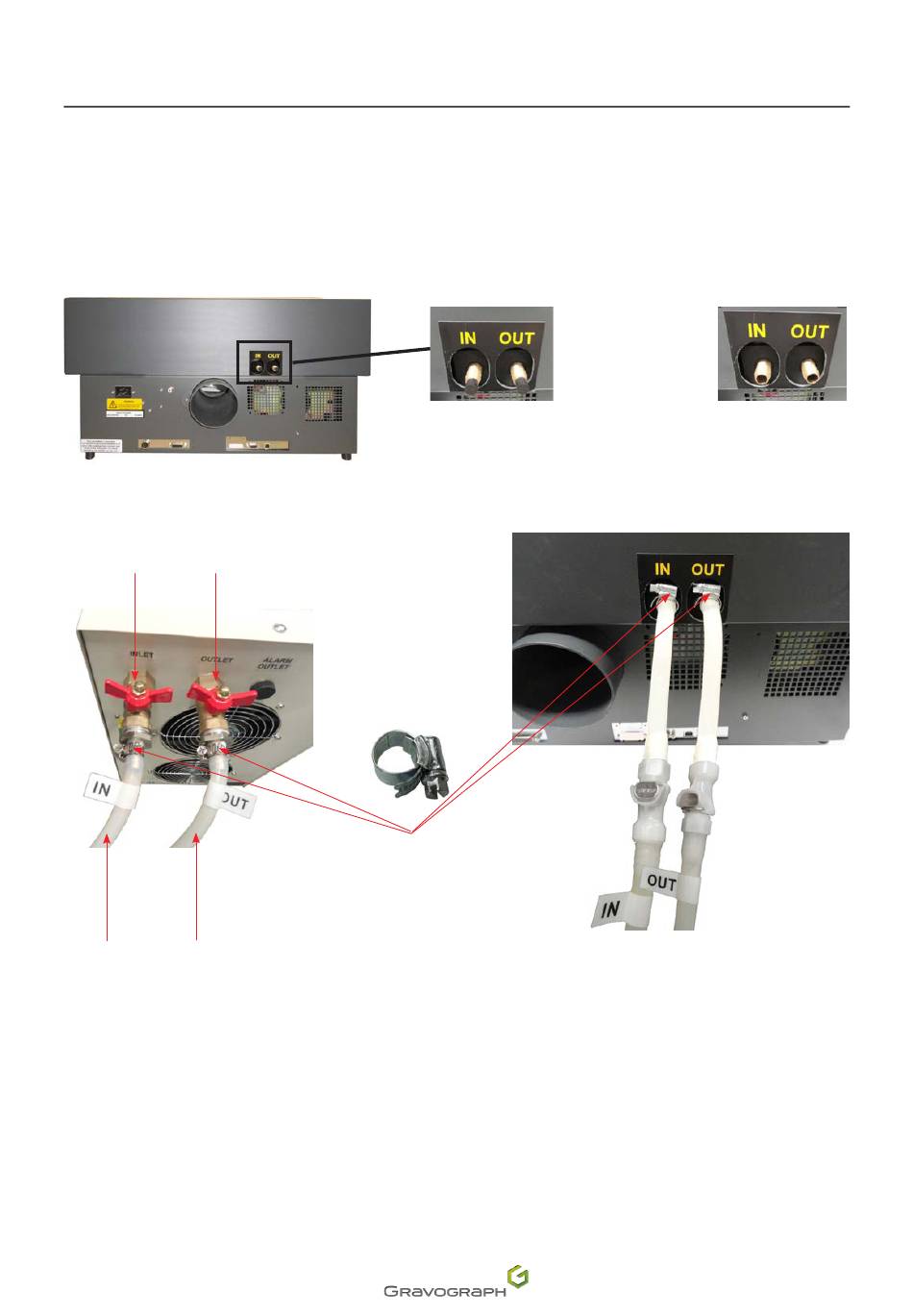

1. Remove the caps present on the water intake and outlet of the machine (retain them).
2. Fix the water hoses to the cooler and to the machine, using the hose clamps.
1
3
1. Cooling water intake (water to be cooled)
Cooling water outlet (cooled water)
2.
3. Water hose(s)
4. Hose clamp(s)
