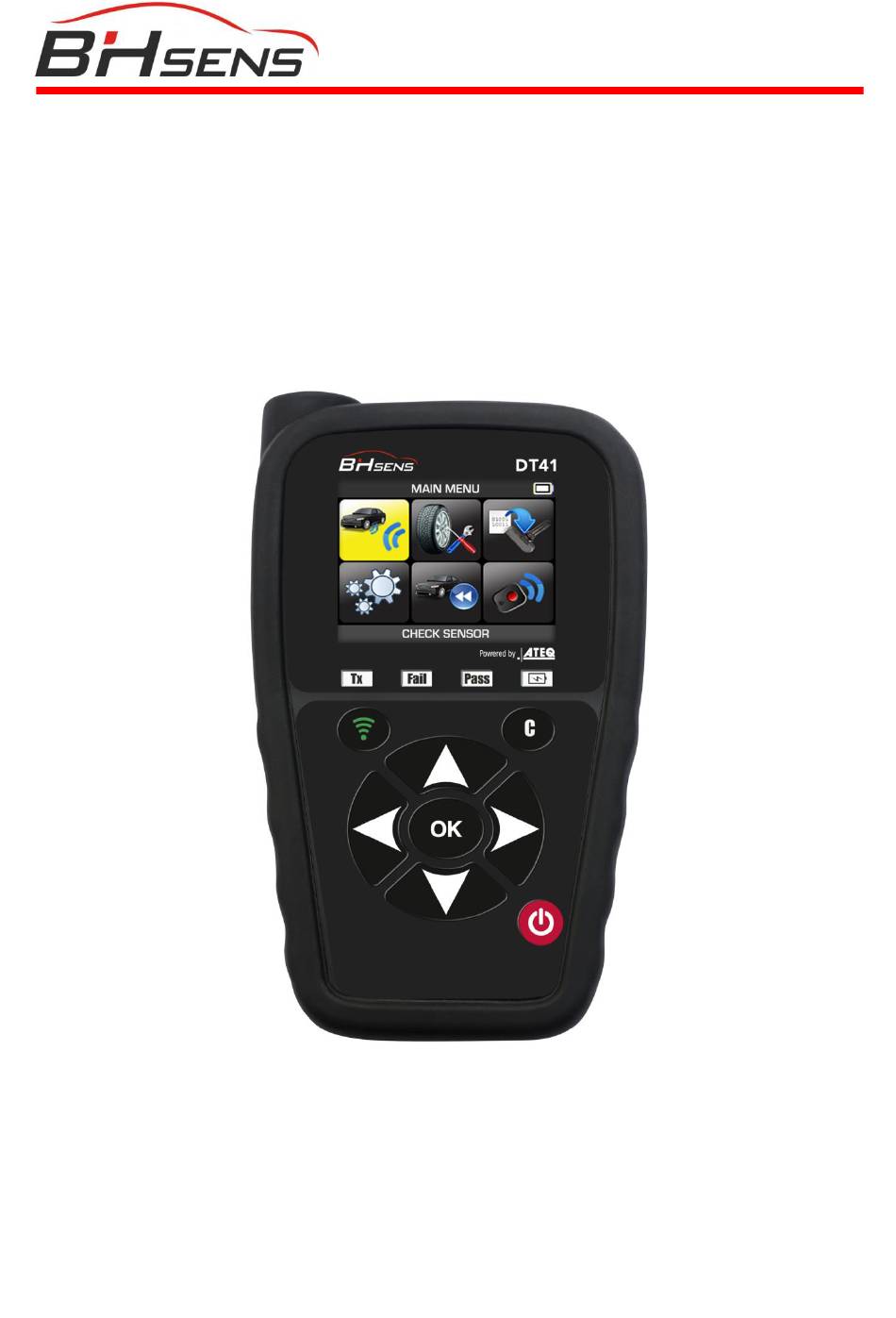

- Page 1 USER MANUAL BH SENS DT41 Software Version KJHU2-05-02 www.intellisens.com Reference: UM-KJHU2-05-02...
-
Page 2: Revision Of The User Manual
Due to continuing improvements, the information contained in this user manual, the features and design of this device are subject to be changed without prior notice. Please make sure that your BH SENS DT41 is always up-to-date. Read the dedicated chapter to learn how to update your tool software. -
Page 3: Table Of Contents
BH SENS DT41 – User Manual TABLE OF CONTENTS REVISION OF THE USER MANUAL ................1 INTRODUCTION ......................4 1. SPECIFICATIONS ..........................4 2. IMPORTANT SAFETY INSTRUCTIONS .....................6 3. DT41 OVERVIEW ..........................8 3.1. Lights ............................8 3.2. Connectors ...........................8 4. FUNCTION KEYS ..........................9 5. - Page 4 BH SENS DT41 – User Manual SETTINGS ........................29 1. SETTINGS MENU ..........................29 1.1. Change Units settings ....................... 30 1.2. Change Format settings ......................30 1.3. Change Buzzer On settings ...................... 31 1.4. Change Auto Off Settings ......................31 1.5.
-
Page 5: Introduction
BH SENS DT41 – User Manual INTRODUCTION 1. SPECIFICATIONS Power Supply 3.000 mAh rechargeable lithium-polymer battery Battery Life Approximately 300 activations per full charge Size (H x W x D) 174 mm x 97 mm x 36 mm (6.850 in x 3.818 in x 1.417 in) without rubber 176 mm x 109 mm x 43 mm (6.929 in x 4.291 in x 1.692 in) with... - Page 6 BH SENS DT41 – User Manual Product content: Europe: Huf Baolong Electronics Bretten GmbH Gewerbestr. 40, D-75015 Bretten, Germany Tel.: + 49 (0) 7252 56 77 990, Fax: +49 (0) 7252 970 5010 E-mail: support@intellisens.com Web: www.intellisens.com USA/Canada: Huf Baolong Electronics North America Corp.
-
Page 7: Important Safety Instructions
BH SENS DT41 – User Manual 2. IMPORTANT SAFETY INSTRUCTIONS Do not discard. Retain for future reference. Please note that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. - Page 8 BH SENS DT41 – User Manual WARNING: This product emits electromagnetic and electronically generated waves that may interfere with the safe operation of pacemakers. Individuals that have pacemakers should never use this product. Read the Warranty, Safety, FCC Statements and recycling information at the end of this user manual.
-
Page 9: Dt41 Overview

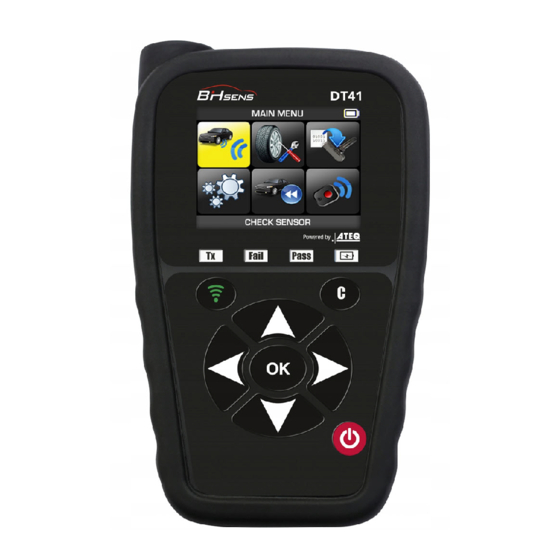

BH SENS DT41 – User Manual 3. DT41 OVERVIEW LF/RF Antenna Battery charge/low Display screen battery indicator Result indicators Cancel/No Transmission button indicator Trigger button OK/Confirmation button Navigation buttons Power ON/OFF button 3.1. L IGHTS Result light Result light Trigger light Battery status "Fail"... -
Page 10: Function Keys
BH SENS DT41 – User Manual 4. FUNCTION KEYS Power ON/OFF switch Test or trigger sensor Next, continue or confirm Cancel, previous step Navigate to select “down” Navigate to select "up” Navigate to select “left” Navigate to select “right” 5. POWER ON... -
Page 11: Service Procedure
BH SENS DT41 – User Manual 6. SERVICE PROCEDURE Follow this TPMS service procedure each time before and after servicing tires/wheels. 6.1. T EST SENSORS Following the instructions in the CHECK TPMS menu of your TPMS TOOL. Trigger each of the vehicle’s sensors, to ensure they work properly. -
Page 12: Troubleshooting
BH SENS DT41 – User Manual 6.4. T ROUBLESHOOTING If the TPMS TOOL is unable to trigger one or more of the sensors, please use the following troubleshooting guide: 1) The sensor itself may be damaged or defective. 3) Wrong make, model, year is selected. -
Page 13: Tpms Tool Usage
BH SENS DT41 – User Manual TPMS TOOL USAGE IMPORTANT: Vehicle specific information in this manual is used as an example and may not represent specific instructions each make and model may require. When performing various functions with the tool, it is important to refer to the on-screen prompts and/or repair manual information. -
Page 14: Select Year
BH SENS DT41 – User Manual 1.3. S ELECT YEAR 1.4. S ELECT NUMBER OF WHEELS AND SELECT TIRE This option does not appear for all vehicles. For example, this option is = continue used for vehicles with a TPMS sensor fitted on the spare wheel. -
Page 15: Test Sensors
BH SENS DT41 – User Manual 1.5. T ENSORS Left Front Press this button to read the sensor and press OK or use the arrow buttons to select next tire to read. Right Front Right Rear Left Rear Spare Wheel... -
Page 16: Select Car Manufacturer
BH SENS DT41 – User Manual 1.6. S TPMS ERVICE This menu has two main functions. One is to relearn the ID of the 4 sensors into the ECU. The other function aims at reading the spare part for all the sensors available by vehicle. -
Page 17: Reprogram Ecu Through Obd-Ii Port
BH SENS DT41 – User Manual 1.8. R OBD-II P EPROGRAM THROUGH Read all the sensors Plug OBD2 cable to the tool and to the vehicle. Note: this following screen message is displayed when all the sensors are triggered and the OBD2 cable is connected to the TPMS TOOL. -
Page 18: Part # Lookup
BH SENS DT41 – User Manual The data is successfully transferred to the ECU. The OBD2 cable can be unplugged from the ECU to the tool. 2. PART # LOOKUP This is a spare parts database which indicates all the sensors references available for each car. -
Page 19: Program Universal Sensor
BH SENS DT41 – User Manual 3. PROGRAM UNIVERSAL SENSOR Select the "PROGRAM SENSOR" function. = continue This section explains how to get a sensor ID in order to enter it in a universal sensor. If the "old" sensor can be read, use the COPY ORIGINAL SENSOR section to recover the ID. If it cannot be read, use the CREATE NEW SENSOR section to create a new ID. -
Page 20: Copy Id Function
BH SENS DT41 – User Manual 3.1. C FUNCTION = continue Use the keyboard to select “COPY ID” function. Press to trigger the original sensor Wait a few seconds. The ID of the old sensor is displayed. = continue UM-KJHU2-05-02... - Page 21 BH SENS DT41 – User Manual Hold the new programmable sensor Please wait near the device antenna. during the programming Press to upload process. data to the blank sensor The data has been successfully transferred to the sensor. UM-KJHU2-05-02 Page 20/41...
-
Page 22: Create New Sensor Function
BH SENS DT41 – User Manual 3.2. C REATE NEW SENSOR FUNCTION = continue Use the keyboard to select “CREATE NEW SENSOR” function Hold the new *It is also programmable sensor possible to near the device antenna. overwrite a programmable... -
Page 23: Copy Set Of Sensors Function
BH SENS DT41 – User Manual 3.1. C OPY SET OF SENSORS FUNCTION = continue Use the keyboard to select “COPY SET OF SENSORS” function Press to read the first sensor. Read all the sensors. Finish by pressing Use the keyboard to select the next wheel. -
Page 24: Retrieve Id Function
BH SENS DT41 – User Manual Wait a few seconds. Press The data has been successfully uploaded to the sensor. to continue. Press to program the Use the keyboard to select next sensor. the next wheel. 3.2. R ETRIEVE FUNCTION... - Page 25 BH SENS DT41 – User Manual Plug OBD2 cable to the tool and to the vehicle. Press when you are ready. You are ready to program the first sensor with the actual ID from the car. = continue Wait until the...
- Page 26 BH SENS DT41 – User Manual Press The data is successfully uploaded to the sensor. to program the next sensor. UM-KJHU2-05-02 Page 25/41...
-
Page 27: Recent Sensor Data
BH SENS DT41 – User Manual RECENT SENSOR DATA 1. RECENT SENSOR DATA When a new vehicle is triggered the result is automatically stored in the RECENT SENSOR DATA menu. You may recall the result and continue to trigger the entire vehicle. The data is automatically replaced if a new vehicle is triggered. -
Page 28: Rke Test
BH SENS DT41 – User Manual RKE TEST 1. RKE TEST This is to test the strength of the keyfob RF signal. = continue Select "RKE TEST" function. = previous 1.1. S ELECT ANUFACTURER = continue = previous 1.2. S... -
Page 29: Read Instructions
BH SENS DT41 – User Manual 1.3. R EAD INSTRUCTIONS To start a new test. Press and hold one of the keyfob buttons. = previous ➔ The device waits for RF signal. 1.4. T EST RESULTS PASS: High signal strength, green range. -
Page 30: Settings
BH SENS DT41 – User Manual SETTINGS 1. SETTINGS MENU Select "SETTINGS" menu. = continue = continue Scroll up and down to select function or settings, = previous press OK to select. Key functional descriptions: REGION: to select the area of work, AMERICA, EUROPE or CHINA. -
Page 31: Change Units Settings
BH SENS DT41 – User Manual 1.1. C HANGE NITS SETTINGS = continue Scroll up and down to = previous select function or settings. = continue Scroll up and down to = previous select the units. 1.2. C HANGE ORMAT SETTINGS... -
Page 32: Change Buzzer On Settings
BH SENS DT41 – User Manual AUTO: display sensor ID format in the way sensor is transmitting. DECIMAL: force to display sensor ID in decimal (0 to 9). HEXADECIMAL: force to display sensor ID in hexadecimal (0 to F). NOTE: Some OE sensors manufacturers print sensor ID at housing in decimal format. In this case, you can easily set your tool to display IDs in decimal format to verify the reading done with the TPMS tool. -
Page 33: Change Zone Settings
BH SENS DT41 – User Manual The selection turns red. = continue Scroll up and down to set Change from 60 min (maximum) to DISABLED (never). 1.5. C HANGE ONE SETTINGS Scroll up and down to select the zone menu. -
Page 34: About
BH SENS DT41 – User Manual ABOUT 1. ABOUT MENU This menu displays the current version and information about the device. Select the "ABOUT" menu. = continue UM-KJHU2-05-02 Page 33/41... -
Page 35: Language
BH SENS DT41 – User Manual LANGUAGE 1. LANGUAGE MENU Select the "LANGUAGE" menu. = continue Scroll up and down to select the language. The tool will load the new selected language. UM-KJHU2-05-02 Page 34/41... -
Page 36: Miscellaneous
BH SENS DT41 – User Manual MISCELLANEOUS 1. CHARGE Low Battery Indication Battery indicator status: Your TPMS TOOL incorporates a low battery detection circuit. Battery life is an average of 300 sensor tests per battery 100% charge (approximately 60 to 80 vehicles) -
Page 37: Tool Update
BH SENS DT41 – User Manual 2. TOOL UPDATE Updating the TPMS TOOL When a new protocol becomes available, it is necessary to update your tool. Please follow the steps below: IMPORTANT: Temporarily turn off all anti-virus and spam blocking software on your computer. -
Page 38: Limited Hardware Warranty
BH SENS DT41 – User Manual in the documentation accompanying your 3. LIMITED HARDWARE WARRANTY product and on the web at www.intellisens.com BH SENS Limited Hardware Warranty Limitation of Liability BH SENS warrants to the original purchaser BH SENS SHALL NOT BE LIABLE FOR ANY... - Page 39 BH SENS DT41 – User Manual SENS manufacturer and supplied with the Operating environment device. Remember to follow any special current regulations any area, and always switch off The tool must be returned to the factory for your device when its use is prohibited or when battery replacement.
-
Page 40: Manufacturer
BH SENS DT41 – User Manual To prevent leakage or other hazards, do not radio frequency energy and, if not installed store batteries above 60°C (140°F). Never and used in accordance with the instructions, leave the battery inside a car (for example) -
Page 41: Recycling
BH SENS DT41 – User Manual BS EN 62479:2010: restrictions related human exposure electromagnetic fields (10 MHz to 300 GHz). Assessment of the compliance of low power electronic and electrical equipment with the basic 8. RECYCLING Do not dispose of the rechargeable Lithium-polymer battery or the tool and/or its accessories in the general waste. -
Page 42: Index
BH SENS DT41 – User Manual INDEX About ..........33 Part lookup ......... 17 Auto off ..........32 Power supply ........38 Battery ..........38 Recent sensor data ......26 Buzzer ..........31 Recycling ........39, 40 Retrieve ID .......... 24 Caution ........... - Page 43 This document is the exclusive property of BH SENS. It may not be communicated, reproduced or used without prior consent.
