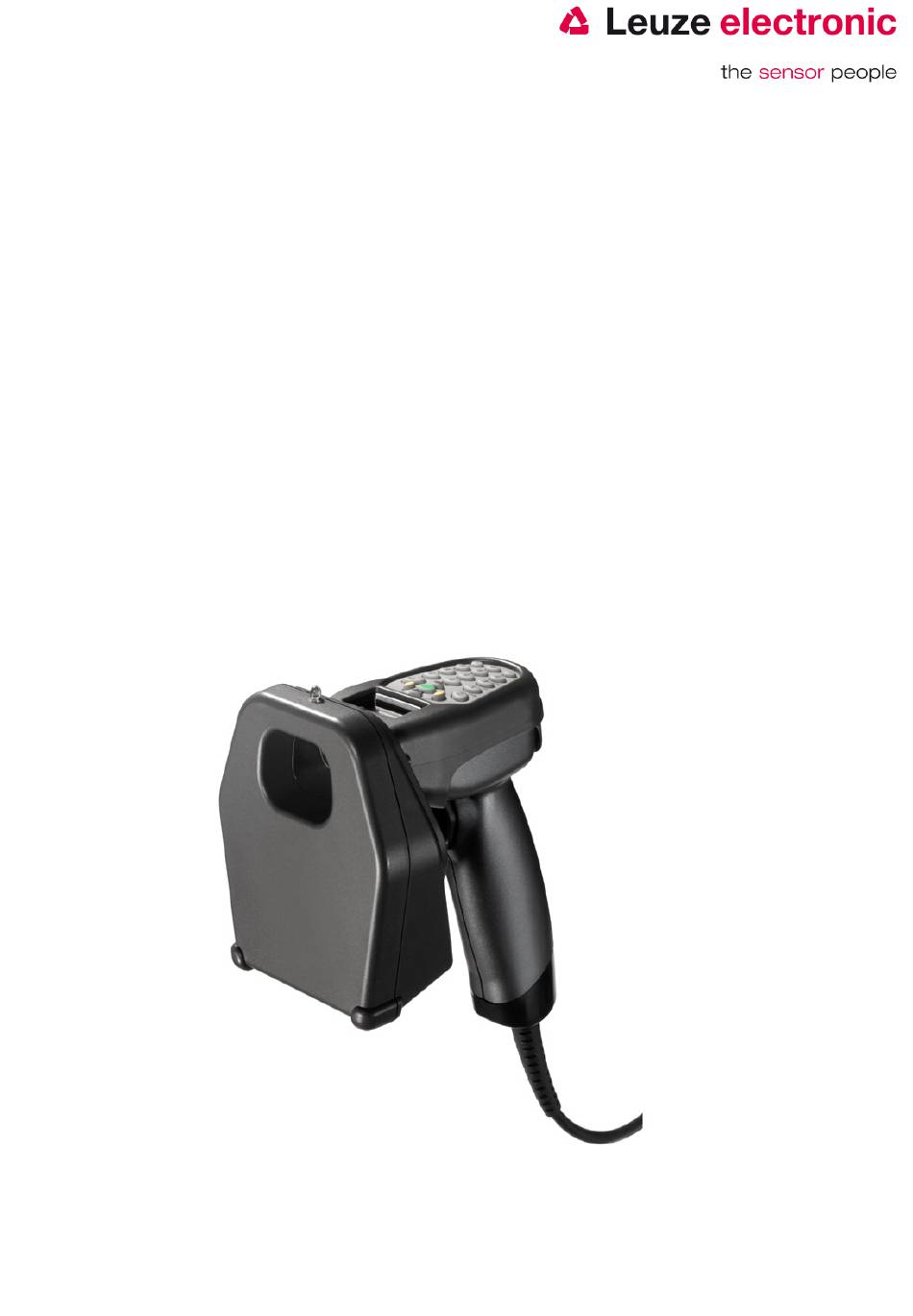

- Page 1 HFM 3500D combined mobile RFID- and Barcode- hand held reader with cable connection Short Description Version V 2.0...
-
Page 2: Table Of Contents
Note This document is just for information about how to use the mobile combi device HFM 3500D from Leuze electronic. All important details about the functionality and the handling were described further on. In addition the typical connections together with the modular interfacing units (MA) are in this manual, too. -
Page 3: Delivery Contents
ROFIBUS RT I/O..........................22 ONNECTION TO ROFI TCP/IP ........................... 22 ONNECTION TO THERNET Delivery contents HFM 3500D 1. Mobile combi RFID + Barcode-Hand held reader 2. RS232-spiral cable, length 4m 3. Bypack paper Short description HFM 3500D Leuze electronic Page... -
Page 4: Safety Notices
Rooms with explosive athmosphere Operation for medical purposes Areas of application The combined mobile devices HFM 35x0D are designed for the following areas of application: Storage and conveying technologies for manual object identification Manual commissioning areas Short description HFM 3500D Leuze electronic Page... -
Page 5: Working Safely
2 lasers. The scanner window is the only aperture through which laser light may be observed on this product. The laser is activated after pressing the trigger button. Short description HFM 3500D Leuze electronic... -
Page 6: Installation
5. With the black marked keys the function is selected and with the yellow marked key activated. Settings for data output, code types etc. can be set in the ‚system‘ area (right yellow key). Short description HFM 3500D Leuze electronic... -
Page 7: How Is The Best Way To Scan Or Read
The antenna of the device should cover over 70%.of the tag to have good conditions for reading it. The read characteristics are printed further on Test barcode The printed code is to test the functionality of the scanner, module(bar) width is 0.5 mm (20 mil) Code 39 Bar Code Sample Short description HFM 3500D Leuze electronic Page... -
Page 8: Technical Data
4m Environmental Data Valid Standards EN 301489-3 EN 300220-1 EN 302208-1 IEEE 802.15.1 Laser Class 2 IEC 60825-1 Protection class IP54 Temperature (operation) -20 to 50 °C (storage) -20 to 50° C Short description HFM 3500D Leuze electronic Page... -
Page 9: Read Characteristics
Codabar, Code 93*, Chinese 2/5, Codablock F*, ITF-6, ITF-14, No of digits: range 1-255 Modul: recommended 0.2 to 1.0mm Working area RFID Antenna TFM03 TFM05 TFM08 25mm distance Readable Transponder-Types I-Code SLI, TAG It-HFI out of ISO15693, Short description HFM 3500D Leuze electronic Page... -
Page 10: Using The Hfm 3500D
Using the HFM 3500D Keys for operation Function ON/OFF/ACK Switching Device On / Off, Acknowledge parameter settings <7> yellow pick / select pick / select menu /function < > black arroys Movement between Menu parts cancel Cancel / Back 0-9/ABC... - Page 11 (fix) with the quantity split by the separator. Note: all commands and data should be put directly together in line with out any gap, just gathered by the Telegram prefix / suffix. Short description HFM 3500D Leuze electronic...
-
Page 12: Device Reset / Factory Default
Note: All individual settings are lost then!!! Parameter Setting All parameters are available and can be set via key board in different sub menus within the system menu. No separate or special software tool is needed. Short description HFM 3500D Leuze electronic Page... -
Page 13: Telegram- / Command Structure
Telegram- / command structure The factory preset is similar to other RFID- devices from Leuze electronic. The Standard telegram structure with 9600Bd, 8Databits , N,1 is: Command CR LF ASCII-character 0Dh 0Ah With this device type the protocol frame / data frame[STX..CRLF] and Baudrate is setable. -
Page 14: Menu Structure
Type in Telegram-Start character Data output PREfix Type in Telegram-End character SUFfix Select ASCII / HEX Data format Select ALL (compl. Telegram (RFID!)) Data only Data output OFF (no Data output via interface) Short description HFM 3500D Leuze electronic Page... - Page 15 Activation of Messages etc. (select with green key) Send ON/OFF for Send via Interface NO Read ON/OFF for Send NORead Message ON /OFF Input line Quantiy Use Qty Set separator between code and quantity Qty separator Short description HFM 3500D Leuze electronic Page...
- Page 16 Set contrast and orientation of display Sound Set Bieper volume, key click Power shows Voltage, select auto power off Version shows Version of Hardware / Firmware select sets device to factry defaults Reset Device Short description HFM 3500D Leuze electronic Page...
-
Page 17: Hfm 3500D At The Serial Pc-Interface
HFM 3500D at the serial PC-Interface With power supply via PIN 9 via RS232-cable necessary parts: 50110552 HFM3500D, incl. RS232-cable Pinning of the 9 Pol- D-Sub (female) PIN-No Signal Description Transmit Data (-5 to +5V) Receive Data (-5 to +5V) -
Page 18: Hfm 3500D With Ma 204 I , Ma208 I Or Ma248 I
HFM 3500D with MA 2xxi (e.g. MA204i, MA208i or MA248i) RS 232 with 9600 Baud, 8 Databits, 1 Stoppbit, No Parity, Postfixes CR/LF. Necessary parts: 50110552 HFM 3500D, incl. RS232-cable 50113397 KB JST-HS-300, 5VDC at PIN9 50112891 MA 248i for... -
Page 19: Hfm 3500D With Usb (Com-Port-Emulation)
HFM 3500D with USB (COM-Port-Emulation) To use the HFM 35xxD with USB you use the standard RS232 cable from the Base Hx520 and connect the USB Converter cable. The Data is sent to the new COM-Port. The necessary driver is available on www.leuze.de. -
Page 20: Diagnostics And Trouble Shooting
7. RFID: Please check the settings for RFID and check the transponder type with your supplier. If the settings are correct the transponder can be defect as well- try another one if possible. 8. Now you checked most possibilities. For further support please contact the Leuze Service. Short description HFM 3500D Leuze electronic... -
Page 21: Type Overview
Type overview HFM 35xx – Series Art-No. Description Interface Picture HFM 3500D, incl. cable 50110552 TTL RS232 Accessories Accessories for HFM 35xx -Series Art-No. Discription Picture NT Hx5x0, external Power supply for HFM/HFU, 50103403 Base Hx520 for RS 232 cable... - Page 22 KB JST-HS-300 connection cable MA 2xxi and 9 pin Sub-D, 5Volt via PIN9, 300mm long • Art-Nr. 50113397 Leuze electronic GmbH+Co.KG Postfach 1111 In der Braike 1 D-73277 Owen / Teck Tel +49 (07021) 573-0 Fax +49 (07021) 573199 E-mail: info@leuze.de State 02/2012 http://www.leuze.de Document TD_HFM3500D_en_50229338 Short description HFM 3500D Leuze electronic Page...
