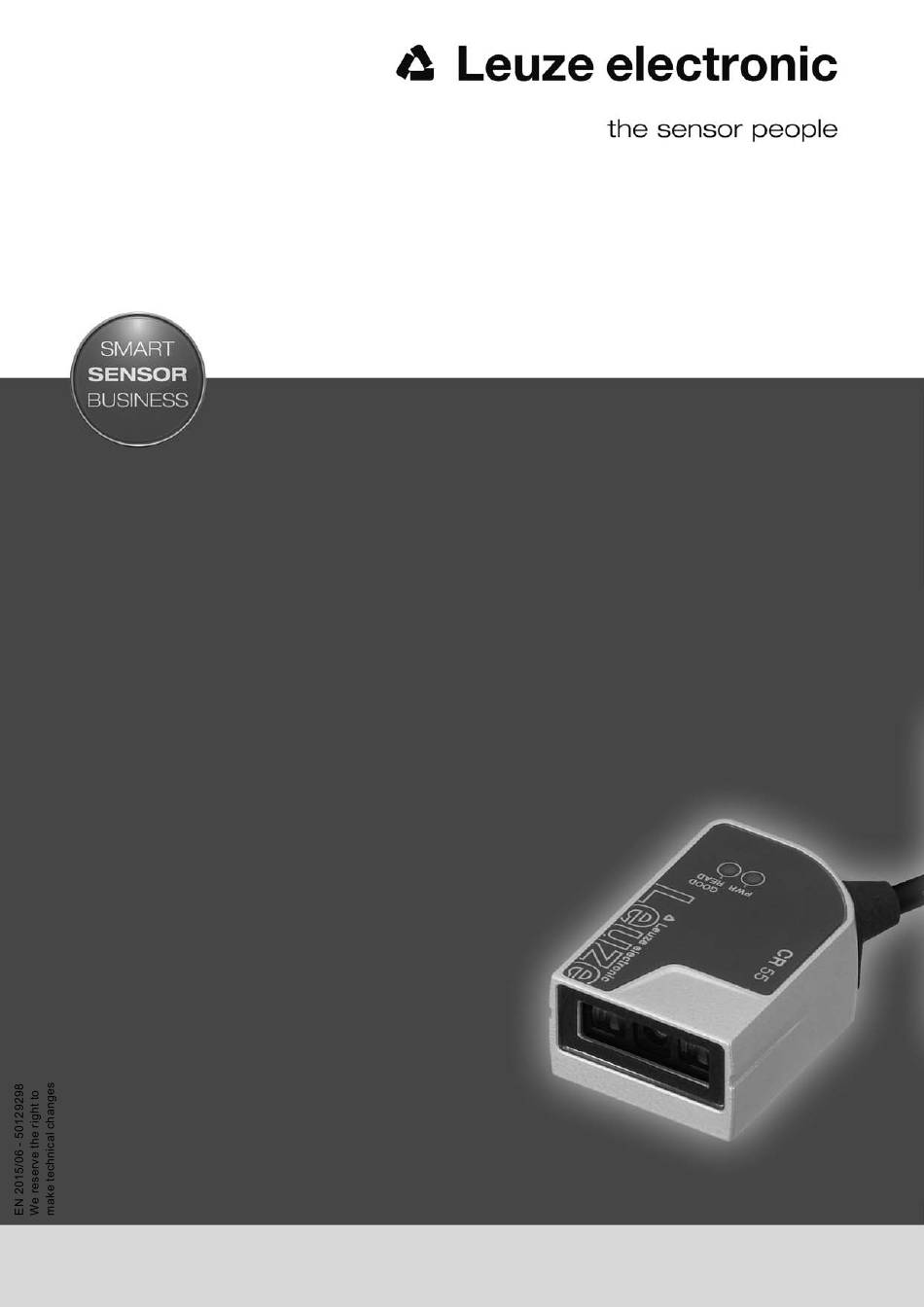

- Page 1 CR 55 Bar Code Reader O r i g i n a l o p e r a t i n g i n s t r u c t i o n s...
- Page 2 © 2015 Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen / Germany Phone: +49 7021 573-0 Fax: +49 7021 573-199 http://www.leuze.com info@leuze.de Leuze electronic CR 55...
-
Page 3: Table Of Contents
Setting the communication parameters ........22 Leuze electronic... - Page 4 14.1 Bar code samples ............34 Leuze electronic...
-
Page 5: About This Document
Software frame for management of device managers (DTM) (Field Device Tool) Functional earth Graphical User Interface Device class for input devices with which users directly interact (Human Interface Device) IO or I/O Input/Output Light Emitting Diode Programmable Logic Control Leuze electronic CR 55... -
Page 6: Safety
The device must not be tampered with and must not be changed in any way. The device must not be opened. There are no user-serviceable parts inside. Repairs must only be performed by Leuze electronic GmbH + Co. KG. Competent persons Connection, mounting, commissioning and adjustment of the device must only be carried out by competent persons. -
Page 7: Disclaimer
Safety Disclaimer Leuze electronic GmbH + Co. KG is not liable in the following cases: • The device is not being used properly. • Reasonably foreseeable misuse is not taken into account. • Mounting and electrical connection are not properly performed. -
Page 8: Device Description

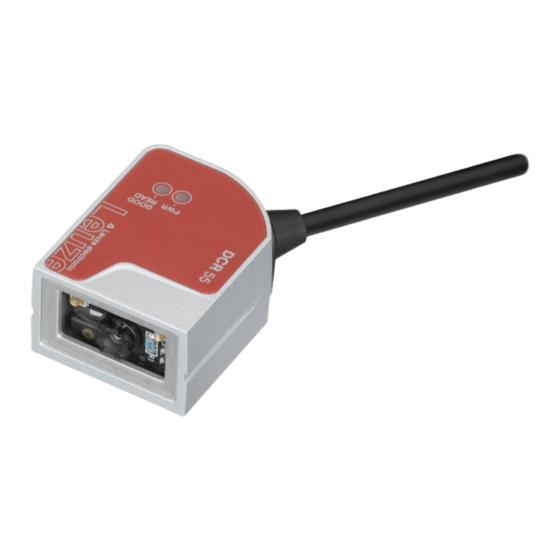

• RS 232 interface, one switching input, one switching output Device construction Reading window with front beam exit LED indicators Figure 3.1: Device construction of the CR 55 Connection technology • Cable connection • Alternative: customer-specific solutions Leuze electronic CR 55... -
Page 9: Display Elements
3.5.1 LED indicators Two LEDs on the top of the device indicate the device and read status: Table 3.1: LED indicators State Description ON (continuous Voltage supply OK light) GOOD READ ON (continuous Reading successful light) Leuze electronic CR 55... -
Page 10: Mounting
The bar code label must be rotated by > 10° to avoid a total reflection of the red light beam in the case of glossy labels. γ β α α Azimuth angle β Angle of inclination γ Angle of rotation Recommended angle of rotation: γ > 10° Figure 4.1: Definition of the reading angles Leuze electronic CR 55... -
Page 11: Electrical Connection
By means of the SW IN switching input connection, you can trigger a read process in the standard setting (low = active) with the connection SW IN (orange) and GND (violet). We recommend wiring a 2.2 kΩ “pull- up” resistor as defined cable termination; see figure 5.1. Leuze electronic CR 55... -
Page 12: Switching Output
• Connection via an MA-CR adapter circuit board To simplify the connection of the connection wires to the PC interface, an adapter circuit board (MA- CR) is available for implementing individual wire contacting to SUB-D, 9-pin; see chapter 12.2. Leuze electronic CR 55... -
Page 13: Cable Lengths And Shielding
The MA-CR adapter circuit board is intended only for laboratory and test purposes and is not to be used for industrial applications! Cable lengths and shielding The maximum cable length is 3 m. Should a cable extension be necessary, make certain that the cables of the RS 232 interface are shielded. Leuze electronic CR 55... -
Page 14: Configuration And Diagnostic Software - Sensor Studio
Configurations can be saved and reopened as projects for transferring back to the device at a later time. Sensor Studio Only use the configuration software for products manufactured by Leuze electronic. Sensor Studio configuration software is offered in the following languages: German, Eng- lish, French, Italian and Spanish. -
Page 15: Installing Sensor Studio Configuration Software
• An FDT frame is installed on the PC. LeAnalysisCollection.exe Start the file from the installation package and follow the instructions on the screen. The installation wizard installs communication DTM and device DTM for CR 55. Leuze electronic CR 55... -
Page 16: Connecting Bar Code Reader To Pc
The mode selection of the Project Wizard is displayed. Select the Device selection without communication connection (offline) configuration mode and click on [Next]. The Project Wizard displays the device selection list of the configurable devices. Leuze electronic CR 55... - Page 17 FDT frame, click on the [Establish connection with device] button ( Sensor Studio In the FDT frame, click on the [Upload parameters to device] button ( The current configuration data is displayed in the device manager (DTM). Leuze electronic CR 55...
-
Page 18: Exiting Sensor Studio
The device manager (DTM) for CR 55 bar code readers of the configuration software offers the following configuration functions: General • Decode • ; see chapter 6.5.2 Host Interface; • see chapter 6.5.3 Diagnosis • Change firmware (Maintenance) • ; see chapter 6.5.4 Leuze electronic CR 55... -
Page 19: General Tab
Setting for the length of time after which the read LED in presentation mode is switched off. Same Code Delay Length of time during which identical codes are output only once during multiple reading. Inverse Code Reading of inverse codes. General Settings Settings for the integrated buzzer. Leuze electronic CR 55... -
Page 20: Decode Tab
Alternatively, the property settings can be selected directly via the navigation tree under the [Decode] button. The properties can be individually set for each code type. Figure 6.5: Standard settings for the Properties window (Symbology Properties) – Decode tab Leuze electronic CR 55... -
Page 21: Host Interface Tab
Maintenance / software update Figure 6.7: Firmware reload With this tool, new firmware files can first be selected for the CR 50 or CR 55 bar code reader, then they can be loaded into the tool and subsequently executed. Leuze electronic CR 55... -
Page 22: Starting Up The Device - Configuration
Problems If a problem occurs that cannot be rectified even after checking all electrical connections and settings on the devices and on the host, contact your responsible Leuze electronic subsidiary or Leuze electronic customer service, see chapter 10. Setting the communication parameters You have now commissioned the bar code reader. -
Page 23: Service" Operating Mode
While the red light is switched on for approx. 1 s after power-up, the “Service” label is to be held up in front of the bar code reader at a suitable read distance. When the device is in “Service” mode, the status LED flashes. Leuze electronic CR 55... -
Page 24: Online Commands
Software reset Command ’H’ Description Carries out a software reset. The device is restarted and reinitialized, leaving it in the same state as when the supply voltage is switched on. Parameter Acknowledgment ’S’ (start signal) Leuze electronic CR 55... -
Page 25: Online Commands For System Control
Online commands Online commands for system control Activating sensor input Command ’+’ Description The command activates decoding. Parameter none Acknowledgment none Deactivating sensor input Command ’-’ Description The command deactivates decoding. Parameter none Acknowledgment none Leuze electronic CR 55... -
Page 26: Care, Maintenance And Disposal
Do not use aggressive cleaning agents such as thinner or acetone to clean the device. Servicing Repairs to the device must only be carried out by the manufacturer. For repairs, contact your responsible Leuze electronic subsidiary or Leuze electronic customer service (see chapter 10). Disposing ... -
Page 27: Service And Support
Monday to Friday 8.00 a.m. to 5.00 p.m. (UTC+1) E-mail: service.identify@leuze.de Return address for repairs: Service center Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen / Germany 10.1 What to do should servicing be required? NOTICE Please use this chapter as a master copy should servicing be required! ... -
Page 28: General Specifications
RS 232: fixed cable 2 m long, 6 x 0.081 mm (AWG 28) USB: fixed cable, 1.8 m long Weight 45 g (without cable) Dimensions (H x W x D) 18.3 x 31x 45.5 mm Housing metal, die-cast aluminum Leuze electronic CR 55... -
Page 29: Technical Data
5 mil (0.127 mm), Code 128 6.5 mil (0.165 mm), Code 128 8 mil (0.203 mm), Code 128 10 mil (0.254 mm), Code 128 20 mil (0.508 mm), Code 128 Figure 11.1: CR 55 read field Leuze electronic CR 55... -
Page 30: Dimensioned Drawings
Technical data 11.3 Dimensioned drawings all dimensions in mm Figure 11.2: Dimensioned drawing of CR 55 with front beam exit Leuze electronic CR 55... -
Page 31: Ordering Information And Accessories
Ordering information and accessories 12.1 Type overview Table 12.1: Part numbers Part no. Part designation Description 50126080 CR55M2/R2 CCD line scanner, RS 232 interface, fixed cable, 50127723 CR55M2/UB-1800-S6 CCD line scanner, USB interface, fixed cable, 1.8 m 12.2 Accessories Table 12.2: Accessories Part no. -
Page 32: Ec Declaration Of Conformity
EC Declaration of Conformity EC Declaration of Conformity The bar code readers of the CR 55 series have been developed and manufactured in accordance with the applicable European standards and directives. Leuze electronic CR 55... - Page 33 Figure 14.3: Code type 11: Codabar Module 0.3 Figure 14.4: Code 128 Module 0.3 Figure 14.5: Code type 08: EAN 128 SC 2 Figure 14.6: Code type 06: UPC-A SC 3 Figure 14.7: Code type 07: EAN 8 Leuze electronic CR 55...
-
Page 34: Appendix
Appendix SC 0 Figure 14.8: Code type 10: EAN 13 Add-on Leuze electronic CR 55...
