INSTALLING THE REFRIGERATOR (Cont.)
ANTI-TIP BRACKET
AT-3
INSTALLATION
A
WOOD Wall and Floor Construction:
• Drill the appropriate number of 1/8" (3 mm) pilot
holes in the center of each floor bracket hole being
used (a nail or awl may be used if a drill is not
available) AND remove the locator template from
the floor.
• Mount the anti-tip floor bracket by fastening the 2,
or recommended 4, #10-16 hex-head screws tight-
ly into place as illustrated in Figure 3.

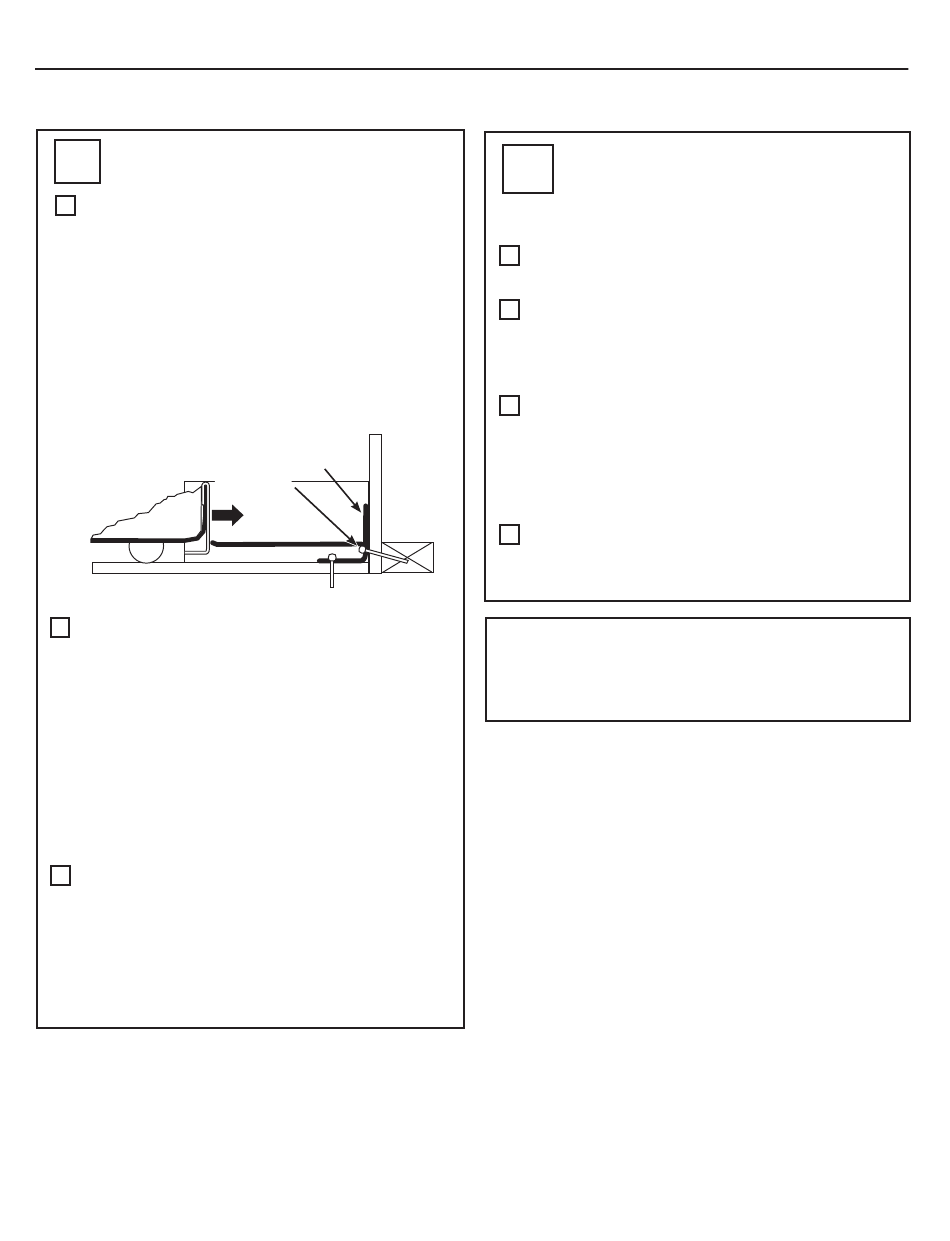

Figure 3 – Attachment to Wall and Floor
Rear RH Corner
of the Refrigerator
Floor
CONCRETE Wall and Floor Construction:
B
• Anchors required (not provided):
4 each 1/4" (6 mm) x 1-1/2" (38 mm) lag bolts 4
each 1/2" (12 mm) O.D. sleeve anchors
• Drill the recommended size holes for the anchors
into the concrete at the center of the holes marked
in Step 2.
• Install the sleeve anchors into the drilled holes.
Place the anti-tip floor bracket as indicated in Step 2.
Remove the locator template from the floor.
• Install the lag bolts through the anti-tip floor brack-
et and tighten appropriately.
C
WOOD Wall and TILE Floor Construction:
• For this special case, locate the 2 wall holes iden-
tified in Fig. 2. Drill an angled 1/8" (3 mm) pilot
hole (approx. as shown in Fig. 3) in the center of
each hole.
• Mount the anti-tip floor bracket using the Minimum
Acceptable Installation #1, as illustrated in Fig. 2.
14
Installation Instructions
Wall
2 Screws
Floor
Must Enter
Bracket
Wood or
Metal Stud
Wall
Plate
Stud
Anti-Tip Floor Bracket Installation
POSITIONING THE
AT-4
REFRIGERATOR TO ENGAGE
THE ANTI-TIP FLOOR AND
BASE BRACKETS
Before pushing the refrigerator into the opening,
A
plug the power cord into the receptacle and con-
nect waterline (if equipped). Check for leaks.
B
Locate the refrigerator's RH side and move back
approximately in line with the RH side of the cab-
inet opening, W. This should position the anti-tip
floor bracket to engage the anti-tip base bracket
on the refrigerator.
Gently roll the refrigerator back into the cabinet
C
opening until it comes to a complete stop. Check to
see if the refrigerator front lines up with the cabinet
front face. If not, carefully rock the refrigerator for-
ward and backward until engagement occurs and
you notice that the refrigerator is fully pushed up
against the rear wall.
If Applicable: Adjust the rear (and front) wheel
D
height settings to fully engage the rear anti-tip
brackets, while also aligning the refrigerator front
with the cabinet front face.
NOTE: If you pull the refrigerator out and away
from the wall for any reason, make sure the anti-
tip floor bracket is engaged when the refrigerator
is pushed back against the rear wall.
