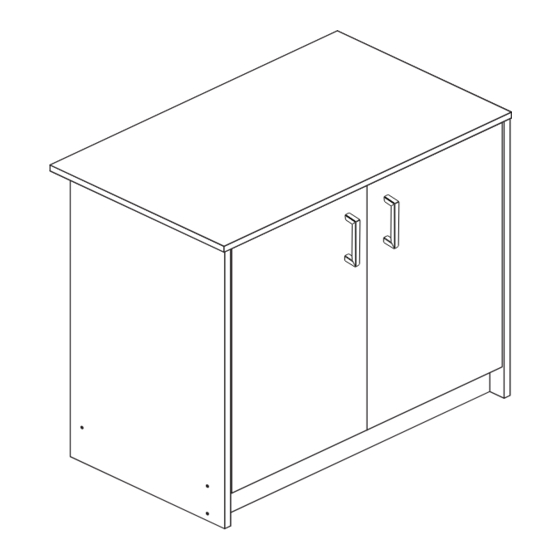

Caspian - 2 Door Cupboard
Assembly Instructions -
Dimensions
Width - 73.5cm
Depth - 44.5cm
Height - 72cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
365/6499
339/9426
MADE IN
BRITAIN
Issue 4 - 27/10/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Caspian 365/6499
Summary of Contents for Argos Caspian 365/6499
- Page 1 Caspian - 2 Door Cupboard Assembly Instructions - 365/6499 Please keep for future reference 339/9426 Dimensions Width - 73.5cm Depth - 44.5cm MADE IN Height - 72cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 4 - 27/10/14...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 21kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side Door (D1193A) (D1194A) (D1172A) (706 x 394mm) (706 x 394mm) (623 x 345mm) Base...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare left side Fit 2 hinge plates onto the left side , making sure that the slot is facing towards the finished front edge.
- Page 6 Assembly Instructions Step 3 Join the right side and base Attach the base the right side using 2 screws p l a i n c h i p a r d s u r Finished f a c front edge Finished front edge Step 4...
- Page 7 Assembly Instructions Step 6 Join the left side and base Attach the left side the base and plinth using 3 screws Finished front edge Step 7 Prepare the top Screw 4 metal dowels into the top Note: Tighten the metal dowels up fully against the panels.
- Page 8 Assembly Instructions Step 8 Fit top Push the top onto the side panels Use a screwdriver to tighten the 4 large locking nuts fitted to the inside of the side panels Note: Turn the large locking nuts as far as they will go - more than 1/2 a turn.
- Page 9 Assembly Instructions Step 10 Make sure that the plastic sleeve is fully pushed Fit the shelf onto the shelf stud. Insert 4 shelf studs the required height. Lower the shelf down onto the shelf studs Step 11 Prepare the doors Push fit 2 hinges into each of the doors...
- Page 10 Assembly Instructions Step 12 IMPORTANT Prepare the 2 doors Carefully choose which 2 holes you will need to drill Important: Please follow these instructions carefully. Lay the doors down ONLY drill these 2 This will be onto a smooth surface. holes in ONE door the left door Important: Carefully...
- Page 11 Assembly Instructions Step 13 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinge. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 12 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3100...
