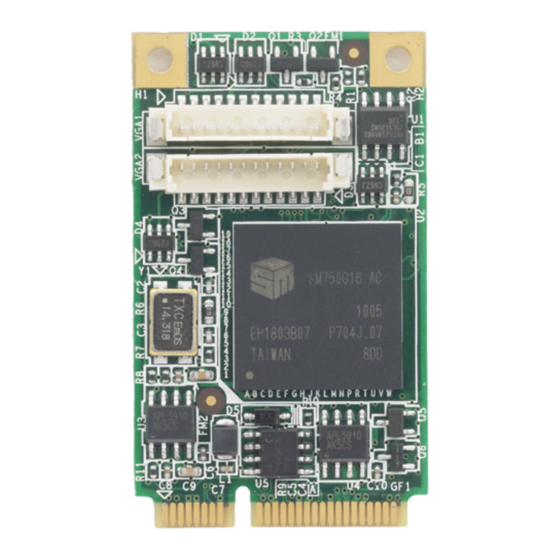

PCA-5650 Dual VGA Output Mini PCI Express
Graphic Card for Multimedia Applications
Startup Manual

Packing List

Before you begin installing your card, please make sure that
the following items have been shipped:
• 1 PCA-5650 Dual VGA Output Mini PCI Express Graphic
Card
• 1 PCA-5650 Start up Manual
• 1 CD with driver
• 1 Dual VGA cable kit
• Warranty card
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.

Specifications

Standard Functions
• GPU: Silicon Motion SM750
• Bus: PCI Express x1 500 MB
• Memory: 32 bit, 166 MHz, 16 MB DDR SDRAM
• CRT1/CRT2 output: supports display resolution up to
1920 x 1080 and supports vertical refresh rate up to 75
Hz
• Dual display mode: CRT+CRT, supports single, clone
and dual mode
• O.S. support: Windows 7, Windows XP, Windows Server
2003, Windows Server 2008
Mechanical
• Dimensions: 64.3 mm x 67.3 mm
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit
our support website at:
http://www.advantech.com.tw/support
This manual is for the PCA-5650 series.
Part No. 2002565000
Printed in China
P/N:1700018579
1st Edition
April 2011

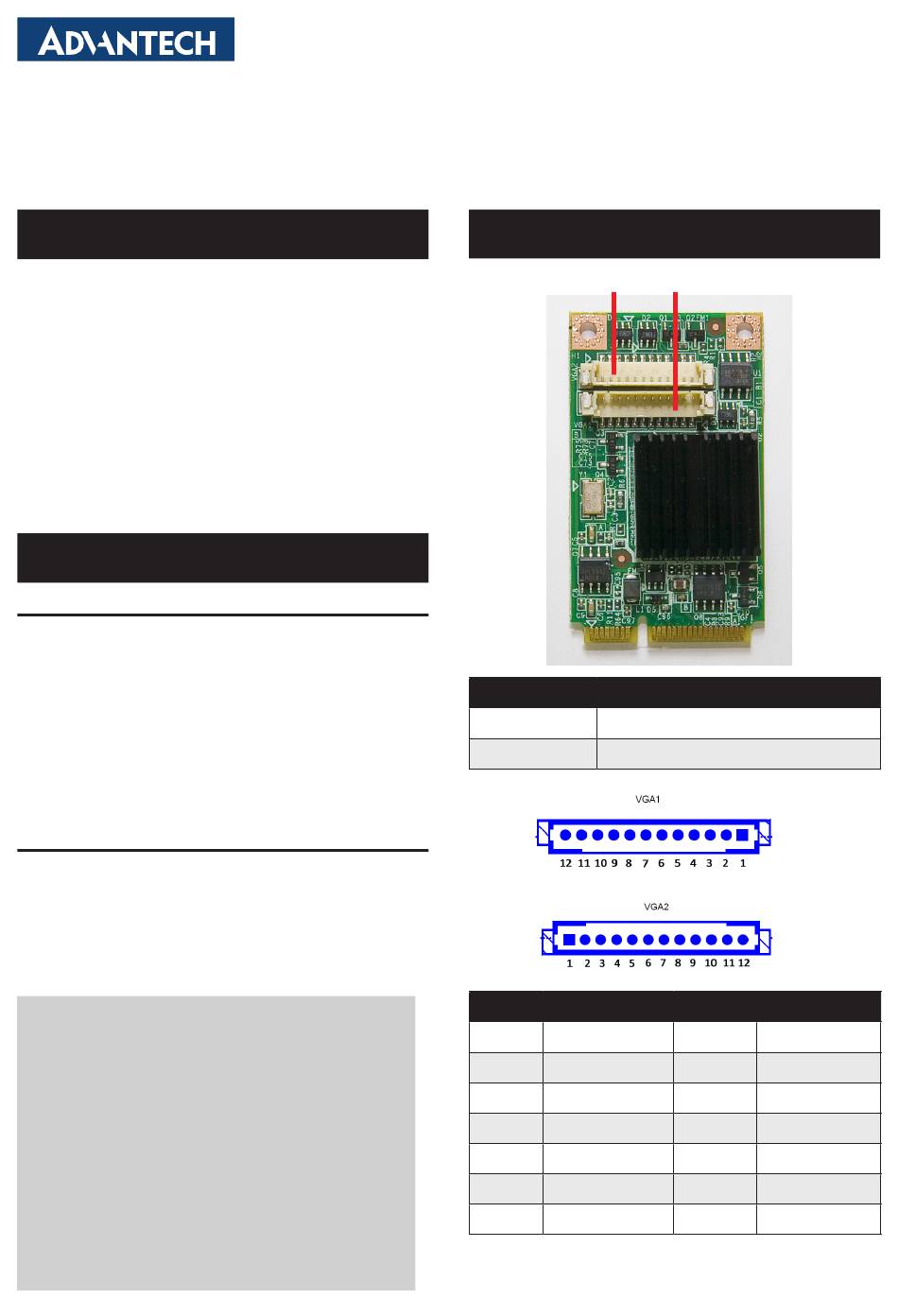

Connectors

VGA2
Connectors
Label
Function
VGA1/VGA2
12 pin VGA connector by pin header
VGA1/VGA2
Pin
Signal
1
GND
3
CRT_G
5
GND
7
CRT_SDA
9
GND
11
CRTVS
PCA-5650 Startup Manual 1
VGA1
Pin
Signal
2
CRT_R
4
CRT_B
6
N/A
8
CRT_SCL
10
CRTHS
12
GND
