STEP 10
Take the transmission belt located in the
BOX 1 of the Layer D.

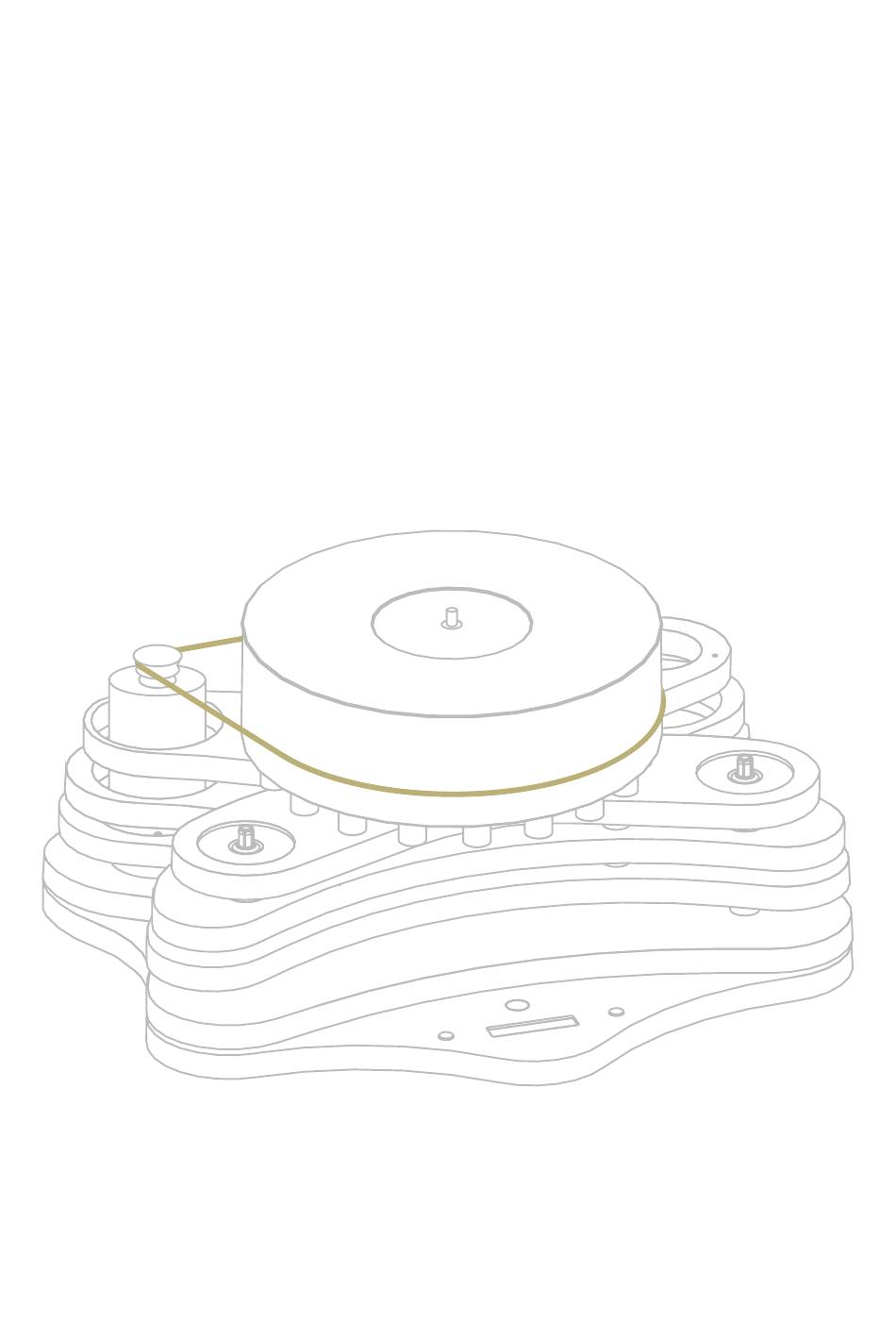

Wrap the belt around the pulley first and
then around the platter as shown in the
picture. The belt must be positioned on the
lower platter, close to the counterweights
and horizontally aligned with the pulley.
19
