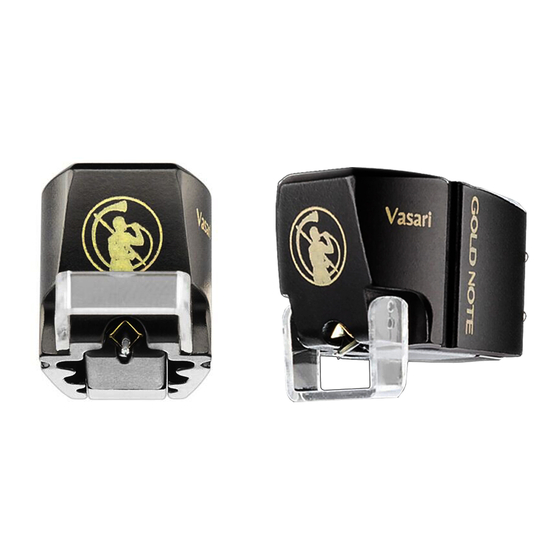

THANK YOU FOR PURCHASING THE
VASARI STEREO CARTRIDGE.
PACKAGE CONTENT
|
Cartridge body
|
Set of head-shell fixing 2,5mm screws
(non-magnetic)
|
2mm Allen Wrench
|
User Manual
VASARI GOLD
MM Phono Cartridge
Output level
4mV
Frequency response
15 - 25000Hz
Impedance
1000Ω
Compliance
10×10-6cm/dyne
Channel separation
>22dB
Channel balance
<2dB
Cantilever
Aluminium
VASARI RED
MM Phono Cartridge
Output level
4mV
Frequency response
15 - 25000Hz
Impedance
1000Ω
Compliance
10×10-6cm/dyne
Channel separation
>20dB
Channel balance
<2dB
Cantilever
Aluminium
Diamond
Elliptical
Diamond size
7.5×15.5µm
Coil Wire
Copper
Magnet
Alnico
Hole-diamond distance
9mm
Total weight
9.5g
Inductance
500mH
Diamond
Conical
Diamond size
15.5µm
Coil Wire
Copper
Magnet
Alnico
Hole-diamond distance
9mm
Total weight
7g
Inductance
500mH
BEFORE USING
1 The stylus is very delicate and applying excessive
force to the stylus, such as finger pressure, can
result in damages. Handle the cartridge with the
utmost care.
2 A powerful magnet is used in the cartridge.
Operating steel/magnetic tools or similar items
near the cartridge will exert a force on the
magnet and may result in damages to the stylus
and the cartridge.
VASARI
The Vasari Series represents quality and technology,
another step on our quest to design instruments of audio
reproduction that we love ourselves and use every day
at home in our own audio system. The innovative and
beautiful design of the Vasari benefits from 25 years of
experience in engineering High-End audio components.
Designed with computer modelling, the Vasari Series
achieves the peak performance of the MM technology.
The high-damping structure, made of superior quality
materials, and the ultra-rigid cantilever in Aluminium
make the Vasari a superb tracker, a characteristic that
allows our custom diamond stylus to extract all the
information from the vinyl groove so that your system
can perfectly recreate the musical event in all its details
and complexity.
The Vasari is available in two models, Gold and Red.
The Vasari Gold features a Duralumin body and an
elliptical diamond tip. The Vasari Red features a special
ultra-dampening Photopolymer Resin body that is 3D
printed and a conical diamond tip. With both models
delivering an output level of 4mV, they are the ideal
cartridges for our Valore 425 Plus and Lite turntables
thanks to their lightweight bodies.
Completing our range of cartridges, the Vasari Series is
the best MM design we have ever made, offering a new
and engaging musical experience.
