FX2000 User's Manual
Trademark Information
is a registered trademark of OBDSPACE TECHNOLOGY CO., LTD.
(ANCEL)in China and other countries. All other ANCEL trademarks, service
marks, domain names, logos and company names referred to in this manual are
either trademarks, registered trademarks, service marks, domain names, logos
EN
and company names of or are otherwise the property of ANCEL or its affiliates.
In countries where any of the ANCEL trademarks, service marks, domain
names, logos and company names are not registered, ANCEL claims other
rights associated with unregistered trademarks, service marks, domain names,
logos and company names. Other products or company names referred to in
this manual may be trademarks of their respective owners. You may not use any
trademark, service mark, domain name, logo, or company name of ANCEL or
any third party without permission from the owner of the applicable trademark,
service mark, domain name, logo, or company name. You may contact ANCEL
at www.anceldirect.com, or write to OBDSPACE TECHNOLOGY CO., LTD.,
Runfeng Office, Longhua District, Shenzhen, Guangdong, 518000, P. R. China,
to request written permission to use Materials on this manual for purposes or for
all other questions relating to this manual.
Copyright Information
Copyright © 2019 by OBDSPACE TECHNOLOGY CO., LTD. All rights reserved.
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical, photocopying
and recording or otherwise, without the prior written permission of ANCEL. The
information contained herein is designed only for the use of this unit. ANCEL is
not responsible for any use of this information as applied to other units.
i
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ANCEL FX2000
Summary of Contents for ANCEL FX2000
- Page 1 ANCEL or its affiliates. In countries where any of the ANCEL trademarks, service marks, domain...
- Page 2 The right is reserved to make change at any time without notice. • Neither ANCEL nor its affiliates shall be liable to the purchaser of this unit or third parties for damages, losses, costs or expenses incurred by purchaser...
- Page 3 • Don’t connect or disconnect any test equipment while the ignition is on or the engine is running. • Keep the FX2000 dry, clean, free from oil/water or grease. Use a mild detergent on a clean cloth to clean the outside of the FX2000, when...
-
Page 4: Table Of Contents
2.3 Location of the Data Link Connector (DLC)............2 2.4 OBD II Readiness Monitors...................3 2.5 OBD II Monitor Readiness Status.................4 2.6 OBD II Definitions....................4 3. Product Descriptions..................... 6 3.1 Outline of FX2000....................6 3.2 Specifications......................7 3.3 Accessories Included....................7 4. Connection....................... 8 4.1 Install memory card....................8 4.2 Connect FX20000.................... -
Page 5: Introduction
OBD II test for a complete diagnosis. Featuring the 3.5” TFT color display, it enables users to read/clear DTCs, record, save and playback data in live graphic display. The FX2000 Series are also very easy to use. With built-in help menus and code definitions, diagnosing and repairing that dreaded Check Engine Light is now easier than ever! Moreover, FX2000 also feature the following bi-directional “special tests”: EVAP,... -
Page 6: Diagnostic Trouble Codes (Dtcs)
FX2000 User's Manual computer diagnostic system in response to a problem found in the vehicle. These codes identify a particular problem area and are intended to provide you with a guide as to where a fault might be occurring within a vehicle. OBD II Diagnostic Trouble Codes consist of a five-digit alphanumeric code. -
Page 7: Obd Ii Readiness Monitors
FX2000 User's Manual telling location. For some Asian and European vehicles, the DLC is located behind the ashtray and the ashtray must be removed to access the connector. If the DLC cannot be found, refer to the vehicle’s service manual for the location. -
Page 8: Obd Ii Monitor Readiness Status
FX2000 User's Manual and engine system components require the vehicle to be operated under specific conditions before the monitor is ready. These monitors are termed non- continuous monitors and are listed below: 1) EGR System 2) O2 Sensors 3) Catalyst... - Page 9 FX2000 User's Manual Soon, Check Engine) is a term used for the light on the instrument panel. It is to alert the driver and/or the repair technician that there is a problem with one or more of vehicle’s systems and may cause emissions to exceed federal standards.
-
Page 10: Product Descriptions

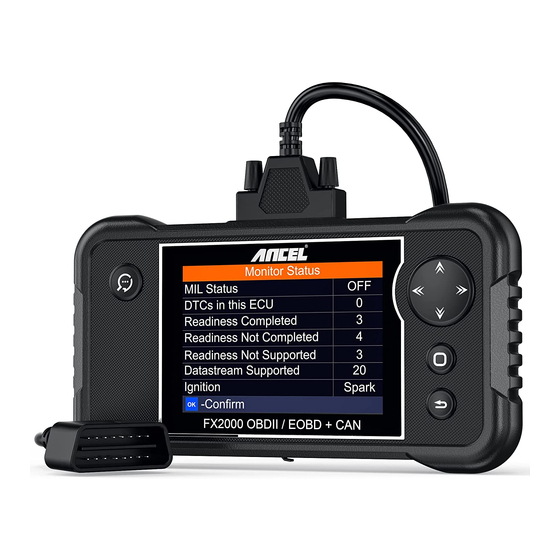

FX2000 User's Manual 3. Product Descriptions 3.1 Outline of FX2000 Figure 3-1 FX2000 Front View Name Descriptions OBD-16 To connect to vehicle's DLC (Data Link Connector) connector via diagnostic cable. DTC button To retrieve the DTCs in the database. Indicates test results. -
Page 11: Specifications
FX2000 User's Manual Up/Down Move cursor up and down for selection. Move cursor left or right for selection; Or turn page Left/Right up and down when more than one page is displayed. Confirms a selection (or action) from a menu list. -
Page 12: Connection
4.1 Install memory card 1) Take out the memory card from package box. 2) Insert the memory card into the FX2000 memory card slot perpendicularly. Make sure is fully inserted in the right place with the “micro” label facing upward. -
Page 13: Settings
FX2000 User's Manual CAUTION: Don’t connect or disconnect any test equipment with ignition on or engine running. 4.3 Settings Select [Settings] in the main menu and press [OK], the system will enter the following screen: Figure 4-2 Language This option enables you to set the user interface language. -
Page 14: Diagnose
FX2000 User's Manual 5. Diagnose Select [Diagnose] in Main Menu and press [OK], the screen will display Monitor Status interface as following figure 5-1: Figure 5-1 5.1 OBDII/EOBD Diagnosing This option presents a quick way to check for DTCs, isolate the cause of the... - Page 15 FX2000 User's Manual Figure 5-4 It mainly includes the following functions: Follow the on-screen instructions to check the possible cause and retry it. Read Codes This option is used to identify which section of the emission control system has malfunctioned.
- Page 16 The EVAP test function lets you initiate a leak test for the vehicle’s EVAP system. The FX2000 does not perform the leak test, but signals to vehicle’s on-board computer to initiate the test. Before using the system test function, refer to the vehicle’s service repair manual to determine the procedures necessary to stop...
-
Page 17: System Diagnosing
Notes: • Before diagnosing, please make sure the diagnostic program corresponding to certain vehicle model has been installed on your FX2000. • For vehicles manufactured by different vendors, it is possible that it has different diagnostic menus. For details, please follow the instructions on the screen to proceed. -
Page 18: Review
FX2000 User's Manual 5.3 Review This function is used to review or delete the recorded DTC, Data Streams and Freeze Frame. -
Page 19: Help
FX2000 User's Manual 6. Help This menu enables you to view device information and OBD introduction. In main menu, select [Help] and press [OK] to enter Figure 6-1. Figure 6-1 6.1 DLC Location Information This option helps you to find the location of the vehicle’s DLC. -
Page 20: Abbreviation
FX2000 User's Manual 6.3 Abbreviation This option allows you to view the full name and detailed explanation of the automotive glossary abbreviations. 6.4 Tool Information In Figure 6-1, select [Tool Information] and press [OK] to view the related information of FX2000. -
Page 21: Register & Update
There are 2 methods available: via memory card or via USB cable. Here we take memory card for example to demonstrate how to update your tool: 1. Go to http://www.anceldirect.com and click “Download” --> “FX2000”, then click updating icon. 2. Download and install the update tool and launch the program when installed. - Page 22 FX2000 User's Manual [OK] button. (Figure 7-3) Figure 7-3 7. Select [Tool Information], press [OK]. (Figure 7-4) Figure 7-4 8. This is the Register Code number for inputting into step 4 (Figure 7-5).
- Page 23 9. Install the memory card from the tool into the supplied card adapter and insert into USB port of CPU. 10.Reopen the FX2000 update Suite and select the updates you would like to perform or click [Select All] and click [Download]. (Figure 7-6)
- Page 24 FX2000 User's Manual...
-
Page 25: Faq
Here we list some frequently asked questions and answers relating to FX2000. Question: System halts when reading data stream. What is the reason? Answer: It may be caused by a slackened connector. Please turn off the FX2000, firmly connect the connector, and switch it on again. - Page 26 The exclusive remedy for any automotive meter found to be defective is repair or replacement, and ANCEL shall not be liable for any consequential or incidental damages.
- Page 27 Statement: ANCEL reserves the rights to make any change to product designs and specifications without notice. The actual object may differ a little from the descriptions in the manual in physical appearance, color and configuration. We have tried our best to make the descriptions and illustrations in the manual as...
Need help?
Do you have a question about the FX2000 and is the answer not in the manual?
Questions and answers

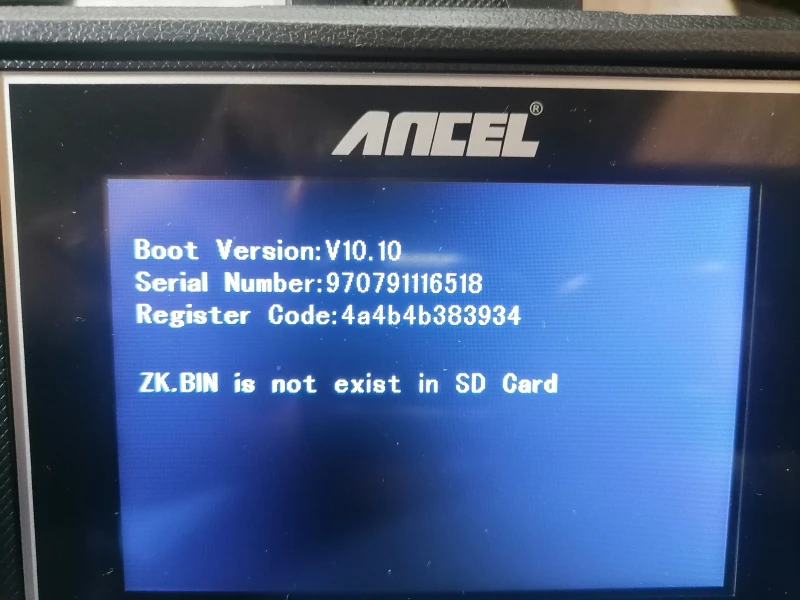

I took the SD card to plug into my pc to read the stored data. It says format??., put the sd card back into the scanner it say ZK. BIN is not exist in SD card
