Summary of Contents for ANCEL X6 HD

  • Page 3: Table Of Contents

    1.4 Safety Information ................. 2 1.4.1 Inspection Precautions ............3 2. Product Description................6 2.1 Product Overview................6 2.2 Ancel X6 HD VCI ................7 2.3 Ancel X7 HD VCI ................8 3. Software Introduction.................11 3.1 Diagnosis ..................12 3.2 Update..................15 3.3 Data Manager................17...
  • Page 4: Statement

    1. Statement You must carefully read the instruction manual, especially the safety instructions, before you can connect, commission and operate the products of OBDSPACE TECHNOLOGY CO., LTD., Ltd. (hereinafter referred to as “OBDSPACE”). 1.1 Agreement Once the product is used, it is an endorsement of the following: (1) Please refer to the packing list of the random distribution for the configuration equipment of this product, whichever is the actual product;...
  • Page 5: Disclaimer

    1.3 Disclaimer (1) This manual only provides the operation and operation methods for Ancel X6 HD / X7 HD. The company does not assume any responsibility for the consequences caused by using the operation methods for other equipment operations.
  • Page 6: Inspection Precautions

    1.4.1 Inspection Precautions (1) Ancel X6 HD / X7 HD can only be connected to a safety outlet that is grounded. Before connecting, check and confirm that the diagnostic circuit is in good condition. Otherwise, it is not necessary to test to avoid damage to the main unit. If necessary, use a multimeter to measure the diagnostic seat voltage.
  • Page 7 contact with high temperature components such as the water tank and the exhaust pipe. At the same time, be careful of the voltage generated by the components such as the ignition coil, the distributor cover, the ignition circuit and the ignition plug during engine operation.
  • Page 8 When performing diagnostic operations on a vehicle equipped with a computer control system, the following should be noted: (1) Do not place magnetic objects such as radio speakers close to the computer, as the magnetic properties of the speakers can damage the circuits and components in the ECU.
  • Page 9: Product Description

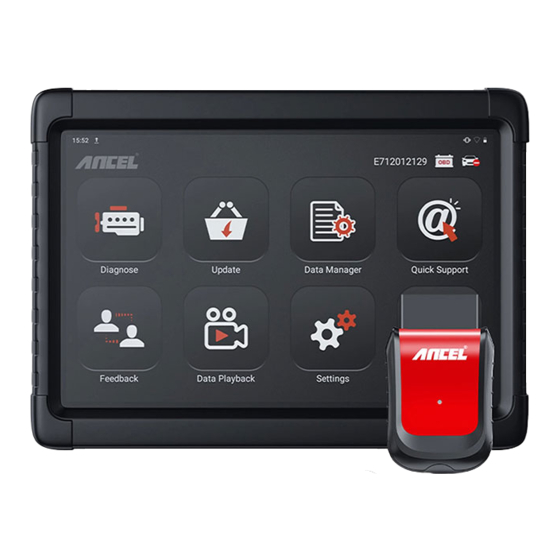

    2. Product Description 2.1 Product Overview Ancel X6 HD/X7 HD is an Android based brand new-generation overall diagnostic tool for heavy duty trucks and commercial vehicles and machineries. With 10 -inch high-qualified industrial diagnostic tablet, in which software covering more trucks, buses, machineries from home and abroad with extensive diagnostic functions.
  • Page 10: Ancel X6 Hd Vci

    2.2 Ancel X6 HD VCI Name Description Power and Lights on red when powered(connected to connection the car) Indicator Lights on blue when the buletoot connected ① Lights flashing when the the communication in process Certification CE, FCC,RoHS certification ②...
  • Page 11: Ancel X7 Hd Vci

    -30 to 120℃ ( -22-248℉ ) , relative Storage Temperature Humidity:<90% Communication model Bluetooth J1939, J1708, ISO 9141, ISO14230, ISO15765, ISO11898, SAE-J1850 VPW, Protocols SAE-1850 PWM, UDS, K/L lines, High speed CAN, Middle speed CAN, Low speed CAN and Single wire CAN 2.3 Ancel X7 HD VCI...
  • Page 12 2.3-1 VCI Front Name Description Power Indicator Lights up when powered(connected ① to the car) Vehicle communication Vehicle communication data ② indicator Bluetooth indicator Lights up when connected to tablet ③ USB indicator Lights up when connected to tablet ④ 2.3-2 VCI Left Name Description...
  • Page 13 2.3-3 VCI Right Name Description Connect to the main testing line, DB15 interface connect to the vehicle through the ⑦ diagnostic connector VCI Box Parameters Processor ARM 32-bit Cortex processor Input Voltage DC 8-30V -10 to 70℃ ( 14-158℉ ) , relative Operating Temperature Humidity:<90% -30 to 120℃...
  • Page 14: Software Introduction

    J1939, J1708, ISO 9141, ISO14230, ISO15765, ISO11898, SAE-J1850 VPW, Protocols SAE-1850 PWM, UDS, K/L lines, High speed CAN, Middle speed CAN, Low speed CAN and Single wire CAN 3. Software Introduction Ancel software client homepage:...
  • Page 15: Diagnosis

    3.1 Diagnosis Vehicle diagnosis softwares are classified into HEAVY TRUCK, LIGHT TRUCK, CHINA TRUCK, CONSTRUCTION, ENGINE, ABS, OBDII, as the picture belows:...
  • Page 18: Update

    3.2 Update • Connect the internet by WIFI. • Login (input the serial number and password at the first time. • Select the software and click the download button.
  • Page 20: Data Manager

    3.3 Data Manager The storage location of vehicle applications, test pictures, videos, reports and for user reference. 3.4 Quick Support The function allows OBDSPACE technical staff to connect to your host through the network remotely to help you diagnose the vehicle.
  • Page 21: Feedback

    3.5 Feedback This function allows you upload vehicle diagnostics problems encountered by users during the use of the software. It can help engineers repair software errors quickly.
  • Page 22: Data Playback

    3.6 Data Playback Users can play back data and quickly analyze the communication data between the vehicle and the diagnostic tool to find out the problem.
  • Page 24: Settings

    3.7 Settings...
  • Page 27: User

    3.8 User The user information can edit and save here, which will show in the testing report when you want to show to your customers.
  • Page 28: Product Activation

    4. Product Activation (1) Enter the 【 Update 】 function, input the serial number and the password (you can find the password in the password envelope).
  • Page 29 (3) Click【Login】, and a prompt box will pop up.
  • Page 30 (4) Click 【Yes】 to fill in the activation information.
  • Page 31: Cleaning And Maintenance And Warranty

    (5) After the information is filled out, click 【ACTIVATION】. (6) Click【Yes】, complete the product activation. 5. Cleaning and maintenance and warranty 5.1 Cleaning and maintenance (1) Do not disassemble it, try to handle it gently to avoid impact. Place fault diagnosis device flat,...
  • Page 32: Warranty

    temperature and humidity, excessive smoke, easy vibration, direct sunlight, and strong magnetic field storage environment. (3) If the vehicle test operation is not performed for a long time, please run the main machine regularly to avoid moisture. (4) Unplug the power plug when not in use to avoid aging of electrical components caused by long-term power.
  • Page 33 from OBDSPACE . (1) Product acceptance When you receive the product, please be sure to open the package check. Please carefully check the product category and quantity according to the attached list. If there are any shortages, errors, damages and other unpredictable abnormal conditions, please keep all the documents of the product and notify us immediately.
  • Page 34 A. Failures, defects or flaws not directly related to the quality of the OBDSPACE products, including but not limited to failing to use the product according to the user manual’s instructions, crash, fall, disassemble by anyone other than a OBDSPACE approved service person, connecting improper accessories, damage owing to impact because of improper transport or storage of the product, etc.
  • Page 35 name, model number, serial number and purchase date of the product should be clearly stated on the invoice. It is covered with the official seal of the dealer. (6) Over-warranty product maintenance regulations If the product needs to be repaired by our company after the maintenance period, we will charge the maintenance fee appropriately, and the freight will be borne by the user.
