PRODUCT OVERVIEW....................................................... 2
PRODUCT STRUCTURE .................................................... 3
HOST CONFIGURATION .................................................. 4
PRINTER CONFIGURATION (OPTIONAL) .................... 5
POWER ON/OFF ................................................................ 5
VEHICLE DIAGNOSTIC PREPARATION ......................... 6
DIAGNOSTIC FUNCTION ............................................... 11
DPF REGENERATION ...................................................... 17
PIN DETECT ................................................................... 18
DATA MANAGEMENT ................................................ 18
DIAGNOSTIC SOFTWARE UPGRADE ...................... 19
SETTINGS ....................................................................... 20
13.1 Wi-Fi Connection ............................................................... 20
13.2 Brightness ............................................................................. 21
13.3 Volumes ................................................................................. 21
13.4 User Information and Activation ................................... 21
13.5 Storage ................................................................................... 23
13.6 General ................................................................................... 23
CONTENTS
1
HD Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD3600 and is the answer not in the manual?

Questions and answers

Paul Gauthier
May 20, 2025

will the ancel hd3600 scanner show/monitor scr values during a regen?

Summary of Contents for ANCEL HD3600

  • Page 1: Table Of Contents

    HD Series CONTENTS PRODUCT OVERVIEW............2 PRODUCT STRUCTURE ............ 3 HOST CONFIGURATION ..........4 PRINTER CONFIGURATION (OPTIONAL) ....5 POWER ON/OFF ..............5 VEHICLE DIAGNOSTIC PREPARATION ......6 INTRODUCTION OF EACH FUNCTION MENU ... 9 DIAGNOSTIC FUNCTION ..........11 DPF REGENERATION ............17 PIN DETECT ..............
  • Page 2: Product Overview

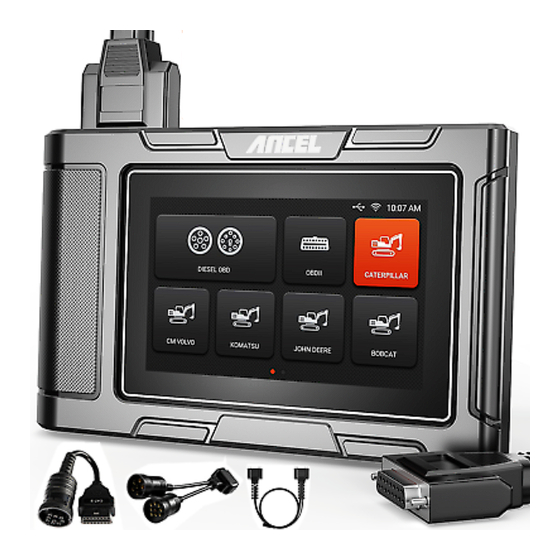

    HD Series Product Overview HD3600 is a diagnostic tool for the construction machinery vehicles based on the Android tablet. Caterpillar, Komatsu, John Deere, Volvo, Bobcat, Case, and Hitachi, along with Yanmar are fully covered. This product integrates commercial vehicle OBD standard...
  • Page 3: Product Structure

    HD Series Product Structure...
  • Page 4: Host Configuration

    HD Series Serial No. Name Function Description Connection interface connects Main Testing ① vehicle communication cable during Cable vehicle diagnosis Used to connect to an external ② USB Port computer Used to print diagnostic reports and ③ Print results Paper bin After opening, you can install and ④...
  • Page 5: Printer Configuration (Optional)

    HD Series Capacitive screen TP touch screen WIFI 802.11b/g/n 2.4GHz Horn Support Type C interface USB interface Diagnose DB15 interface interface Operating DC 10V~24V/3A voltage Operating -20℃~60℃ temperature Storage -30℃~70℃ temperature Printer Configuration (Optional) Printer 80mm thermal printer 60mm/s Print speed Effective print width 72mm Print resolution...
  • Page 6: Vehicle Diagnostic Preparation

    HD Series automatically start up. If it doesn’t start up, it may be that there is no power supply for the vehicle diagnostic seat, and the device can be powered by the cigarette lighter or battery clamp. Power on the power adapter: plug one end of the main diagnostic test line into the DB-15 interface of the device, connect the power adapter, and the device will start automatically.
  • Page 7 HD Series program and the vehicle, the following operations need to be performed: 1) Turn off the ignition; 2) Find the diagnostic interface of the vehicle: it is usually located on the driver side; If the diagnostic interface is not found, please refer to the vehicle maintenance manual.
  • Page 8 HD Series 2) Connection of non OBD-II interface Vehicles with non OBD-II interface need to connect the main test line with the corresponding special connector, as shown in the figure:...
  • Page 9: Introduction Of Each Function Menu

    HD Series Note: at this time, the equipment is powered by the vehicle diagnosis seat, and the equipment starts automatically. If not, it may be that the vehicle diagnosis seat has no power supply, and the equipment can be powered by the cigarette lighter or battery clip.
  • Page 10 HD Series Function Icon Function description name Data For browsing and managing saved data management files For online upgrade of system software Update and vehicle software Settings Set and view system information Table 2: Toolbar Function Icon Function description name Refresh Refresh upgrade menu Return to the main interface of the system...
  • Page 11: Diagnostic Function

    HD Series Function Icon Function description name Used to print test results or reports. The Print printer is optional Used to edit files, lock, unlock or delete Edit files Used to add feedback information Added WIFI WIFI connection network Used to adjust the brightness of the device Brightness screen Volume...
  • Page 12 HD Series 2) Select【Diagnostic Mode】 Note: 【Demo Mode】 Give a diagnostic demonstration for your reference. 3) Select connector according to the specific situation, such as 【Diesel Green 9PIN】;...
  • Page 13 HD Series 4) Select the required diagnostic method, such as 【Auto Detect】; 5) Click 【Start test】...
  • Page 14 HD Series 6) Select【Transmission ECU】; 7) Enter the diagnostic home page.
  • Page 15 HD Series The diagnostic home page usually includes the following options: ECU Information: Read and display the control system module information detected from ECU. Read Fault Code: Read the fault code information retrieved from the vehicle system module. Erase Fault Code: Clear the fault code and freeze frame data retrieved from the vehicle system module Live Data: Read and display the real-time operation parameters of the current system module...
  • Page 16 HD Series  Graphic: View the real-time operating parameters of the unit in the data stream waveform graph mode, and select [List] to return to the numerical display state.  Compare: Compare the data steam. Select a saved data file of the same vehicle type in the pop-up dialog box, and select [OK] to return, and then an additional column "CMPR values"...
  • Page 17: Dpf Regeneration

    HD Series  Save: Save the current data stream (for subsequent data stream comparison) DPF Regeneration Select【DPF】 in main menu, the screen will display the vehicle model list and then operate according to the screen prompt.
  • Page 18: Pin Detect

    HD Series Pin Detect This function mainly measures the voltage of 16 PIN of OBD diagnostic interface, and judges the pin position of K- line and CAN line. After connecting the OBD interface of vehicle, click the main interface 【Tools】 to select pin detection. The program automatically measures the 16pin voltage of OBD diagnosis interface, and judges the pin position of K-line and can line, as shown in the figure below:...
  • Page 19: Diagnostic Software Upgrade

    HD Series Diagnostic Software Upgrade By connecting the device to the wireless network, the diagnostic software can be upgraded and the product function can be improved in time. Open 【Update】 in the function main menu, and the system will automatically search for the latest update program, as shown in the figure below.
  • Page 20: Settings

    HD Series Settings Select 【Settings】 from the main menu to open the setting interface, where you can adjust the following system settings. 13.1 Wi-Fi Connection The device supports wireless network connection for diagnosis software upgrade and problem feedback.
  • Page 21: Brightness

    HD Series 13.2 Brightness The device supports screen brightness setting, please adjust it according to your adaptive brightness. 13.3 Volumes The device supports volume adjustment. 13.4 User Information and Activation Activation...
  • Page 22 HD Series The products are not activated when they leave the factory. Connect the network to enter the setting, and click 【Activation】 to activate the machine. Note: Please ensure that the device is connected to an effective Wi-Fi network before performing the activation operation.
  • Page 23: Storage

    HD Series 13.5 Storage Cleaning up useless data with one click, freeing up more space and cleaning up regularly will help the system run more stably. 13.6 General Language Please select settings based on the language you support for...
  • Page 24 HD Series the model you purchased. Unit This option can set the data flow unit in the diagnostic equipment software. Please select metric system or English system as required. Date&Time This option can set the date / time of the device. The default is automatic network synchronization update, or it can be set...
  • Page 25 HD Series manually. About This option is used to look up the device model, version, serial number, etc. Reset This option can restore the original settings of the device, which will delete all the data stored in the device, including the activation information and model data.
  • Page 26: Printer Introduction(Optional

    HD Series the network to activate and download the model data package. Printer Introduction(Optional) The printer function is optional. It depends on the model you buy. Printer combination and split...
  • Page 27 HD Series Hold the printer in your hand, aim at the lead-in slot on the back of the main unit, push it in slightly, and you will hear a “click” voice, which means the main unit and the printer has already connected together. After pressing the separation switch, hold the printer in your hand and gently pull it out.
  • Page 28 HD Series Hold the position of the printer paper bin cover with your fingers and open the cover up; Put the printing paper into the paper bin according to the diagram. Pay attention to the direction of the paper. If the installation is reversed, the printing will be blank;...
  • Page 29: Faq (Frequently Asked Questions)

    HD Series of self-test content, indicating that the printer function is normal. FAQ (Frequently Asked Questions) Here are some frequently asked questions and answers. Question: I cannot activate and register the tool. Answer: There is no need to register the machine. If your activation was failed, please kindly check your network.
  • Page 30 HD Series Question: I can’t diagnose my vehicle with the tool. It shows “ECU no response”. Answer: Please do a voltage test via [Pin detect]. If the voltage is abnormal, please check the hardware first.
  • Page 31 HD Series Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 32 HD Series...
