Summary of Contents for ANCEL HD3400

Page 1: Table Of Contents
HD Series CONTENTS PRODUCT OVERVIEW............3 PRODUCT STRUCTURE ............ 4 HOST CONFIGURATION ..........5 PRINTER CONFIGURATION (OPTIONAL) ....6 POWER ON/OFF ..............6 ................6 Power on ................7 Power off VEHICLE DIAGNOSTIC PREPARATION ......7 INTRODUCTION OF EACH FUNCTION MENU ..10 DIAGNOSTIC FUNCTION ..........
Page 2 HD Series 13.6 General ................... 23 ..............23 Language ................... 24 Unit ..............24 Date&Time ................25 About ................25 Reset PRINTER INTRODUCTION ......... 26 ......... 26 Printer combination and split ....27 Printer loading and changing paper .......... 28 Printer self-test function FAQ(FREQUENTLY ASKED QUESTIONS) ....
Page 3: Product Overview

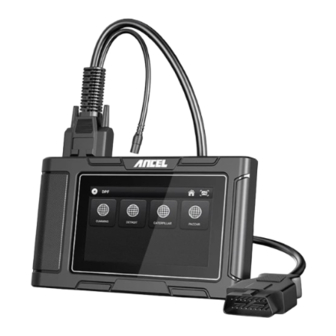

HD Series Product Overview ANCEL HD series products are commercial vehicle diagnostic tools based on special Android tablet. This product integrates commercial vehicle OBD standard diagnostic protocols, including SAE J1939, SAE J1708, SAE J1850 PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4 and ISO 27145-4.
Page 4: Product Structure
HD Series Product Structure...
Page 5: Host Configuration
HD Series Serial No. Name Function Description Connection interface connects Main Testing vehicle communication cable during ① Cable vehicle diagnosis Used to connect to an external USB Port ② computer Used to print diagnostic reports and Print ③ results Paper bin After opening, you can install and ④...
Page 6: Printer Configuration (Optional)
HD Series Capacitive screen TP touch screen WIFI 802.11b/g/n 2.4GHz Horn Support USB interface Type C interface Diagnose DB15 interface interface Operating DC 10V~24V/3A voltage Operating -20℃~ 60℃ temperature Storage -30℃~ 70℃ temperature Printer Configuration (Optional) Printer 80mm thermal printer 60mm/s Print speed Effective print width...
Page 7: Power Off
HD Series automatically start up. If it doesn’t start up, it may be that there is no power supply for the vehicle diagnostic seat, and the device can be powered by the cigarette lighter or battery clamp. Power on the power adapter: plug one end of the main diagnostic test line into the DB-15 interface of the device, connect the power adapter, and the device will start automatically.
Page 8 HD Series performed: 1) Turn off the ignition; 2) Find the diagnostic interface of the vehicle: it is usually located on the driver side; If the diagnostic interface is not found, please refer to the vehicle maintenance manual. 3) Insert one end of the diagnostic main test line into the device DB-15 connector and tighten the retaining screws.
Page 9 HD Series 2) Connection of non OBD-II interface Vehicles with non OBD-II interface need to connect the main test line with the corresponding special connector, as shown in the figure:...
Page 10: Introduction Of Each Function Menu
HD Series Note: at this time, the equipment is powered by the vehicle diagnosis seat, and the equipment starts automatically. If not, it may be that the vehicle diagnosis seat has no power supply, and the equipment can be powered by the cigarette lighter or battery clip.
Page 11 HD Series Function Icon Function description name Used to report the problem to the company's service system (need to Feedback connect to the network) when the system cannot be accessed during the diagnosis process Used to print test results or test reports. Print The printer is optional Used to edit files, lock, unlock or delete...
Page 12 HD Series Used to set device language, unit and General time, view device information and restore factory settings Table 2: Function main menu Function Icon Function description name Diagnostic procedure: Diesel OBD, Diesel OBD see section 5 for details Diagnostic procedure: OBD-II, see OBD-II section 5 for details The diagnosis menu of each engine...
Page 13: Diagnostic Function
HD Series Diagnostic Function 1) Take【Diesel OBD】as an example; Click【DIESEL OBD】menu enter the diagnosis interface. 2) Select connector according to the specific situation, such as 【Diesel6&9PIN】; 3) Select the required diagnostic method, such as 【Standard protocol(Fast Scan)】;...
Page 14 HD Series 4) Click 【Start test】 5) Select【(J1939) Engine】;...
Page 15 HD Series 6) Enter【Diagnosis home page】; The main diagnostic interface usually includes the following options: ECU Information: Read and display the control system module information detected from ECU.
Page 16 HD Series Read Fault Code: Read the fault code information retrieved from the vehicle system module. Erase Fault Code: Clear the fault code and freeze frame data retrieved from the vehicle system module Live Data: Read and display the real-time operation parameters of the current system module...
Page 17: Dpf Regeneration
HD Series DPF Regeneration Select【DPF】 in main menu, the screen will display the vehicle model list and then operate according to the screen prompt.
Page 18: Pin Detect
HD Series Pin Detect This function mainly measures the voltage of 16 PIN of OBD diagnostic interface, and judges the pin position of K- line and CAN line. After connecting the OBD interface of vehicle, click the main interface 【Tools】 to select pin detection. The program automatically measures the 16pin voltage of OBD diagnosis interface, and judges the pin position of K-line and can line, as shown in the figure below:...
Page 19: Data Management
HD Series Data Management 【Data Management】The function is used to save and view test reports, screenshots and problem feedback files. Most of the files are generated by executing the toolbar operation of the vehicle diagnosis interface. Diagnostic Software Upgrade By connecting the device to the wireless network, the diagnostic software can be upgraded and the product function can be improved in time.
Page 20: Settings
HD Series Settings Select 【Settings】 from the main menu to open the setting interface, where you can adjust the following system settings. 13.1 Wi-Fi Connection The device supports wireless network connection for diagnosis software upgrade and problem feedback.
Page 21: Brightness
HD Series 13.2 Brightness The device supports screen brightness setting, please adjust it according to your adaptive brightness. 13.3 Volumes The device supports volume adjustment.
Page 22: User Information And Activation
HD Series 13.4 User Information and Activation Activation The products are not activated when they leave the factory. Connect the network to enter the setting, and click 【Activation】 to activate the machine. Note: Please ensure that the device is connected to an effective Wi-Fi network before performing the activation operation.
Page 23: Storage
HD Series 13.5 Storage Cleaning up useless data with one click, freeing up more space and cleaning up regularly will help the system run more stably. 13.6 General Language...
Page 24: Unit
HD Series Please select settings based on the language you support for the model you purchased. Unit This option can set the data flow unit in the diagnostic equipment software. Please select metric system or English system as required. Date&Time...
Page 25: About
HD Series This option can set the date / time of the device. The default is automatic network synchronization update, or it can be set manually. About This option is used to look up the device model, version, serial number, etc. Reset...
Page 26: Printer Introduction
HD Series This option can restore the original settings of the device, which will delete all the data stored in the device, including the activation information and model data. You need to re-connect the network to activate and download the model data package. Printer Introduction Printer combination and split...
Page 27: Printer Loading And Changing Paper
HD Series Hold the printer in your hand, aim at the lead-in slot on the back of the main unit, push it in slightly, and you will hear a “click” voice, which means the main unit and the printer has already connected together. After pressing the separation switch, hold the printer in your hand and gently pull it out.
Page 28: Printer Self-Test Function
HD Series Hold the position of the printer paper bin cover with your fingers and open the cover up; Put the printing paper into the paper bin according to the diagram. Pay attention to the direction of the paper. If the installation is reversed, the printing will be blank;...
Page 29: Faq(Frequently Asked Questions)
FAQ(Frequently Asked Questions) Here are some frequently asked questions and answers about the HD3400. Question: I cannot activate and register the tool.
Page 30 Question: Will it work on new (2018) freight liner with the new green connector? Answer: Yes. The HD3400 machine has already included new green 9pin connector. Question: I can’t diagnose my vehicle with the tool. It shows “ECU no response”.
Page 31 HD Series Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 32 HD Series...
