ANCEL FX2000 Upgrade Guide
A software update is required if you encounter the following problems:
1. The tool fails to work on your car.
2. It is slow to load all menus.
3. You need newer software version.
The tool can be updated only via the memory card.
Follow the steps below to proceed the update:
Note: Please prepare a computer with Windows 7/ Windows 8/ Windows 10 installed and
make sure it is successfully connected to the Internet. Moreover, a memory card reader is
also needed.
1. Connect the tool to the computer via the supplied data cable.

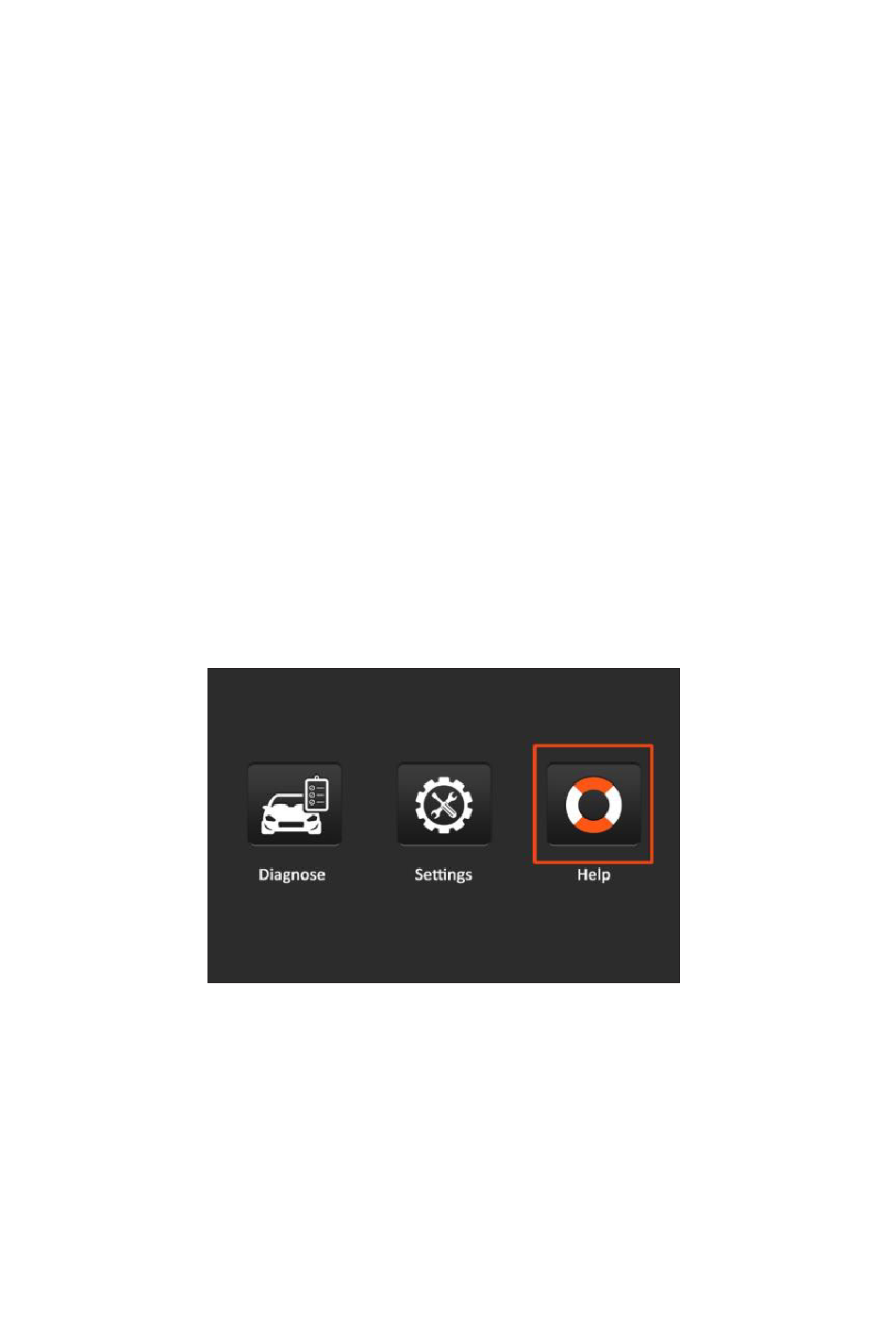

2. After the tool is powered on, place cursor on the Help icon and press the [OK]
button. (Figure 7-1)
Figure 7-1
3. Select [Tool Information], press [OK]. (Figure 7-2)
Advertisement
Related Manuals for ANCEL FX2000
Summary of Contents for ANCEL FX2000
- Page 1 ANCEL FX2000 Upgrade Guide A software update is required if you encounter the following problems: 1. The tool fails to work on your car. 2. It is slow to load all menus. 3. You need newer software version. The tool can be updated only via the memory card.
- Page 2 6. Open the computer browser and visit https://www.anceltech.com. Click “Download” to download the “FX2000” update tool. 7. Install the update tool and then run it. The following window will pop up on the...
- Page 3 Figure 7-4 8. Enter the Serial Number and click [Device Upgrade] to enter the following screen. Input the required information and click [Submit]. (Figure 7-5) Figure 7-5 9. Install the memory card from the tool into the supplied card reader and insert into USB port of the computer.
- Page 4 Figure 7-6 11. After the download is complete, reinsert the memory card into the tool and power the tool by connecting the data cable to the computer. The tool will automatically start upgrading.
