Product Overview ............................................................ 3
1
Product Structure ............................................................ 4
2
Host Configuration ......................................................... 5
3
Printer Configuration (Optional) .................................. 6
4
POWER on/off .................................................................. 6
5
1) Power on ........................................................................... 6
2) Power off ........................................................................... 7
Vehicle Diagnostic Preparation .................................... 7
6
Introduction of Each Function Menu ........................ 10
7
Diagnostic Function ...................................................... 12
8
DPF Regeneration ......................................................... 17
9
Pin Detect ................................................................... 18
10
Data Management .................................................... 19
11
Diagnostic Software Upgrade ................................. 19
12
Settings ....................................................................... 20
13
Wi-Fi Connection ................................................. 20
13.1
Brightness ............................................................. 21
13.2
Volumes ................................................................ 21
13.3
User Information and Activation ......................... 22
13.4
1) Activation .................................................................... 22
2) User Info ..................................................................... 23
Storage .................................................................. 23
13.5
Contents
1
HD series
Advertisement
Table of Contents
Related Manuals for ANCEL HD Series
Summary of Contents for ANCEL HD Series
-
Page 1: Table Of Contents
HD series Contents Product Overview ............3 Product Structure ............4 Host Configuration ............5 Printer Configuration (Optional) ........6 POWER on/off ..............6 1) Power on ................6 2) Power off ................7 Vehicle Diagnostic Preparation ........7 Introduction of Each Function Menu ......10 Diagnostic Function ............ - Page 2 HD series General ..............24 13.6 1) Language ..............24 2) Unit ................24 3) Date&Time ..............24 4) Reset ................25 Printer Introduction ..........25 1) Printer combination and split ........25 2) Printer loading and changing paper ....... 26...
-
Page 3: Product Overview

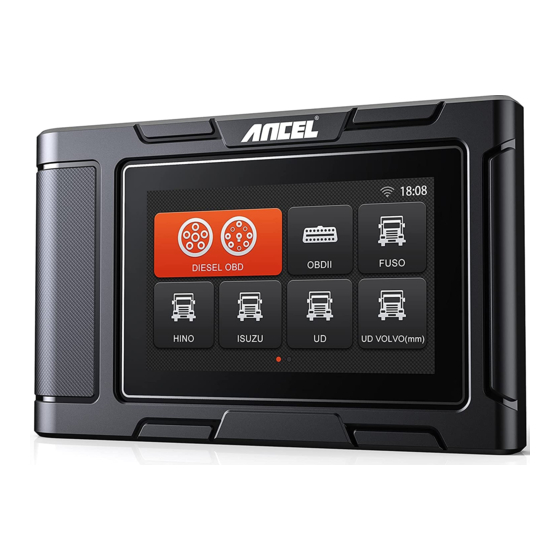

HD series Product Overview Ancel HD series products are commercial vehicle diagnostic tools based on special Android tablet. This product integrates commercial vehicle OBD standard diagnostic protocols, including SAE J1939, SAE J1708, SAE J1850 PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4 and ISO 27145-4. -
Page 4: Product Structure
HD series Product Structure... -
Page 5: Host Configuration
HD series Serial No. Name Function Description Connection interface connects Main Testing vehicle communication cable during Cable vehicle diagnosis Used to connect to an external USB Port computer Used to print diagnostic reports and Print results Paper bin After opening, you can install and... -
Page 6: Printer Configuration (Optional)
HD series TP touch screen Capacitive screen WIFI 802.11b/g/n 2.4GHz Horn Support USB interface Type C interface Diagnose DB15 interface interface Operating DC 10V~24V/3A voltage Operating -20℃~60℃ temperature Storage -30℃~70℃ temperature Printer Configuration (Optional) Printer 80mm thermal printer Print speed... -
Page 7: Power Off
HD series automatically start up . If it doesn’t started up, it may be that there is no power supply for the vehicle diagnostic seat, and the device can be powered by the cigarette lighter or battery clamp. Power on the power adapter: plug one end of the main... - Page 8 HD series 2) Find the diagnostic interface of the vehicle: it is usually located on the driver side; If the diagnostic interface is not found, please refer to the vehicle maintenance manual. 3) Insert one end of the diagnostic main test line into the device DB-15 connector and tighten the retaining screws.
- Page 9 HD series 2) Connection of non OBD-II interface Vehicles with non OBD-II interface need to connect the main test line with the corresponding special connector, as shown in the figure:...
-
Page 10: Introduction Of Each Function Menu
HD series Note: at this time, the equipment is powered by the vehicle diagnosis seat, and the equipment starts automatically. If not, it may be that the vehicle diagnosis seat has no power supply, and the equipment can be powered by the cigarette lighter or battery clip. - Page 11 HD series Function Icon Function description name Used to report the problem to the company's service system (need to Feedback connect to the network) when the system cannot be accessed during the diagnosis process Used to edit files, lock, unlock or delete...
-
Page 12: Diagnostic Function
HD series Table 2: Function main menu Function Icon Function description name Diagnostic procedure: Diesel OBD, Diesel OBD see section 5 for details Diagnostic procedure: OBD-II, see OBD-II section 5 for details The diagnosis menu of each model Model will be slightly different. Please refer... - Page 13 HD series 2) Select connector according to the specific situation, such as 【Diesel6&9PIN】; 3) Select the required diagnostic method, such as 【Standard protocol(Fast Scan)】;...
- Page 14 HD series 4) Click 【Start test】 5) Select【(J1939) Engine】;...
- Page 15 HD series 6) Enter【Diagnosis home page】; The main diagnostic interface usually includes the following options: ECU Information: Read and display the control system module information detected from ECU...
- Page 16 HD series Read Fault Code: Read the fault code information retrieved from the vehicle system module Erase Fault Code: Clear the fault code and freeze frame data retrieved from the vehicle system module Live Data: Read and display the real-time operation parameters...
-
Page 17: Dpf Regeneration
HD series DPF Regeneration Select【DPF】 in main menu, the screen will display the vehicle model list and then operate according to the screen prompt. -
Page 18: Pin Detect
HD series 10 Pin Detect This function mainly measures the voltage of 16 PIN of OBD diagnostic interface, and judges the pin position of K- line and CAN line. After connecting the OBD interface of vehicle, click the main interface 【Tools】 to select pin detection. The program... -
Page 19: Data Management
HD series 11 Data Management 【Data Management】The function is used to save and view test reports, screenshots and problem feedback files. Most of the files are generated by executing the toolbar operation of the vehicle diagnosis interface. 12 Diagnostic Software Upgrade... -
Page 20: Settings
HD series 13 Settings Select 【Settings】 from the main menu to open the setting interface, where you can adjust the following system settings： 13.1 Wi-Fi Connection The device supports wireless network connection for diagnosis software upgrade and problem feedback. -
Page 21: Brightness
HD series 13.2 Brightness The device supports screen brightness setting, please adjust it according to your adaptive brightness. 13.3 Volumes The device supports volume adjustment. -
Page 22: User Information And Activation
HD series 13.4 User Information and Activation 1) Activation The products are not activated when they leave the factory. Connect the network to enter the setting, and click 【Activation】 to activate the machine. Note: Please ensure that the device is connected to an effective... -
Page 23: User Info
HD series 2) User Info Set your personal information: name, telephone, email, address, etc. 13.5 Storage Cleaning up useless data with one click, freeing up more space and cleaning up regularly will help the system run more stably. -
Page 24: General
HD series 13.6General 1) Language Please select settings based on the language you support for the model you purchased. 2) Unit This option can set the data flow unit in the diagnostic equipment software. Please select metric system or English system as required. -
Page 25: Reset
HD series automatic network synchronization update, or it can be set manually. 4) Reset This option can restore the original settings of the device, which will delete all the data stored in the device, including the activation information and model data. You need to re-connect the network to activate and download the model data package. -
Page 26: Printer Loading And Changing Paper
HD series Hold the printer in your hand, aim at the lead-in slot on the back of the main unit, push it in slightly, and you will hear a “click” voice, which means the main unit and the printer has already connected together. -
Page 27: Printer Self-Test Function
HD series Hold the position of the printer paper bin cover with your fingers and open the cover up; Put the printing paper into the paper bin according to the diagram. Pay attention to the direction of the paper. If the installation is reversed, the printing will be blank;... - Page 28 HD series When the machine is turned on, press the printer test key briefly, and the printer will automatically print out a piece of blank paper. In the case of power on, long press the printer test key for three seconds, the printer will automatically print a section of self-test content, indicating that the printer function is normal.
- Page 29 HD series Question: I cannot activate and register the tool. Answer: There is no need to register the machine. If your activation was failed, please kindly check your network. Question: What does the Simulate and DEMO menus mean? Answer: Simulate and DEMO are both DEMO menus, not diagnosis function menus.
- Page 30 HD series Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 31 HD series...
