ANCEL HD Series Manual

Hide thumbs Also See for HD Series:
Table of Contents

Advertisement

Quick Links

Download this manual
1
PRODUCT OVERVIEW....................................................... 2
2
PRODUCT STRUCTURE .................................................... 3
3
HOST CONFIGURATION .................................................. 4
4
PRINTER CONFIGURATION (OPTIONAL) .................... 5
5
POWER ON/OFF ................................................................ 5
6
VEHICLE DIAGNOSTIC PREPARATION ......................... 6
7
8
DIAGNOSTIC FUNCTION ............................................... 11
9
PIN DETECT ....................................................................... 18
10
DATA MANAGEMENT ................................................ 18
11
DIAGNOSTIC SOFTWARE UPGRADE ...................... 19
12
SETTINGS ....................................................................... 20
12.1 Wi-Fi Connection ............................................................... 20
12.2 Brightness ............................................................................. 21
12.3 Volumes ................................................................................. 21
12.4 User Information and Activation ................................... 21
12.5 Storage ................................................................................... 23
12.6 General ................................................................................... 23
13
14
CONTENTS
1
HD Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD Series and is the answer not in the manual?

Questions and answers

Mary Helmick
February 17, 2025

Are there user guides specifically for use of the HD3400 on a Cummins engine (Freightliner M2 Shuttle Bus 2012)?

0

Subscribe to Our Youtube Channel

Related Manuals for ANCEL HD Series

Summary of Contents for ANCEL HD Series

  • Page 1: Table Of Contents

    HD Series CONTENTS PRODUCT OVERVIEW............2 PRODUCT STRUCTURE ............ 3 HOST CONFIGURATION ..........4 PRINTER CONFIGURATION (OPTIONAL) ....5 POWER ON/OFF ..............5 VEHICLE DIAGNOSTIC PREPARATION ......6 INTRODUCTION OF EACH FUNCTION MENU ... 9 DIAGNOSTIC FUNCTION ..........11 PIN DETECT ............... 18 DATA MANAGEMENT ..........

  • Page 2: Product Overview

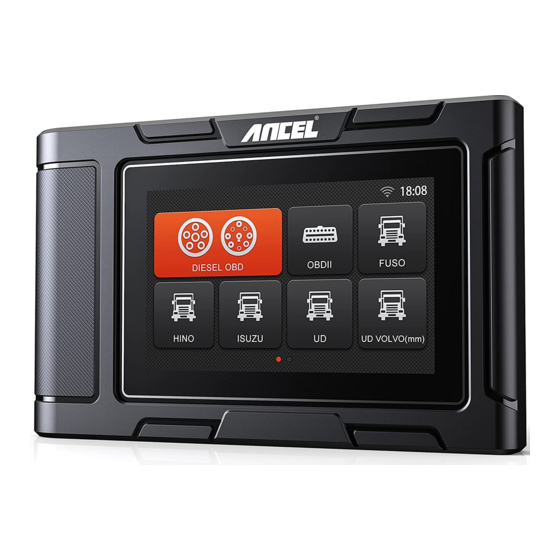

    HD Series Product Overview HD3500 is a diagnostic tool for the pick-up trucks based on the Android tablet. Ford, Dodge, Chevrolet, GMC, Toyota, Nissan and Honda, along with Isuzu are fully covered. This product integrates commercial vehicle OBD standard diagnostic protocols, including SAE J1939, SAE J1708, SAE J1850 PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4 and ISO 27145-4.

  • Page 3: Product Structure

    HD Series Product Structure...

  • Page 4: Host Configuration

    HD Series Serial No. Name Function Description Connection interface connects Main Testing ① vehicle communication cable Cable during vehicle diagnosis Used to connect to an external ② USB Port computer Used to print diagnostic reports ③ Print and results Paper bin After opening, you can install and ④...

  • Page 5: Printer Configuration (Optional)

    HD Series Capacitive screen TP touch screen WIFI 802.11b/g/n 2.4GHz Horn Support Type C interface USB interface DB15 interface Diagnose interface Operating voltage DC 10V~24V/3A Operating -20℃~60℃ temperature Storage temperature -30℃~70℃ Printer Configuration (Optional) Printer 80mm thermal printer 60mm/s Print speed...

  • Page 6: Vehicle Diagnostic Preparation

    HD Series Power on the power adapter: plug one end of the main diagnostic test line into the DB-15 interface of the device, connect the power adapter, and the device will start automatically. Note: the voltage of the power supply should be within the scope of application of the product equipment.
  • Page 7 HD Series 2) Find the diagnostic interface of the vehicle: it is usually located on the driver side; If the diagnostic interface is not found, please refer to the vehicle maintenance manual. 3) Insert one end of the diagnostic main test line into the device DB-15 connector and tighten the retaining screws.
  • Page 8 HD Series 2) Connection of non OBD-II interface Vehicles with non OBD-II interface need to connect the main test line with the corresponding special connector, as shown in the figure:...

  • Page 9: Introduction Of Each Function Menu

    HD Series Note: at this time, the equipment is powered by the vehicle diagnosis seat, and the equipment starts automatically. If not, it may be that the vehicle diagnosis seat has no power supply, and the equipment can be powered by the cigarette lighter or battery clip.
  • Page 10 HD Series Table 2: Toolbar Function Icon Function description name Refresh Refresh upgrade menu Return to the main interface of the system Home Capture current screen picture Screenshot Used to save test data during diagnosis Test report (can be viewed in data management menu)

  • Page 11: Diagnostic Function

    HD Series Function Icon Function description name Volume Used to adjust the volume of the device Used to view device status and user User info information Data Used to remove useless data from the cleaning device Used to set device language, unit and time,...
  • Page 12 HD Series Note:  SCAN VEHICEL(OBDII): The system identifies the vehicle automatically via the OBDII interface.  SELECT VEHICLE: Select the vehicle model manually.  DEMO: Give a diagnostic demonstration. 3) Select【2017】; 4) Select 【WK-Grand Cherokee】...
  • Page 13 HD Series 5) Select【Control Unit】; Note:  Auto Scan: Scan complete ECU system automatically  Control Unit: Select a unit manually 6) Select【Body】;...
  • Page 14 HD Series 7) Select 【DDM-Driver Door Module】, then enter the diagnostic home page.
  • Page 15 HD Series The diagnostic home page usually includes the following options: ECU Information: Read and display the control system module information detected from ECU. Read Fault Code: Read the fault code information retrieved from the vehicle system module.
  • Page 16 HD Series Erase Fault Code: Clear the fault code and freeze frame data retrieved from the vehicle system module. ECU Configure Information: Read the ECU configure information. Live Data: Read and display the real-time operation parameters of the current system module.
  • Page 17 HD Series shown in the figure below. Select lower right corner " " to return to the value display state. Actuation Test: By executing this function, you can access the specific subsystems of the vehicle and perform component tests. When the action test is performed, the...

  • Page 18: Pin Detect

    HD Series Pin Detect This function mainly measures the voltage of 16 PIN of OBD diagnostic interface, and judges the pin position of K- line and CAN line. After connecting the OBD interface of vehicle, click the main interface 【Tools】 to select pin detection. The program...

  • Page 19: Diagnostic Software Upgrade

    HD Series 11 Diagnostic Software Upgrade By connecting the device to the wireless network, the diagnostic software can be upgraded and the product function can be improved in time. Open 【Update】 in the function main menu, and the system will automatically search for the latest update program, as shown in the figure below.

  • Page 20: Settings

    HD Series 12 Settings Select 【Settings】 from the main menu to open the setting interface, where you can adjust the following system settings. 12.1 Wi-Fi Connection The device supports wireless network connection for diagnosis software upgrade and problem feedback.

  • Page 21: Brightness

    HD Series 12.2 Brightness The device supports screen brightness setting, please adjust it according to your adaptive brightness. 12.3 Volumes The device supports volume adjustment. 12.4 User Information and Activation Activation...
  • Page 22 HD Series The products are not activated when they leave the factory. Connect the network to enter the setting, and click 【Activation】 to activate the machine. Note: Please ensure that the device is connected to an effective Wi-Fi network before performing the activation operation.

  • Page 23: Storage

    HD Series 12.5 Storage Cleaning up useless data with one click, freeing up more space and cleaning up regularly will help the system run more stably. 12.6 General Language Please select settings based on the language you support for...
  • Page 24 HD Series the model you purchased. Unit This option can set the data flow unit in the diagnostic equipment software. Please select metric system or English system as required. Date &Time This option can set the date / time of the device. The default is...
  • Page 25 HD Series manually. About This option is used to look up the device model, version, serial number, etc. Reset This option can restore the original settings of the device, which will delete all the data stored in the device, including the...

  • Page 26: Printer Introduction（Optional

    HD Series the network to activate and download the model data package. 13 Printer Introduction（Optional） The printer function is optional. It depends on the model you buy. Printer combination and split...
  • Page 27 HD Series Hold the printer in your hand, aim at the lead-in slot on the back of the main unit, push it in slightly, and you will hear a “click” voice, which means the main unit and the printer has already connected together.
  • Page 28 HD Series Hold the position of the printer paper bin cover with your fingers and open the cover up; Put the printing paper into the paper bin according to the diagram. Pay attention to the direction of the paper. If the installation is reversed, the printing will be blank;...

  • Page 29: Faq(Frequently Asked Questions)

    HD Series three seconds, the printer will automatically print a section of self-test content, indicating that the printer function is normal. 14 FAQ(Frequently Asked Questions) Here are some frequently asked questions and answers. Question: I cannot activate and register the tool.
  • Page 30 HD Series Question: I can’t diagnose my vehicle with the tool. It shows “ECU no response”. Answer: Please do a voltage test via [Pin detect]. If the voltage is abnormal, please check the hardware first.
  • Page 31 HD Series Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 32 HD Series...
