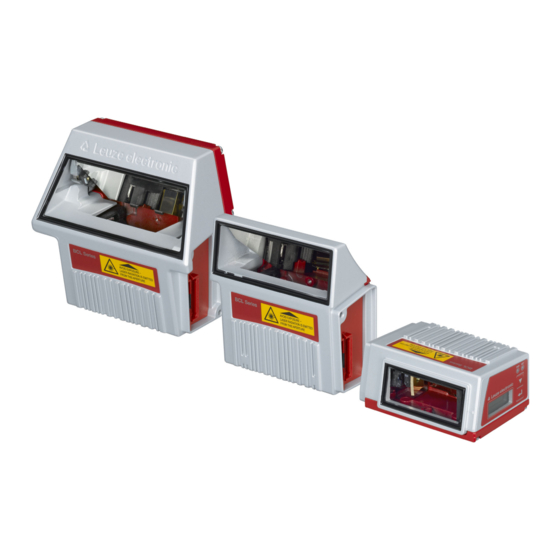

Leuze BCL 300i Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Leuze Manuals
  4. Barcode Reader
  5. BCL 300i
  6. Operating instructions manual

Leuze BCL 300i Operating Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

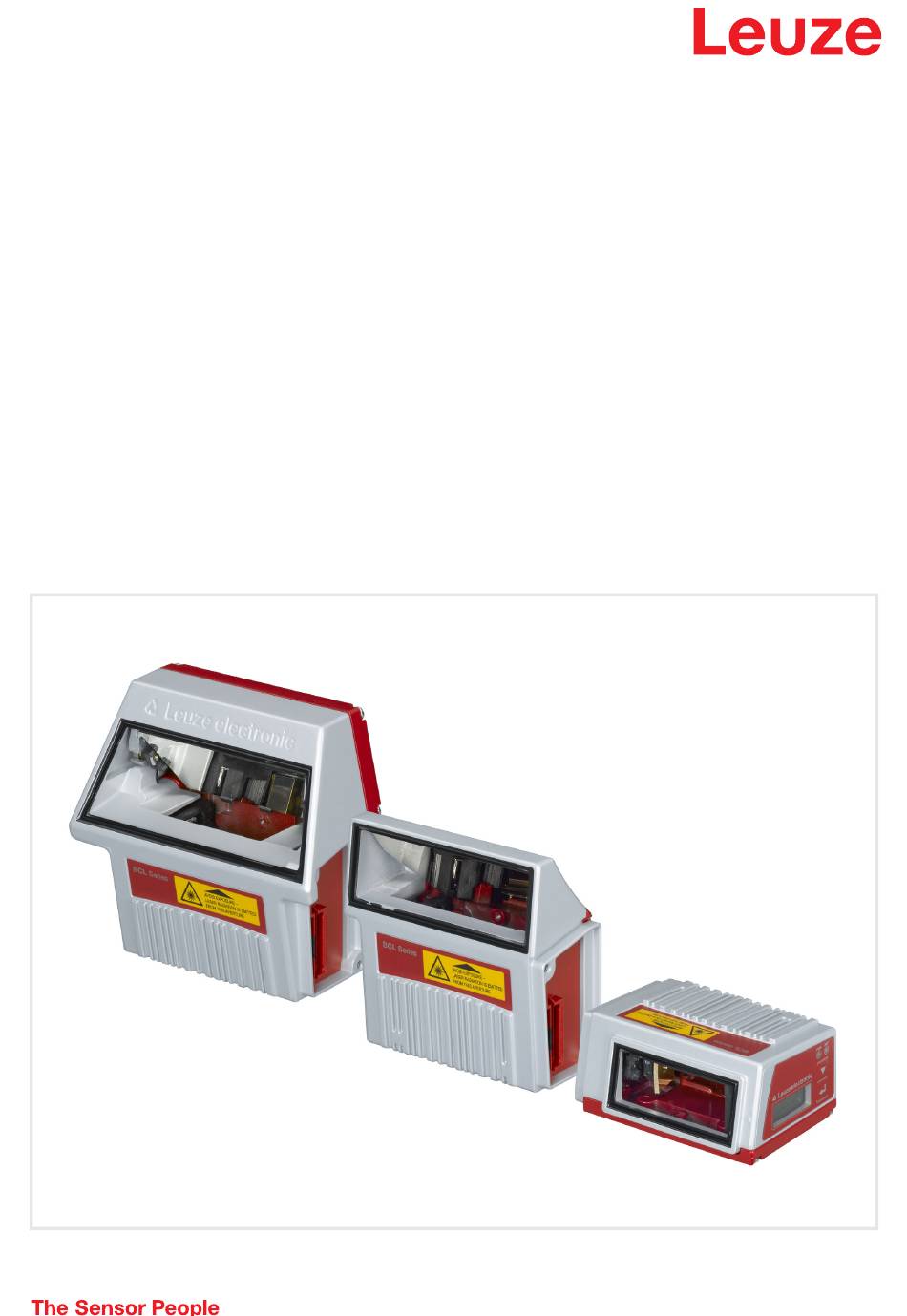

Original operating instructions
i
i
BCL 300
and BCL 301
Bar code readers
We reserve the right to make technical changes
EN • 2021-05-26 • 50117107

Advertisement

loading
Need help?

Need help?

Do you have a question about the BCL 300i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leuze BCL 300i

Summary of Contents for Leuze BCL 300i

  • Page 1 Original operating instructions BCL 300 and BCL 301 Bar code readers We reserve the right to make technical changes EN • 2021-05-26 • 50117107...
  • Page 2 © 2021 Leuze electronic GmbH & Co. KG In der Braike 1 D-73277 Owen / Germany Phone: +49 7021 573-0 Fax: +49 7021 573-199 http://www.leuze.com info@leuze.com Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 3 Leuze multiScan ........
  • Page 4 Network operation BCL 301 in the Leuze multiNet plus ......72 Detailed description of the connections ..........74 7.4.1...
  • Page 5 Leuze webConfig tool........
  • Page 6 Module 0.5 ............. . . 122 Leuze electronic GmbH + Co. KG...
  • Page 7 Figure 5.16: "Medium Density" reading field curve for oscillating-mirror scanners ..........50 Figure 5.17: Lateral "Medium Density" reading field curve for oscillating-mirror scanners ........ 50 Figure 5.18: "Low Density" reading field curve for line scanner without deflecting mirror ......... 50 Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 8 ................78 Table 7.5: Pin assignment BUS OUT for BCL 301 ..................79 Figure 7.15: Leuze multiNet plus system topology .................... 79 Figure 7.16: Leuze multiNet plus system topology .................... 80 Table 7.6: Cable lengths and shielding......................81 Figure 8.1:...
  • Page 9 ................115 Table 13.9: Reflector for autoReflAct operation....................115 Figure 15.1: Bar code sample labels (module 0.3) ..................121 Figure 15.2: Bar code sample labels (module 0.5) ..................122 Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 10 European standards and directives. The manufacturer of the product, Leuze electronic GmbH & Co. KG in D-73277 Owen, possesses a certi- fied quality assurance system in accordance with ISO 9001.
  • Page 11 Leuze electronic GmbH + Co. KG is not liable for damages caused by improper use.  Read the technical description before commissioning the device. Knowledge of this technical description is an element of proper use.
  • Page 12 V3 (e.g. electrician foreman). In other countries, there are respective regulations that must be observed. Exemption of liability Leuze electronic GmbH + Co. KG is not liable in the following cases: • The device is not being used properly. • Reasonably foreseeable misuse is not taken into account.
  • Page 13 S/R1 … 102 (H) BCL 3xx S/R1 … 100 (H) BCL 3xx O … 100 (H) A Laser aperture B Laser warning sign Figure 2.1: Laser apertures, laser warning signs Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 14 2 freely programmable switching inputs/outputs for individual adaptation to the respective application are also available here. Detailed information on this topic can be found in Chapter 7.4.1 and Chapter 7.4.3. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 15 The shielding connection is done via the M12 connector housing. NOTE The integrated parameter memory for the simple replacement of the BCL 300 is located in the MS 300. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 16 The shield is automatically contacted when the cable is lead into the metal screw fitting and fastened when the cord grip is closed. Then lead the individual wires into the terminals according to the diagram. Wire end sleeves are not necessary. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 17 The left side of the housing of the MA 100 features a metal bracket for connecting functional earth FE to the installation surface (e.g. metallic equipment). The MA 100 contains a shielding terminal for the shielding connection of the KB 301-3000. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 18 HOST/BUS IN. Please make certain that the correct interface is used on the superior system. The stan- dard setting of the BCL 300 for the host interface is RS 232. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 19 The bus is looped through the MS 301, i.e. the bus is not interrupted when the BCL 301 removed from the MS 301. The bus is terminated at BUS OUT via an external mounted terminating resistor (see chapter 13.5 "Accessory – Terminating resistor"). Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 20 The shield is automatically contacted when the cable is lead into the metal screw fitting and fastened when the cord grip is closed. Then lead the individual wires into the terminals according to the diagram. Wire end sleeves are not necessary. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 21 Network operation BCL 301 in the Leuze multiNet plus In Leuze multiNet plus network operation, the incoming bus is connected to BUS IN and the outgoing bus to BUS OUT. If the network address of the BCL 301 is not 0, the device starts up in multiNet slave mode and attempts to make contact with a multiNet master.
  • Page 22 If a code is lead through the reading field, the code content isdecoded and output via the connected inter- face. The standard protocol for this is: 9600 Baud, 8 data bits, no parity, 1 stop bit. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 23 To do this, connecting the supply voltage to the device and establishing a USB connection between the BCL and PC is sufficient. At www.leuze.com, you can find a USB driver for webConfig under Download -> identify -> Stationary bar code readersBCL 300 \ BCL 301 .
  • Page 24 Please check the incoming data of the bar code information there. Alternatively, you can use a switching input for read activation (switching signal of a photoelectric sensor or 24VDC switching signal). Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 25 • RS 232, RS 422 • RS 485 and multiNet plus slave Alternatively, various fieldbus systems, such as • PROFIBUS DP • PROFINET-IO • Ethernet TCP/IP UDP • EtherNet/IP • EtherCAT Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 26 In the basic setting, triggering takes place through an external reading cycle signal. Alternative activation options include online commands via the host interface and the autoReflAct function. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 27 Display, LEDs and buttons Dovetail mounting and 4 mounting threads Line scanner with deflecting mirror Figure 4.4: Device construction BCL 300 \ BCL 301 - Line scanner with deflecting mirror Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 28 Connection side with system Mini-B type USB plug for connection to service interface BCL 300 \ BCL 301 Figure 4.7: Device construction MK 300/MK 301 hood with integrated connectors Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 29 • with bar codes having very short bar lengths. • when the ladder code is turned out of the vertical position (tilt angle). • when the reading distance is large. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 30 • when reading stationary objects. • when a large reading field (reading window) has to be covered. Figure 4.11: Deflection principle for the line scanner with oscillating mirror add-on Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 31 For the electrical connection of the supply voltage, the interface and the switching inputs/outputs, either the MS 300 hood with integrated connectors, the MK 300 terminal hood or the KB 301-3000 cable hood together with the MA 100 terminal box are available. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 32 Figure 4.14: Networking possibilities using the multiNet plus Two-wire RS 485 The Leuze multiNet plus is optimized for fast transmission of scanner data to a superior host computer. The multiNet plus consists physically of a two-wire RS 485 interface through which the Leuze electronic GmbH + Co.
  • Page 33 In principle, networking occurs via a parallel connection of the individual RS 485 interfaces of the respec- tive bar code scanners. Shielded, twisted pair conductors should be used for the Leuze multiNet plus. This allows a total network length of up to 1200 m.
  • Page 34 BCL 300 \ BCL 301 Afterward, bar codes with the same code type and number of digits are recognized and decoded. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 35 Dimensions (H x W x D) 44 x 95 x 68 mm (without connection hood) Housing Diecast aluminum Table 5.1: Specifications of the BCL 301 and BCL 300 line/raster scanners without heating Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 36 Dimensions 58 x 125 x 110 mm (without connection hood) (H x W x D) Table 5.2: Specifications of the BCL 301 and BCL 300 oscillating-mirror scanners without heating Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 37 \ BCL 301 with heating directly to a cold air stream. To achieve an optimal heating effect, the BCL 300 BCL 301 should be mounted so that it is thermally isolated. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 38 Oscillating-mirror scanner with heating Optical data Useful opening angle Max. 60° Max. swivel angle ±20° (adjustable) Table 5.5: Specifications of the BCL 301 and BCL 300 oscillating-mirror scanners with heating Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 39 (insufficient cable cross-section) Environmental data Operating temperature -35°C … +40°C range Storage temperature -20°C … +70°C range Table 5.6: Specifications of the BCL 301 and BCL 300 deflection-mirror scanners with heating Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 40 Dimensioned drawing of complete overview of the BCL 300 \ BCL 301 with KB 301-3000 Cable length: 3m Figure 5.2: Dimensioned drawing of complete overview of the BCL 300 \ BCL 301 with KB 301-3000 Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 41 Technical data 5.3.3 Dimensioned drawing of line scanner with / without heating Optical axis Figure 5.3: Dimensioned drawing of BCL 300 \ BCL 301 S…102 line scanner Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 42 Dimensioned drawing of deflecting mirror scanner with / without heating Optical axis Deflection angle of the laser beam: ±30° Figure 5.4: Dimensioned drawing of BCL 300 \ BCL 301 S…100 with deflecting mirror Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 43 Optical axis Swivel angle of the laser beam: ±20° Deflection angle of the laser beam: ±30° Figure 5.5: Dimensioned drawing of BCL 300 \ BCL 301 O…100 oscillating-mirror scanner Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 44 To ensure degree of protection IP 65 is fulfilled, the screws of the connection hood are tightened with a tightening torque of 1.4 Nm for connecting to the BCL. Figure 5.6: Dimensioned drawing of MS 3xx connector hood Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 45 To ensure degree of protection IP 65 is fulfilled, the screws of the connection hood are tightened with a tightening torque of 1.4 Nm for connecting to the BCL. Figure 5.7: Dimensioned drawing of MK 3xx terminal hood Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 46 To ensure degree of protection IP 65 is fulfilled, the screws of the connection hood are tightened with a tightening torque of 1.4 Nm for connecting to the BCL. Figure 5.8: Dimensioned drawing of KB 301-3000 cable hood Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 47 Therefore, above all, the module of a bar code is decisive for the size of the reading field. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 48 Raster line cover dependent on the distance NOTE With the raster scanner, there may not be two or more bar codes in the raster area at the same time. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 49 Figure 5.11: Zero position of the reading distance Reading conditions for the reading field curves Bar code type 2/5 Interleaved Ratio 1:2.5 ANSI specification Class A Reading rate > 75% Table 5.8: Reading conditions Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 50 Reading distance [mm] Figure 5.13: "High Density" reading field curve for line scanner with deflecting mirror The reading field curve applies for the reading conditions stated in Table 5.8. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 51 Reading distance [mm] Figure 5.15: "Medium Density" reading field curve for line scanner with deflecting mirror The reading field curves apply for the reading conditions stated in Table 5.8. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 52 S/R1 F 102 m = 0,3 m = 0,35 m = 0,5 -100 -150 -200 Reading distance [mm] Figure 5.18: "Low Density" reading field curve for line scanner without deflecting mirror Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 53 O F 100 m = 0,3 m = 0,35 m = 0,5 -100 -150 -200 Reading distance [mm] Figure 5.21: Lateral "Low Density" reading field curve for oscillating-mirror scanners Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 54 Reading distance [mm] Figure 5.23: "Ultra Low Density" reading field curve for line scanner with deflecting mirror The reading field curves apply for the reading conditions stated in Table 5.8. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 55 -300 Reading distance [mm] Figure 5.25: Lateral "Ultra Low Density" reading field curve for oscillating-mirror scanners The reading field curves apply for the reading conditions stated in Table 5.8. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 56 Due to the shape of the optical laser spot, the CRT function may exhibit limitations (max. permis- sible tilt angle of ± 15°). Low-contrast bar codes that are printed with inkjet should be sent to Leuze for examination. Leuze electronic GmbH + Co. KG...
  • Page 57 If you have any questions concerning your shipment, please contact your supplier or your local Leuze sales office.  Observe the applicable local regulations when disposing of the packaging materials.
  • Page 58 Installation and mounting 6.2.1 Mounting via M4 x 5 screws 4 x M4x5 6 x M4x5 (oscillating-mirror scanner) Figure 6.2: Fastening options using M4x5 threaded holes Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 59 A Rod holder, turnable 360 ° B Rods Ø 16 … 20mm C Rods Ø 12 … 16mm all dimensions in mm Figure 6.3: Mounting devices BT 56 and BT 56-1 Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 60 For further information, see the notices in Chapter 6.3! Please refer to Chapter 5.4 for the permissible minimum and maximum distances between the BCL 300 \ BCL 301 and the labels to be read. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 61 For further information, see the notices in Chapter 6.3! Please refer to Chapter 5.4 for the permissible minimum and maximum distances between the BCL 300 \ BCL 301 and the labels to be read. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 62 Bar code on the bar code at an angle of inclination great- er than ±10° … 15° to vertical. Figure 6.7: Total reflection – line scanner Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 63 • Lowest possible chance of damage to the BCL 300 \ BCL 301 by mechanical collision or jammed parts. • Possible extraneous light (no direct sunlight or sunlight reflected by the bar code). Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 64 In doing so, avoid leaving fingerprints on the front screen of the BCL 300 \ BCL 301 ATTENTION! Do not use aggressive cleaning agents such as thinner or acetone for cleaning the device. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 65 IP 65 until the connection hood has been screwed on. Minimum tightening torque of the housing connecting screw of the connection hood is 1.4Nm! Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 66 Ensure that the functional earth (FE) is connected correctly. Unimpaired operation is only guar- anteed when the functional earth is connected properly. If faults cannot be cleared, the device should be switched off and protected against accidental use. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 67 To ensure degree of protection IP 65 is fulfilled, the screws of the connection hood are tightened with a tightening torque of 1.4 Nm for connecting to the BCL. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 68 The integrated parameter memory for the simple replacement of the BCL 300 is located in the MS 300. NOTE Dimensioned drawing on see chapter 5.3.6 "Dimensioned drawings of MS 3xx / MK 3xx connec- tion hoods" on Page 42. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 69 Then lead the individual wires into the terminals according to the diagram. Wire end sleeves are not necessary. NOTE Dimensioned drawing on see chapter 5.3.6 "Dimensioned drawings of MS 3xx / MK 3xx connec- tion hoods" on Page 42. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 70 The MA 100 contains a shielding terminal for the shielding connection of the KB 301-3000. NOTE Dimensioned drawing on see chapter 5.3.8 "Dimensioned drawing of MA 100 terminal box" on Page 45. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 71 HOST/BUS IN. Please make certain that the correct interface is used on the superior system. The stan- dard setting of the BCL 300 for the host interface is RS 232. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 72 Address setting as well as termination of the multiNet is done in the interior of the MK 301 Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 73 Then lead the individual wires into the terminals according to the diagram. Wire end sleeves are not necessary. NOTE Dimensioned drawing on see chapter 5.3.6 "Dimensioned drawings of MS 3xx / MK 3xx connec- tion hoods" on Page 42. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 74 Network operation BCL 301 in the Leuze multiNet plus In Leuze multiNet plus network operation, the incoming bus is connected to BUS IN and the outgoing bus to BUS OUT. If the network address of the BCL 301 is not 0, the device starts up in multiNet slave mode and attempts to make contact with a multiNet master.
  • Page 75 MK 301, termination is activated by a switch. The device address is set in multiNet via the slide or rotary switch provided for this in the MA 100, MK 301 or MS 301. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 76 Described in the following is the external wiring for use as a switching input or output; the respective func- tion assignments to the switching inputs/outputs can be found in Chapter 10. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 77 Both switching inputs/outputs SWIO_1 and SWIO_2 are configured by default in such a way that: • Switching input SWIO_1 activates the reading gate. Switching output SWIO_2 switches by default on "No Read". Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 78 The entire interconnection cable must absolutely be shielded acc. to the USB specifications. Cable length must not exceed 3 m.  Use the Leuze specific USB service cable (see chapter 13 "Type overview and accessories") for the connection and use a service PC to configure.
  • Page 79 Notice for connecting the RS 422 interface! Ensure adequate shielding. The entire interconnection cable must be shielded and earthed. The Rx+/Rx- and Tx+/Tx- wires must be stranded in pairs (Twisted Pair). Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 80 This interface is looped through to the socket or the BUS OUT terminals to connect additional participants. With its RS 485 interface, the BCL 301 is suitable for use in the Leuze multiNet plus scanner network. HOST / BUS IN RS 485 (5-pin connector, B-coded) MS 301...
  • Page 81 Termination of the RS 485 interface on the slave On the last network device, the Leuze multiNet plus network (RS 485 interface) must be terminated via a terminating resistor network (see chapter 13 "Type overview and accessories") on the BUS OUT socket or via the activation of the termination via a slide switch in the MK 301 or the MA 100.
  • Page 82 7.5.1 Wiring the multiNet plus Leuze multiNet plus connection hints Shielded, twisted pair conductors should be used for the Leuze multiNet plus. This allows a total network length of up to 1200 m. Recommended network cable (e.g. LiYCY 2x0.2mm²): - Twisted pairs, shielded - Cross section: min.
  • Page 83 0 (Adr.00). Each network device with an address > 0 is thereby automatically informed that it is a slave in the Leuze multiNet plus with this address and that it is initialized and queried by the network master. No other settings are necessary for commissioning in the Leuze multiNet plus.
  • Page 84 - No data on the host interface Red, flashing Warning set - Bar code reading possible - Self test runs for 0.25s after power up - Temporary operating fault Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 85 - Network error after initialization by the master (BCL 301 slave) Red, continuous light Network error - Slave cannot transmit any more data to the master (BCL 301 slave) Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 86 : Display changes from decoding quality to device status Press button : Display changes from device status to BUS status Press button : Bus status displayed, display stops flashing. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 87 • 2nd line: decoding quality in percent, e.g. 73% Version • 1st line: version display function SW: xxxxx HW: xxx • 2nd line: software and hardware version of the device Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 88 (HTML, JavaScript and AJAX), which are supported by all commonly used, modern browsers (e.g. Mozilla Firefox beginning with Version 4.0 or Internet Explorer beginning with Version 8.0 or Microsoft Edge), it is possible to operate the Leuze webConfig tool on any internet-ready PC. NOTE The webConfig tool is offered in 6 languages: •...
  • Page 89 CD drive and start the setup.exe program.  Alternatively, you can also download the setup program from the internet at www.leuze.com.  Follow the instructions provided by the setup program. Upon successful installation of the USB driver, an icon with the name Leuze Web Config automatically appears on the desktop.
  • Page 90 Alternatively, you can start the webConfig tool by starting the browser installed on your PC and entering the following IP address: 192.168.61.100 This is the default Leuze service address for communication with bar code readers of the BCL 300 BCL 500 series.
  • Page 91 , it is recommended that the individual modules be configured in the order presented above. Further information on commissioning can be found in chapter "Commissioning and configuration" on page 90. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 92 USB connection between the BCL 300 \ BCL 301 and a PC/ laptop. NOTE Notes on the use of the webConfig tool can be found in Chapter 9 "Leuze webConfig tool" on page 86. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 93 • Code GS1 Data Bar OMNIDIRECTIONAL • Code GS1 Data Bar LIMITED • Code GS1 Data Bar EXPANDED Deviations from these settings must be set via the webConfig tool. See "Leuze webConfig tool" on page 86. Leuze electronic GmbH + Co. KG...
  • Page 94 86. NOTE Permissible values for the network address in the Leuze multiNet plus are 1 … 31. Make certain that a different address is assigned to each multiNet plus participant. From the device address > 0 set, the BCL 301 detects that networking is required.
  • Page 95 • Configuration of up to 3 different sorting criteria. Sorting by physical data and content of the read bar codes. • Formatting of the data output for the HOST. • Formatting of the data output for the display. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 96  Configure the connected switching outputs according to your requirements. To do this, first set the I/O mode to Output and then configure the switching behavior: • Via webConfig: Configuration > Device > Switching inputs/outputs Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 97 (reconnect the voltage supply). The configuration is now imported from the external parameter memory of the connection hood and the BCL 300 \ BCL 301 is immediately operational without any further configuration. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 98 ’V’ Description Requests device version information Parameter Acknowledg- 'BCL 300i SM 100 V 1.3.8 2008-02-15' ment The first line contains the device type of the BCL 300 \ BCL 301 , followed by the device version number and version date. (The data which is actually displayed may vary from the values given here.)
  • Page 99 GS1 DataBar LIMITED ’15’ GS1 DataBar EXPANDED Number of digits of the read code zzzzzz: Contents of the decoded label. A appears if the label was not correctly read. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 100 Code 93 ’13’ GS1 DataBar OMNIDIRECTIONAL ’14’ GS1 DataBar LIMITED ’15’ GS1 DataBar EXPANDED zzzzzz: Contents of the decoded label. A appears if the label was not correctly read. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 101 ’-’: Ends the alignment mode. Acknowledg- ’yyy_zzzzzz’ ment yyy: Reading quality in %. A high process availability is ensured at read qualities > 75 %. zzzzzz: Bar code information. Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 102 ’1’ (Code 1) ’2’ (Code 2) Storage location for reference code ’0’ RAM+EEPROM, ’3’ RAM only Defined code type (see command ’CA’) Defined code information (1 … 63 characters) Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 103 ’1’ (Code 1) ’2’ (Code 2) Storage location for reference code ’0’ RAM+EEPROM, ’3’ RAM only Defined code type (see command ’CA’) Defined code information (1 … 63 characters) Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 104 (e.g., inverted logic and a state of High corresponds to a voltage of 0V at the switching output). Parameter ’OA<a>’ <a> Selected switching output [1, 2], unit (dimensionless) Acknowledg- None ment Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 105 (e.g., inverted logic and a state of High corresponds to a voltage of 0V at the switching output). Parameter ’OD<a>’ <a> Selected switching output [1, 2], unit (dimensionless) Acknowledg- None ment Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 106 Function of the switching input/ output, unit [dimensionless] ’I Switching input ’O’ Switching output ’P’ Passive Acknowledg- ’OF=<bb>’ ment <bb> Status acknowledgment ’00’ ’01’ Syntax error ’02’ Parameter error ’03’ Other error Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 107 Online commands 11.1.4 Online commands for the parameter set operations NOTE You can obtain detailed information on the parameter set of the bar code reader from Leuze on request. Copying parameter set Command ’PC’ Description This command can only be used to copy parameter sets in their entirety. This can be used to replicate the three parameter sets default, permanent and operating parameters on the basis of one another.
  • Page 108 Requested data does not (any longer) fit in the transmission buffer ’07’ Impermissible address value ’08’ Read access after end of data set ’09’ Impermissible QPF data set type Determining parameter set difference to default parameters Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 109 Status acknowledgment, unit [dimensionless] Negative ’0’ No difference ’1’ Syntax error ’2’ Impermissible command length ’6’ Impermissible combination, parameter set 1 and parameter set 2 ’8’ Invalid parameter set Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 110 Impermissible value for checksum type ’04’ Invalid check sum received ’05’ Impermissible data length ’06’ Invalid data (parameter limits violated) ’07’ Invalid start address ’08’ Invalid parameter set ’09’ Invalid parameter set type Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 111  cables laid parallel to device lines. Check max. network expansion as a  • Overall network expansion exceeded function of the max. cable lengths Table 12.2: Interface error Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 112 12.3 Service and support Service hotline You can find the contact information for the hotline in your country on our website www.leuze.com under Contact & Support. Repair service and returns Defective devices are repaired in our service centers competently and quickly. We offer you an extensive service packet to keep any system downtimes to a minimum.
  • Page 113 RS485 interface PROFIBUS DP interface Interface Ethernet interface EtherCAT interface PROFINET interface Ethernet/IP interface BCL BarCodeLeser (bar code reader) Table 13.1: BCL 300 \ BCL 301 part number code Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 114 BCL 300 R1 M 100 D With M optics and display 50116195 BCL 300 R1 F 100 D With F optics and display 50116191 Table 13.2: BCL 300 type overview Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 115 S F 100 D H With F optics, display and heating 50116296 BCL 301 S L 100 D H With L optics, display and heating 50116302 Table 13.3: BCL 301 type overview Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 116 Part no. USB service cable, 2 Type A and Mini-B type connector, KB USBA-USBminiB 50117011 length 1 m Table 13.7: Service cable for the BCL 300 \ BCL 301 Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 117 Accessory - Reflector for AutoReflAct Type designation Description Part no. Reflective tape no. 4 / Reflective tape as reflector for AutoReflAct operation 50106119 100 x 100 mm Table 13.9: Reflector for autoReflAct operation Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 118  Contact your Leuze distributor or service organization should repairs be required. The addresses can be found on the inside of the cover and on the back. NOTE When sending devices to Leuze for repair, please provide an accurate description of the error. 14.3 Disassembling, packing, disposing Repacking For later reuse, the device is to be packed so that it is protected.
  • Page 119 End of data transmission block CANCEL Invalid END OF MEDIUM End of medium SUBSTITUTE Substitution ESCAPE Escape FILE SEPARATOR File separator GROUP SEPARATOR Group separator RECORD SEPARATOR Record separator Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 120 Number Number Number Number Number COLON Colon SEMICOLON Semicolon < LESS THAN Less than EQUALS Equals > GREATER THAN Greater than QUESTION MARK Question mark COMMERCIAL AT Commercial AT Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 121 Lower case letter Lower case letter Lower case letter Lower case letter Lower case letter Lower case letter Lower case letter Lower case letter Lower case letter Lower case letter Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 122 Lower case letter Lower case letter Lower case letter Lower case letter OPENING BRACE Opening brace VERTICAL LINE Vertical line CLOSING BRACE Closing brace TILDE Tilde DELETE (RUBOUT) Delete Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 123 SC 0 77889 abcde Code type 08: EAN 128 1 122334 455666 Modul 0,3 Code type 13: GS1 DataBar OMNIDIRECTIONAL leuze Figure 15.1: Bar code sample labels (module 0.3) Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
  • Page 124 Code type 10: EAN 13 Add-on SC 2 44332 fghij Code type 08: EAN 128 Modul 0,5 0 099887 766550 LEUZE Figure 15.2: Bar code sample labels (module 0.5) Leuze electronic GmbH + Co. KG BCL 300 \ BCL 301...
