A-128-17
Serial Numbers S6914 and up
Updated March 16, 2021

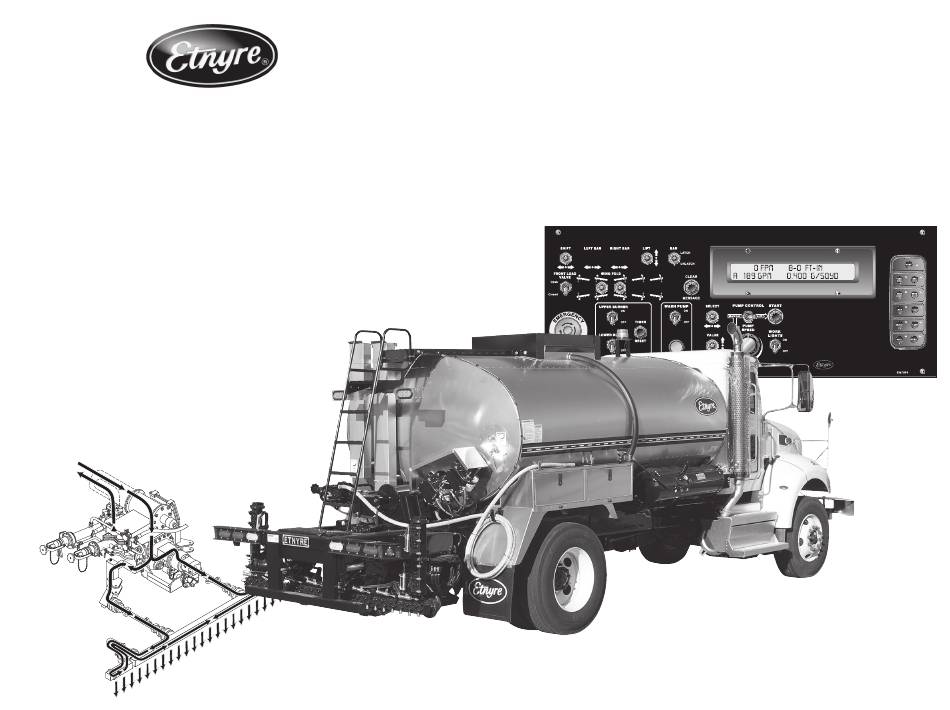

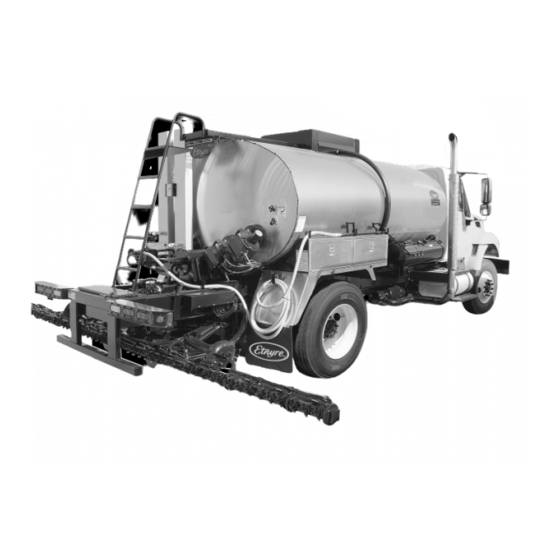

BLACK-TOPPER
®
Flow Charts and Control Positions
Standard Spraybar
with
BT-1 Keypad Controls
E. D. ETNYRE & CO.
1333 S. Daysville Road, Oregon, Illinois 61061
Phone: 815/732-2116 Fax: Sales 815-732-7400
email: CustomerService@etnyre.com www.etnyre.com
Advertisement
Table of Contents
Related Manuals for Etnyre Black-Topper
Summary of Contents for Etnyre Black-Topper
- Page 1 Serial Numbers S6914 and up Updated March 16, 2021 BLACK-TOPPER ® Flow Charts and Control Positions Standard Spraybar with BT-1 Keypad Controls E. D. ETNYRE & CO. 1333 S. Daysville Road, Oregon, Illinois 61061 Phone: 815/732-2116 Fax: Sales 815-732-7400 email: CustomerService@etnyre.com www.etnyre.com...
-
Page 2: Etnyre Spray Bar Nozzles
Etnyre Spray Bar Nozzles Application Application US Flow Ref. Part No. Description Gallons Per (Metric) Liters Per Gallons Per Square Yard Square Meter Minute Per Foot 3353788 V Slot Tack Nozzle 1/8” Rifle Bored .05 - .20 .23 - .91 3.0 to 4.5... -
Page 3: Table Of Contents
Suckback Handspray ..........13 If you have any questions regarding this pamphlet or the Unload (with External Pump) ........14 operation of your unit, contact your Etnyre dealer or the E. D. Etnyre Service Department at 1-800-995-2116. Unload (with Distributor Pump)........15 Transfer ..............16 Flushing ..............17... -
Page 4: Bar Suck Back Override
Bar Suck Back Override This feature is designed for quick in-cab switching between bar circulate and bar suck back for units equipped with automatic tank and bar suck back valves. When the SUCK BACK OVERRIDE switch is ON, all automatically controlled valves are set to their correct positions for SUCK BACK. -
Page 5: Control Panels
START button is pressed. - are set for the desired operation. The asphalt pump stops, and, when the PUMP CONTROL Use the Black-Topper Computator App when Rear Control Panel is in AUTO, the stored asphalt pump rate target spraying in MANUAL control (www.etnyre. -
Page 6: Load Through Manhole
Load through Manhole WARNING To prevent possible injury, always open the manhole cover slowly. Pressure build up in the tank may cause the cover to burst open. -
Page 7: Load Through Load Line
Load through Load Line The instructions represented here are a guide and not designeded to be comprehensive. Rear Panel Refer to M-103-17 Centennial Operation • POWER switch (E Stop) ON Manual for complete instructions. • PUMP CONTROL switch MANUAL • PUMP SPEED knob zero (fully counterclockwise) •... -
Page 8: Circulate In Tank
Circulate In Tank The instructions represented here are a guide and not designeded Rear Panel to be comprehensive. Refer to • POWER switch (E Stop) ON M-103-17 Centennial Operation Manual for complete instructions. • PUMP CONTROL switch AUTO • PUMP SPEED knob zero (fully counterclockwise) •... -
Page 9: Circulate In Bar
Circulate In Bar The instructions represented here are a guide and not designeded to be comprehensive. Refer to M-103-17 Centennial Operation Manual for complete Rear Panel instructions. • POWER switch (E Stop) ON • PUMP CONTROL switch AUTO • PUMP SPEED knob zero (fully counterclockwise) •... -
Page 10: Spray
Spray NOTE: Unit should already be operating in Bar Circulate and circulating oil to be ready to spray 4 WayValve BAR CIRC (Keyway in 6 o’clock position - with Spray switch ON) The instructions represented here are a guide and not designeded to be comprehensive. -
Page 11: Suckback Spraybar
Suckback Spraybar Bleeder Valve The instructions is last flip lever represented here valve on wings. are a guide and not designeded to be comprehensive. Refer to M-103-17 Centennial Rear Panel Operation Manual • POWER switch (E Stop) ON for complete Open and close left instructions. -
Page 12: Handspray
Handspray For safety reasons, it is recommended to use Auto function while handspraying. The instructions represented here Cab Panel Rear Panel are a guide and not designeded to be comprehensive. Refer to • POWER switch ON • POWER switch (E Stop) ON M-103-17 Centennial Operation •... -
Page 13: Suckback Handspray
Suckback Handspray The instructions represented here are a guide and not designeded Cab Panel Rear Panel to be comprehensive. Refer to • POWER switch ON • POWER switch (E Stop) ON M-103-17 Centennial Operation • 200 GPM - adjust using •... -
Page 14: Unload (With External Pump)
Unload with External Pump (Gravity) 4 WayValve TANK CIRC (Keyway in 12 o’clock position - with Spray Connect Load Line to the Storage Tank switch ON) pump or distributor you wish to transfer to. Do not remove Load Line cap if front or rear tank valve is open. -
Page 15: Unload (With Distributor Pump)
Unload with Distributor Pump The instructions represented here Rear Panel are a guide and not designeded • POWER switch (E Stop) ON to be comprehensive. Refer to M-103-17 Centennial Operation • Press UNLOAD on Function keypad Manual for complete instructions. •... -
Page 16: Transfer
Transfer Pump Rear Panel The instructions represented here are a guide and not designeded to be • POWER switch (E Stop) ON comprehensive. Refer to M-103-17 • Press TRANSFER on Function keypad Centennial Operation Manual for • PUMP CONTROL switch AUTO complete instructions. -
Page 17: Flushing
Flushing Pump LOAD Rear Panel • POWER switch (E Stop) ON • PUMP CONTROL switch AUTO The instructions represented here are a guide • PUMP SPEED knob zero (fully counterclockwise) and not designeded to be comprehensive. Refer • Press LOAD on Function keypad to M-103-17 Centennial Operation Manual for •... -
Page 18: Flushing Bar
Flushing The instructions represented here are a guide and not designeded to be comprehensive. Rear Panel Refer to M-103-17 • POWER switch (E Stop) ON Centennial Operation • Press FLUSH on Function keypad Manual for complete • PUMP CONTROL switch AUTO instructions. -
Page 19: Front Fill (Optional Equipment)
Front Load (optional equipment) The instructions represented here Rear Panel are a guide and not designeded • POWER switch (E Stop) ON to be comprehensive. Refer to M-103-17 Centennial Operation • Press TANK CIRC on Function keypad Manual for complete instructions. •...
