Etnyre Black-Topper Manual

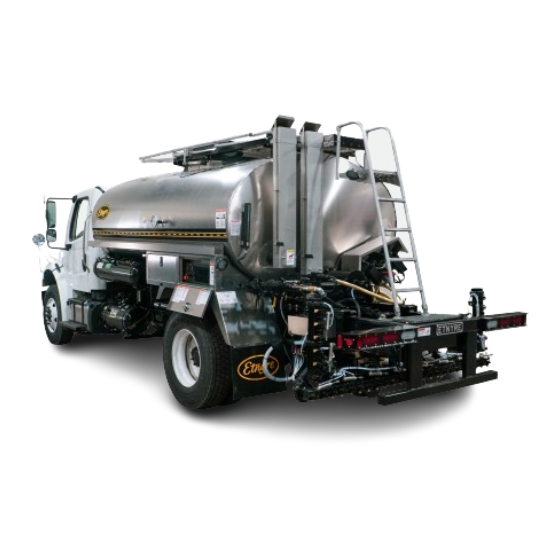

Asphalt distributor with touch screen controls
Hide thumbs Also See for Black-Topper:

Advertisement

Quick Links

Download this manual
M-103-2-23
For Distributors
with Touch Screen Controls
Black-Topper
®
Asphalt Distributor
With Touch Screen Controls
Smart Clean Recirculating Flushing System
with All-In-One valve
Smart Clean Flow Diagrams......................1
Valve Locations.........................................2
Smart Clean Operations...........................3
Suck Back Procedure............................4-5
Asphalt Pump Smart Clean Procedure.....7
...8
Smart Clean Repair Parts.........................10
E.D. ETNYRE & CO. - 1333 S. Daysville Road - Oregon, Illinois 61061
Phone: 815-732-2116 or 800-995-2116 - Fax: 800-521-1107 - www.etnyre.com
PARTS / SERVICE: 888-586-1899 • CustomerService@etnyre.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the Black-Topper and is the answer not in the manual?

Questions and answers

Related Manuals for Etnyre Black-Topper

Summary of Contents for Etnyre Black-Topper

  • Page 1: Table Of Contents

    Empty Smart Clean Tank Into Main Tank..9 Adjusting Preset Smart Clean Functions..9 Smart Clean Repair Parts......10 E.D. ETNYRE & CO. – 1333 S. Daysville Road – Oregon, Illinois 61061 Phone: 815-732-2116 or 800-995-2116 – Fax: 800-521-1107 – www.etnyre.com PARTS / SERVICE: 888-586-1899 • CustomerService@etnyre.com...
  • Page 2 STRAINER BOX SMART CLEAN TANK 4 WAY VALVE 3 OPEN 2 CLOSED FLOW DIAGRAM - SMART CLEAN 9307121 E. D. ETNYRE & CO. REAR SUCTION = CLOSED VALVE = OPEN VALVE = CLOSE OREGON, IL. 61061 TANK RETURN = OPENED...

  • Page 4: Smart Clean Operations

    Smart dure(s) on pages 4 and 5 (also found in M-103-22 Clean tank, pumps it through the circulating system series Black-Topper Operation manuals) before and spray bar and returns the solvent to the Smart starting the Smart Clean operation.
  • Page 5 Spray Bar Suck Back to migrate into the strainer box and over to the asphalt pump. Refer to Figure 1 for the following procedures. 12. At this time while the wash down pump is running 1. Park the Distributor and set the parking brake. and suck back is in auto, change the pump con- The Engine must be running and the optional trol from auto to manual, and increase the pump...

  • Page 6: Suck Back Procedure

    WARNING To prevent possible burns from hot asphalt spray, do not stand, or allow anyone to stand, where accidental opening of a valve may cause contact with hot asphalt. CAUTION When using rear pump control, engine RPM changes will affect asphalt pump speed. Handspray Valve Positions HANDSPRAY SUCK BACK...

  • Page 7: Spray Bar Smart Clean Procedure

    Spray Bar Smart Clean b. Put the PUMP CONTROL to MANUAL. c. Press Start. At the cab control panel: d. Slowly turn speed up until Smart Clean tank starts to empty (near 150 GPM). Turn on the POWER switch. e. Turn the PUMP SPEED CONTROL back to At the rear control panel: AUTO to stop the pump.
  • Page 8 Asphalt Pump Smart Clean b. Put the PUMP CONTROL to MANUAL. c. Press Start. At the cab control panel: d. Slowly turn speed up until Smart Clean tank starts to empty (near 150 GPM). Turn the POWER switch ON. e. Turn the PUMP SPEED CONTROL back to At the rear control panel: AUTO to stop the pump.
  • Page 9 Figure 3. SmartClean Bar Clean Cycle Steps Figure 2. SmartClean Bar Clean Button Figure 5. SmartClean Pump Clean Cycle Steps Figure 4. SmartClean Pump Clean Button...

  • Page 10: Empty Smart Clean Tank Into Main Tank

    WARNING To prevent possible burns from foaming or violent eruption: 3. Tap the oval Etnyre Logo home button to exit Do not transfer the contents of the Smart Setup screens and return to the home screen. Clean Tank if the material temperature in the Asphalt Tank is over 200ºF or if water and/or...
  • Page 11 Smart Clean Recirculating Flushing System - Optional PART NO QTY DESCRIPTION PART NO QTY DESCRIPTION 2610041 BRKT ASSEMBLY-MT, FUEL TANK 5005423 DECAL-FILL W/RELEASE AGNT ONLY 3383153 TANK 6002390 NUT-HEX SER FLG,.38NC PD 2600376 HANDLE-ASM 6605204 CAP-FILLER,FUEL TANK 6605258 VALVE-BALL,DBL ACT,1"NPT,AIR 6100880-05 BOLT-WIZ,0.375UNCX1.50 GR5,PD 0108686...
