User manual, Controlmini
Avoid touching dangerous voltages in the event of a fault!
▪ Installation may only be carried out by qualified electricians!
Check that there is no voltage before starting work!
▪
Route cables so that low voltage wires are dependably protected against mains
▪
voltage.

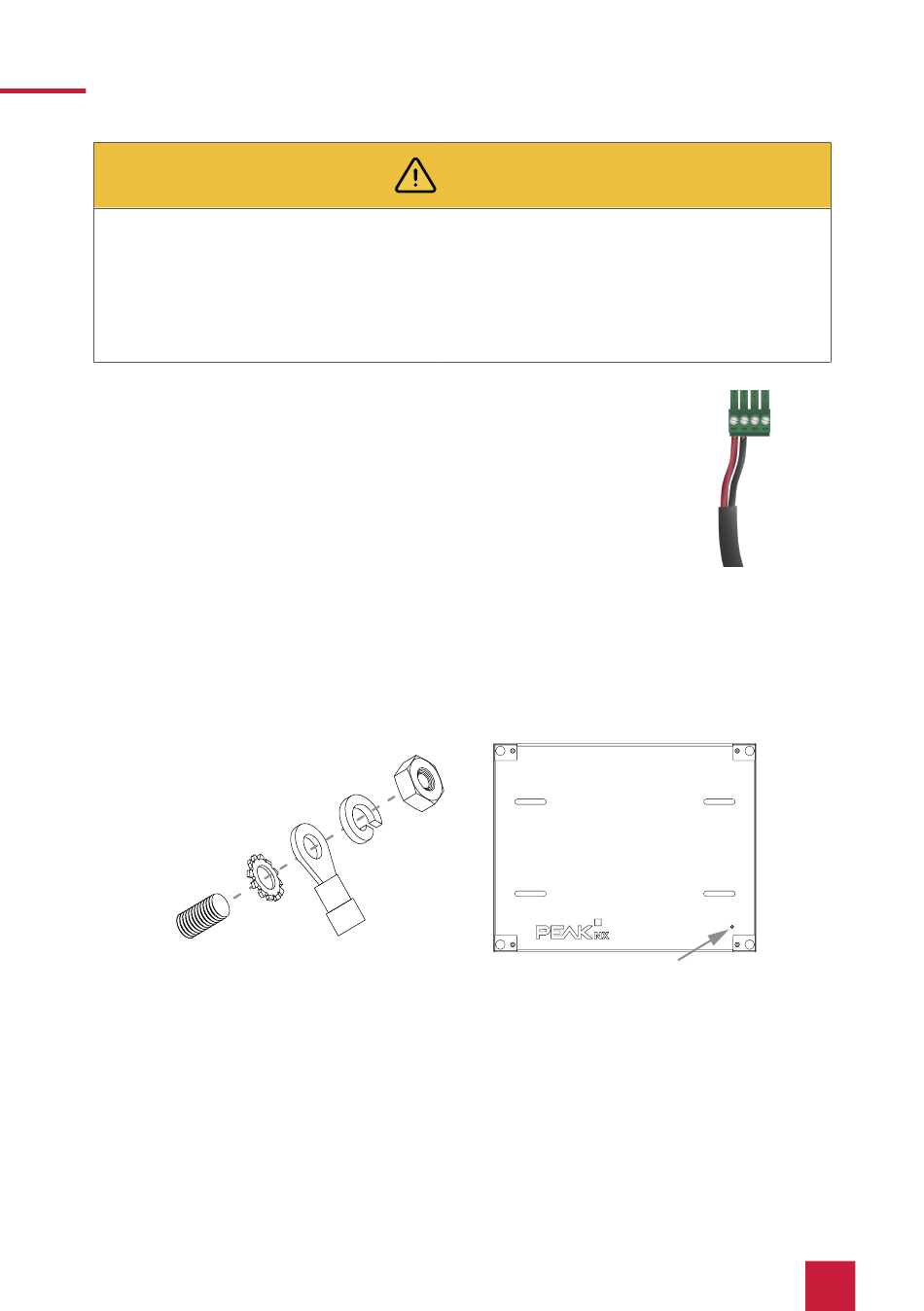

1. Place the power supply unit (PNX12-10011) in the flush-mounted box.
2. Connect the 24 V side of the power supply unit with the plug-in screw
terminal included in the scope of delivery. Please pay attention to the
polarity.
3. Connect the mains cable to the 230 V side of the power supply unit.
4. Grounding
− When using a power supply unit in the flush-mounted box of the Controlmini:
− Connect the grounding in the flush-mounted box. Use the supplied grounding set:
Warning
