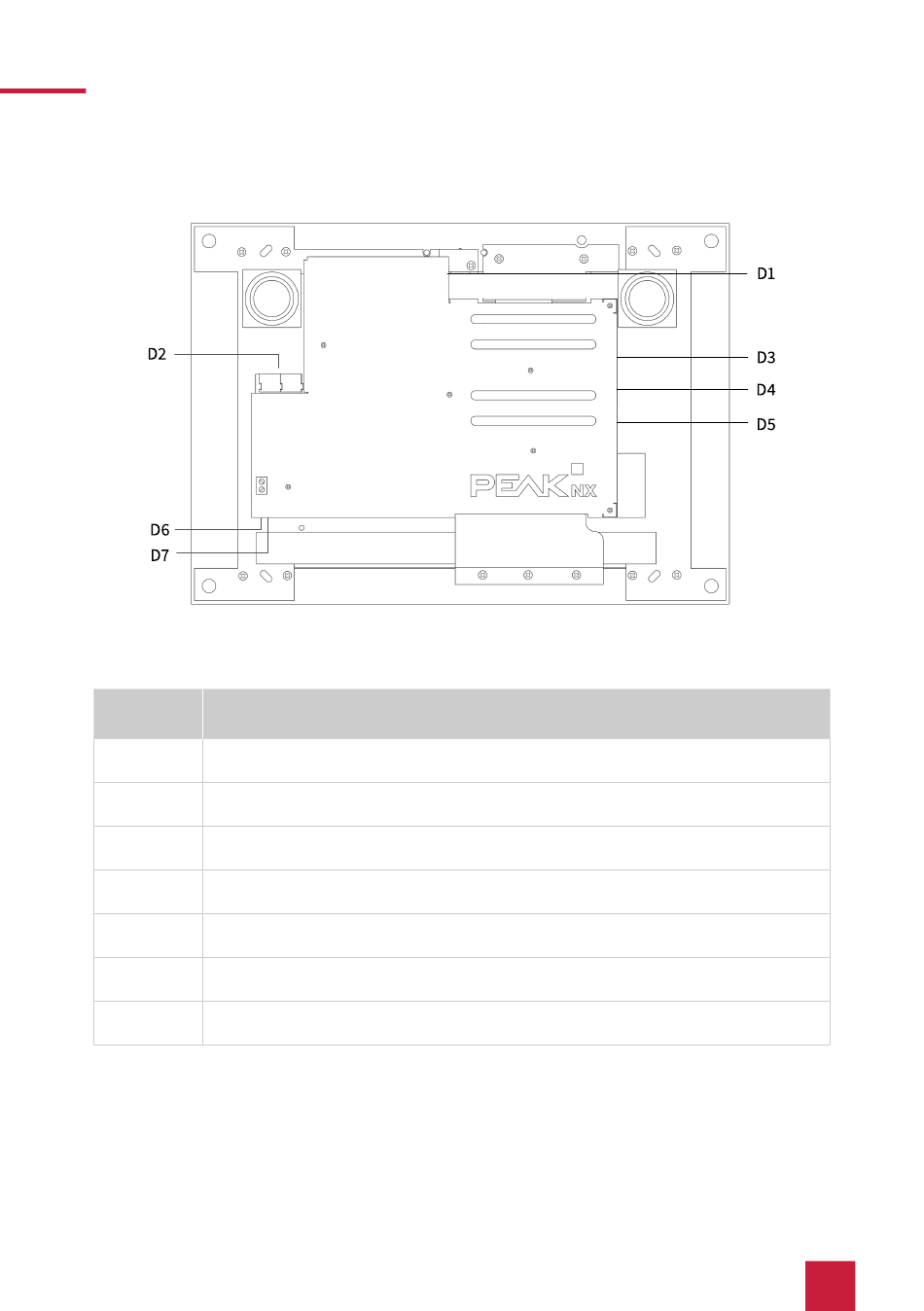

3.6 Touch panel, rear view

Position
Description
D1
100 Mbit Ethernet port
D2
2 x KNX-Wago 243-211 installation terminal
D3
Mini HDMI
D4
Micro SD slot
D5
USB 3.0
D6
Panel power supply: 24 V DC
D7
Panel power supply: GND
12
