6.1 Preparation

Note: We recommend hedging the panel, since in rare cases the panel must be taken com-


pletely from the power supply, see section 9.1.2 Disconnecting the panel from the power supply
Necessary accessories for the installation of the panel:
▪ Flush-mounted box (PNX12-10004) or surface-mounted frame (PNX12-10005)
Glass cover
▪
Power supply unit 24 V DC for DIN rail (PNX12-10010) (recommended)
▪
or
Power supply unit 24 V DC for the flush-mounted box (PNX12-10011)
▪

6.2 Flush-mounted installation

Tip: Choose the installation height of the panel according to the height of the primary user

so that the top edge of the panel is at his/her eye level. A slightly lower screen prevents fatigue
of the arms during operation.

6.2.1 Installation in brickwork

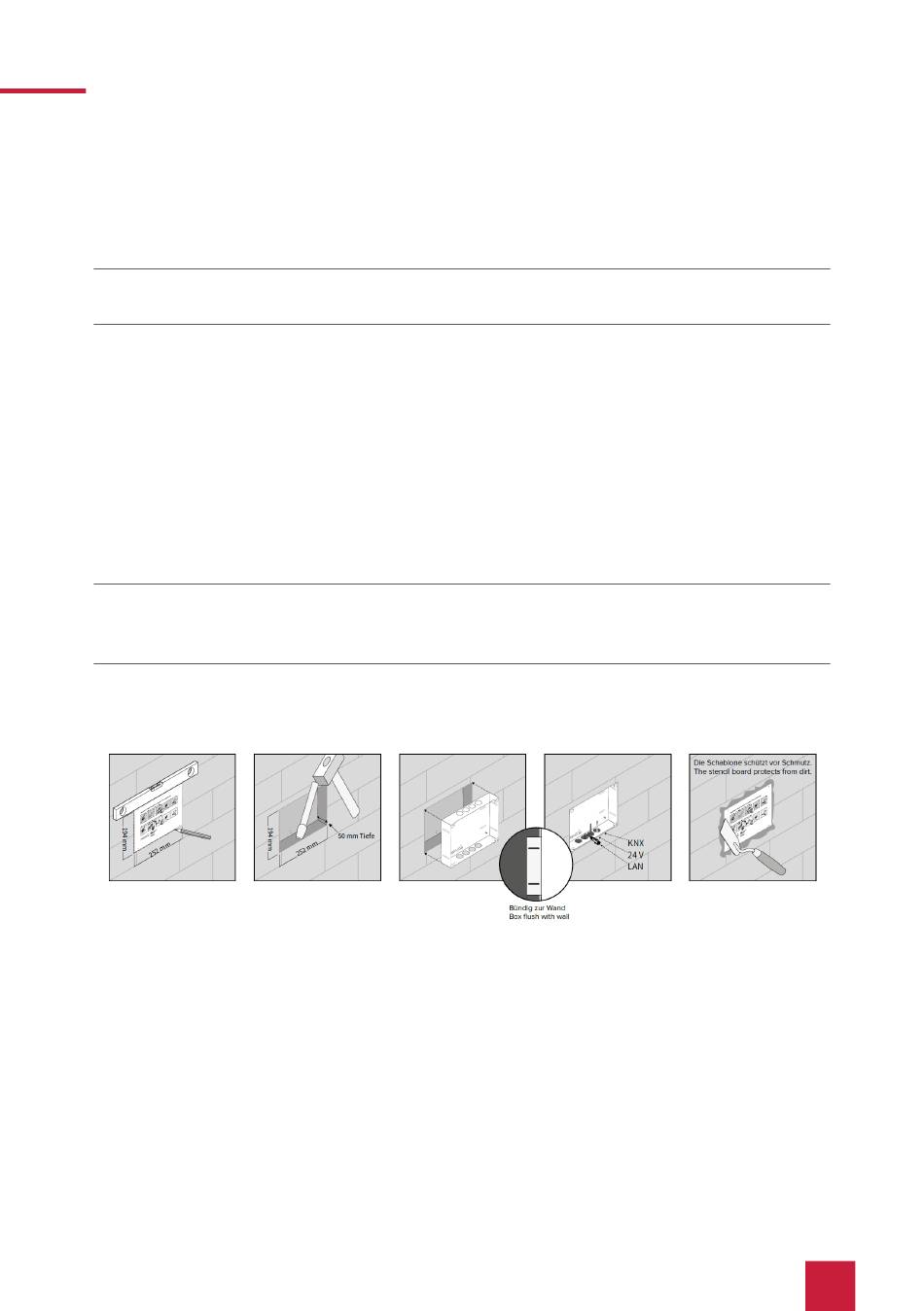

1. Make a recess of H x W x D: 194 x 252 x 50 mm in the wall. Therefore, use the template
provided. The flush-mounted box must later be flush with the wall.
2. Depending on the cable position, press the circular plates at the top or bottom out of the
box and insert the supplied self-sealing grommets to prevent damage to the cable.
3. When inserting the flush-mounted box, route the supply and communication cables (Ether-
net, KNX) through different holes in the flush-mounted box to avoid possible interference.
4. Use the template as a splash guard during the filling of the edges.
