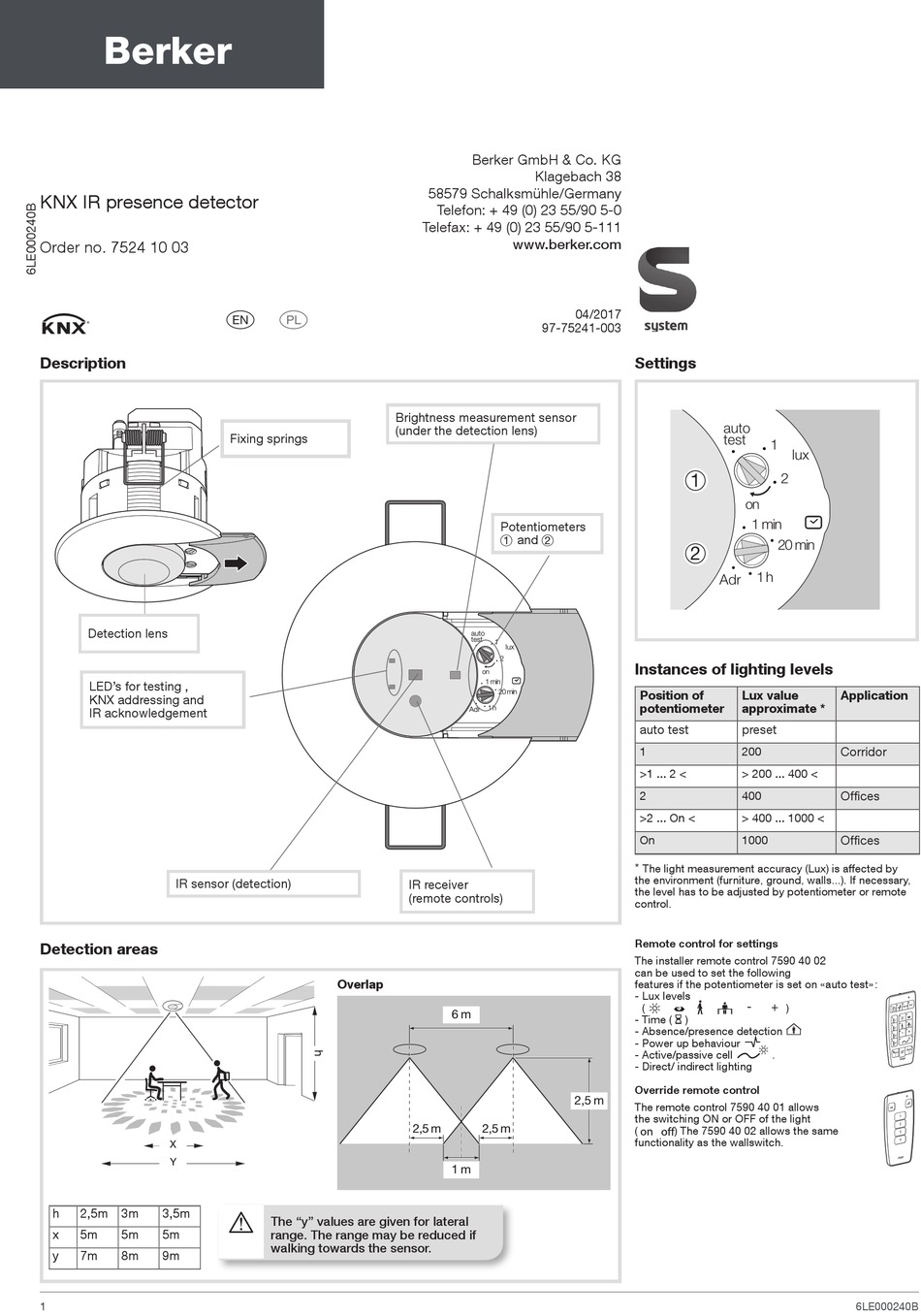

Berker 7524 10 03 Quick Start Manual

KNX IR presence detector
Order no. 7524 10 03
Description
Detection lens
LED's for testing ,
KNX addressing and
IR acknowledgement
IR sensor (detection)
Detection areas
X
Y
h 2,5m 3m 3,5m
x 5m 5m 5m
y 7m 8m 9m
1
z m
Brightness measurement sensor
(under the detection lens)
Fixing springs
Overlap
q
The "y" values are given for lateral
range. The range may be reduced if
walking towards the sensor.
Berker GmbH & Co. KG
Klagebach 38
58579 Schalksmühle/Germany
Telefon: + 49 (0) 23 55/90 5-0
Telefax: + 49 (0) 23 55/90 5-111
www.berker.com
04/2017
97-75241-003
Potentiometers
1 and 2
auto
test
1
lux
2
on
1 min
20 min
1 h
Adr
IR receiver
(remote controls)
6 m
2,5 m
2,5 m 2,5 m
1 m
Settings
auto
test
1
lux
2
1
on
1 min
20 min
2
1 h
Adr
Instances of lighting levels
Position of Lux value
potentiometer approximate *
auto test preset
1 200
>1 ... 2 < > 200 ... 400 <
2 400
>2 ... On < > 400 ... 1000 <
On 1000
*
The light measurement accuracy (Lux) is affected by
the environment (furniture, ground, walls...). If necessary,
the level has to be adjusted by potentiometer or remote
control.
Remote control for settings
The installer remote control 7590 40 02
can be used to set the following
features if the potentiometer is set on «auto test» :
- Lux levels
( )
- Time ( )
- Absence/presence detection
- Power up behaviour
- Active/passive cell .
- Direct/ indirect lighting
Override remote control
The remote control 7590 40 01 allows
the switching ON or OFF of the light
( ) The 7590 40 02 allows the same
functionality as the wallswitch.
X
ech40%
Application
Corridor
Offices
Offices
+
-
M
+
-
6LE000240B
