Installation Manual For CFB.2300
NOTICE TO HOMEOWNER
• We recommend that this product is installed by a qualified
professional plumber.
• Please check this product immediately to ensure that it has
not been damaged and is complete. Before installation, please
make sure this product is the correct model and you have all
the parts required for installation and use.
• Please flush the water system to ensure that no metal swarf,
solder, and other impurities can enter the product.
• Turn off water supply before commencing work.
• Please read these instructions carefully and retain for future
reference.
BEFORE YOU BEGIN
• You must observe all local plumbing laws and codes.
• Do not install this valve if it does not meet local plumbing codes.
• Shut off the main water supply.
Ver. 2.54
www.isenbergfaucets.com

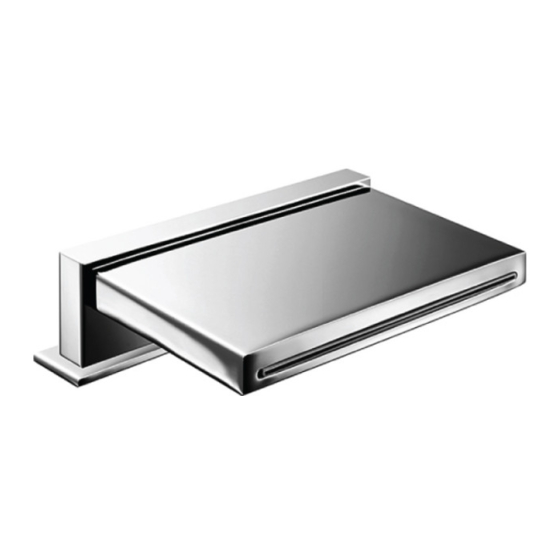

Deck Mount Sheet Flow Tub Filler
Made For Responsible Luxury
