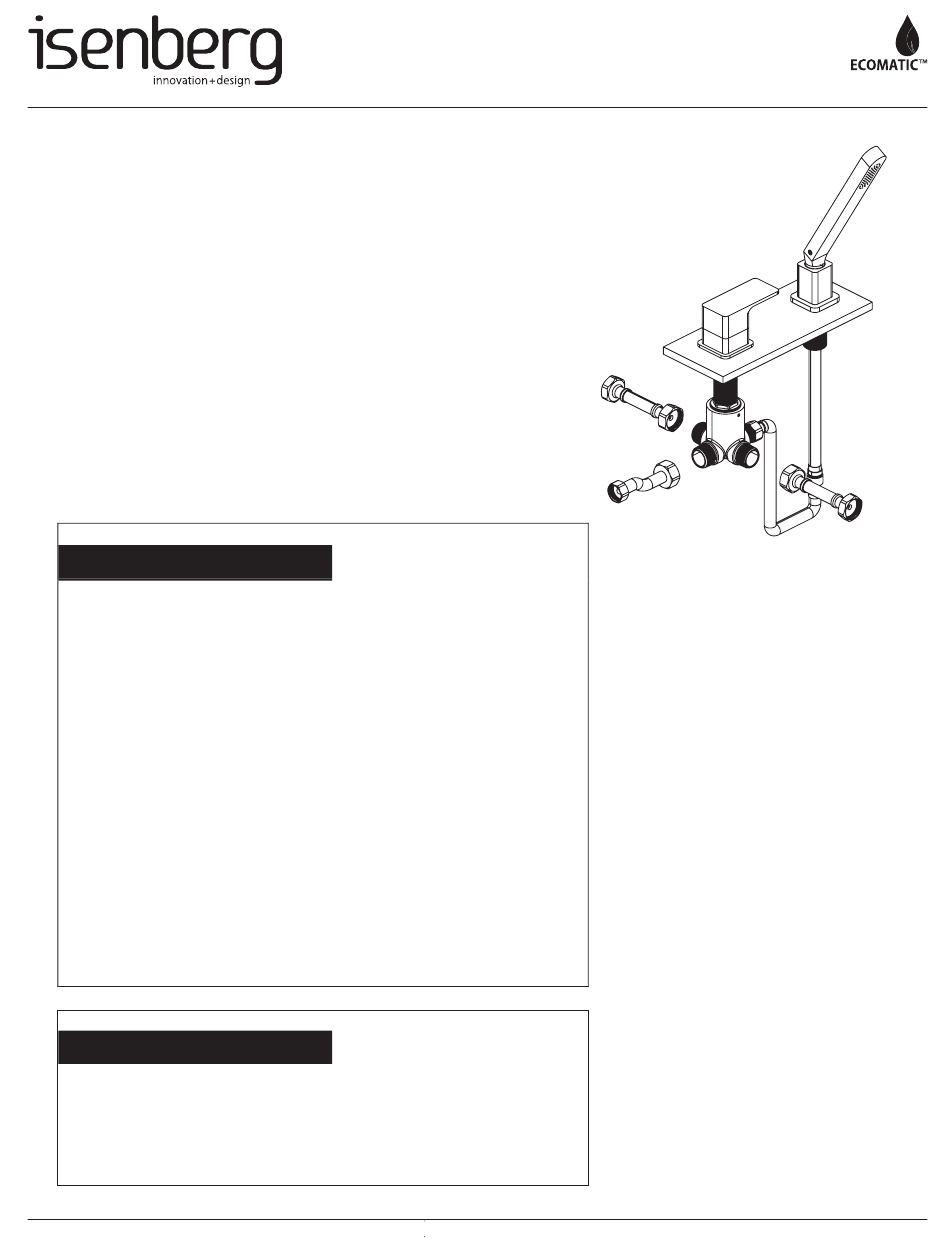

Installation Manual For 196.1280
Deck Diverter Trim With Hand Shower
NOTICE TO HOMEOWNER
We recommend that this product is installed by a qualified
•
professional plumber.
•
Please check this product immediately to ensure that it has
not been damaged and is complete. Before installation, please
make sure this product is the correct model and you have all
the parts required for installation and use.
•
Please flush the water system to ensure that no metal swarf,
solder, and other impurities can enter the product.
• Turn off water supply before commencing work.
Please read these instructions carefully and retain for future
•
reference.
BEFORE YOU BEGIN
•
You must observe all local plumbing laws and codes.
•
Do not install this valve if it does not meet local plumbing codes.
•
Shut off the main water supply.
Ver. 2.53
www.isenbergfaucets.com
* Deck Diverter Valve Sold
Separately
Made For Responsible Luxury
Advertisement
Related Manuals for Isenberg ECOMATIC 196.1280
Summary of Contents for Isenberg ECOMATIC 196.1280
- Page 1 Made For Responsible Luxury Installation Manual For 196.1280 Deck Diverter Trim With Hand Shower NOTICE TO HOMEOWNER * Deck Diverter Valve Sold Separately We recommend that this product is installed by a qualified • professional plumber. • Please check this product immediately to ensure that it has not been damaged and is complete. Before installation, please make sure this product is the correct model and you have all the parts required for installation and use. • Please flush the water system to ensure that no metal swarf, solder, and other impurities can enter the product. • Turn off water supply before commencing work. Please read these instructions carefully and retain for future • reference. BEFORE YOU BEGIN • You must observe all local plumbing laws and codes. • Do not install this valve if it does not meet local plumbing codes. • Shut off the main water supply. Ver. 2.53 www.isenbergfaucets.com...
- Page 2 Made For Responsible Luxury Installation Manual For 196.1280 Deck Diverter Trim With Hand Shower TABLE OF CONTENTS • OPERATING SPECIFICATIONS . . . . . . . 1 • INSTALLING THE HAND HELD & HOSES . . . . . • INSTALLING THE DECK DIVERTER AND TRIM . .. . . . • HOSE INSTALLATION . . . . . . . . •...
- Page 3 Made For Responsible Luxury OPERATING SPECIFICATIONS WATER TEMPERATURE WATER PRESSURE This product is to be used with water at This product is to be used with a water pressure range of 15 PSI to 80 PSI ONLY a temperature range of 40˚F - 120˚F ONLY! If water pressure is greater than 80 PSI install a pressure reducing valve (PRV) This valve meets or exceeds ANSI A112.18.1 and ASSE 1016 www.isenbergfaucets.com...
- Page 4 Made For Responsible Luxury INSTALLING THE HAND HELD & HOSE Insert nut and washers and tighten to secure Hand Shower Holder. Insert hose through the hand shower holder. www.isenbergfaucets.com...
- Page 5 Made For Responsible Luxury INSTALLING THE HAND HELD & HOSE Attach second hose and hand held. Attach weight (optional) www.isenbergfaucets.com...
- Page 6 Made For Responsible Luxury INSTALLING THE DECK DIVERTER AND TRIM Assemble threaded connector as seen below insert extender and tighten screw. The and tighten hex nut. DKM.2420 valve sold deck diverter is now ready to install onto seperately. the deck. www.isenbergfaucets.com...
- Page 7 Made For Responsible Luxury INSTALLING THE DECK DIVERTER AND TRIM Insert assembled deck diverter through deck Twist and insert handle base onto assembled hole. Tighten hand shower hose onto deck deck diverter. diverter valve www.isenbergfaucets.com...
- Page 8 Made For Responsible Luxury INSTALLING THE DECK DIVERTER AND TRIM Insert handle and tighten hex screw to secure Completely Installed handle set is seen here. handle onto deck diverter. www.isenbergfaucets.com...
- Page 9 Made For Responsible Luxury HOSE INSTALLATION CARTRIDGE REPLACEMENT Bottom View Retaining 3/4” To Hot Valve 3/4” 1/2” 3/4” 3/4” 1/2” To Tub Spout 3/4” To Cold Valve Attach & tighten hoses as seen above. Loosen and remove hex nut to and retaining nut to remove cartridge. www.isenbergfaucets.com...
