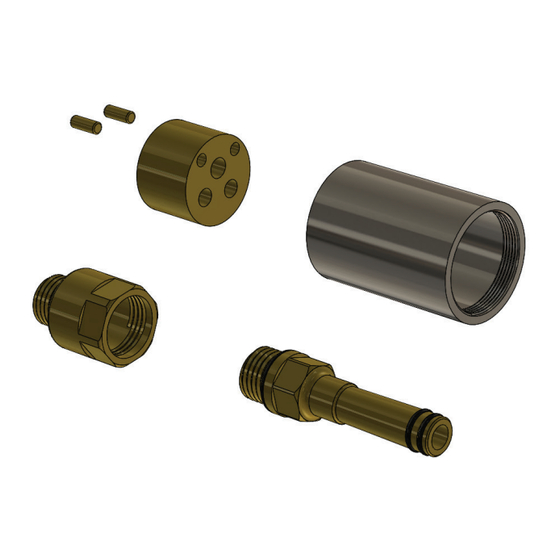

Wall Mount Lavatory Faucet Extension Kit
Ver. 2.54
www.isenbergfaucets.com
Installation Manual
160.1800E
BEFORE YOU BEGIN
•
You must observe all local plumbing laws and codes.
•
Do not install this valve if it does not meet local plumbing codes.
•
Shut off the main water supply.
Advertisement
Table of Contents
Related Manuals for Isenberg 160.1800E
Summary of Contents for Isenberg 160.1800E
- Page 1 Installation Manual 160.1800E Wall Mount Lavatory Faucet Extension Kit BEFORE YOU BEGIN • You must observe all local plumbing laws and codes. • Do not install this valve if it does not meet local plumbing codes. • Shut off the main water supply. Ver. 2.54 www.isenbergfaucets.com...
- Page 2 TABLE OF CONTENTS • Installing Extensions to the Valve . . . . . . . 1 NOTICE TO HOMEOWNER • We recommend that this product is installed by a qualified professional plumber. • Please check this product immediately to ensure that it has not been damaged and is complete. Before installation, please make sure this product is the correct model and you have all the parts required for installation and use. • Please flush the water system to ensure that no metal swarf, solder, and other impurities can enter the product. • Turn off water supply before commencing work. • Please read these instructions carefully and retain for future reference. www.isenbergfaucets.com...
- Page 3 INSTALLING EXTENSIONS TO THE VALVE - OPTIONAL Remove existing parts as seen above Insert cartridge extension and guide pins Ensure 3 o-rings are placed in the above seen Insert extended cartridge cover position - use grease if necessary www.isenbergfaucets.com...
- Page 4 INSTALLING EXTENSIONS TO THE VALVE - OPTIONAL Insert cartridge and tighten Insert output connector extension Fully installed extension is seen above www.isenbergfaucets.com...
