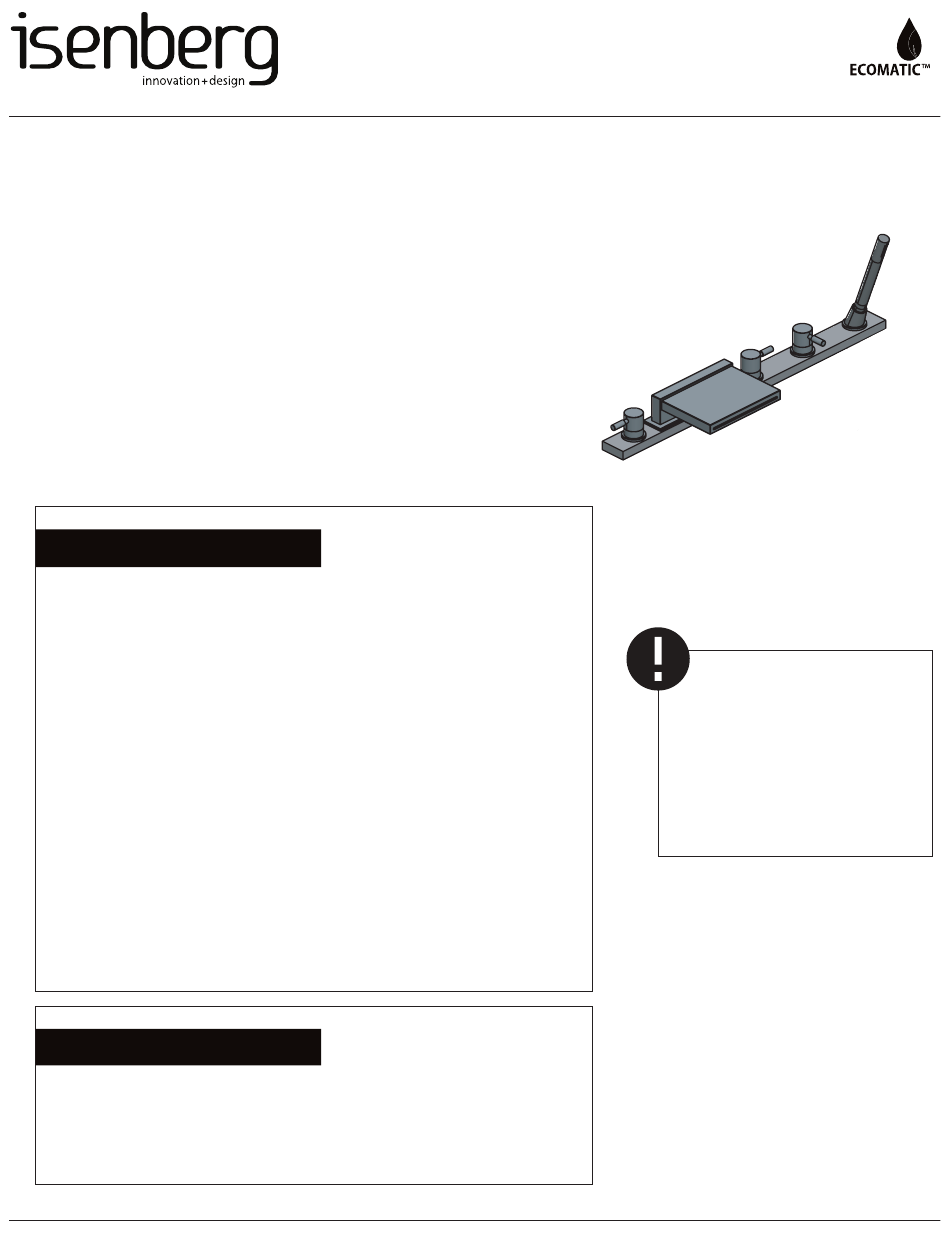

Installation Manual For 100.2420CF
5-Hole Deck Mounted Cascade
Sheet Flow Roman Tub Filler
NOTICE TO HOMEOWNER
• We recommend that this product is installed by a qualified
professional plumber.
• Please check this product immediately to ensure that it has
not been damaged and is complete. Before installation, please
make sure this product is the correct model and you have all
the parts required for installation and use.
• Please flush the water system to ensure that no metal swarf,
solder, and other imputities can enter the product.
• Turn off water supply before commencing work.
• Please read these instructions carefully and retain for future
reference.
BEFORE YOU BEGIN
• You must observe all local plumbing laws and codes.
• Do not instal valve if it does not meet local plumbing codes.
• Shut off the main water supply.
Ver. 2.54
www.isenbergfaucets.com
Made For Responsible Luxury
UNDER DECK ACCESS
PANEL IS REQUIRED FOR
MAINTENANCE AND
REPAIR OF DIVERTER
MECHANISM AND
CARTRIDGES
Advertisement
Related Manuals for Isenberg Ecomatic 100.2420CF
Summary of Contents for Isenberg Ecomatic 100.2420CF
- Page 1 Made For Responsible Luxury Installation Manual For 100.2420CF 5-Hole Deck Mounted Cascade Sheet Flow Roman Tub Filler NOTICE TO HOMEOWNER • We recommend that this product is installed by a qualified professional plumber. • Please check this product immediately to ensure that it has UNDER DECK ACCESS not been damaged and is complete. Before installation, please PANEL IS REQUIRED FOR make sure this product is the correct model and you have all MAINTENANCE AND the parts required for installation and use. REPAIR OF DIVERTER MECHANISM AND • Please flush the water system to ensure that no metal swarf, CARTRIDGES solder, and other imputities can enter the product. • Turn off water supply before commencing work. • Please read these instructions carefully and retain for future reference. BEFORE YOU BEGIN • You must observe all local plumbing laws and codes. • Do not instal valve if it does not meet local plumbing codes. • Shut off the main water supply. Ver. 2.54 www.isenbergfaucets.com...
- Page 2 Made For Responsible Luxury Installation Manual For 100.2420CF 5-Hole Deck Mount Cascade Sheet Flow Roman Tub Filler TABLE OF CONTENTS OPERATING SPECIFICATIONS . . . . . . . . . . . . . . . 3 INSTALLING THE HOT & COLD HANDLES . . . . . . . . . . . . 4 INSTALLING THE CASCADE TUB FILLER ...
-
Page 3: Operating Specifications
Made For Responsible Luxury OPERATING SPECIFICATIONS WATER TEMPERATURE WATER PRESSURE This product is to be used with water This product is to be used with a water at a temperature range of 40° F - 120° F pressure range of 15 PSI to 80 PSI ONLY ONLY! If water pressure is greater than 80 PSI, install a pressure reducer valve (PRV) This valve meets or exceeds ANSI A112.18.1 and ASSE 1016 www.isenbergfaucets.com... - Page 4 Made For Responsible Luxury INSTALLING THE HOT & COLD HANDLES Install nut and washer onto valve Install valve into 1-3/8” hole from below the deck Insert trim ring Install handle riser www.isenbergfaucets.com...
- Page 5 Made For Responsible Luxury INSTALLING THE HOT & COLD HANDLES Install body from top of deck and twist to tighten Tighten nut and washer from bottom of deck Install screw from top of deck and tighten Unscrew handle and set-screw www.isenbergfaucets.com...
- Page 6 Made For Responsible Luxury INSTALLING THE HOT & COLD HANDLES Install handle from top of deck and tighten Tighten handle set-screw Twist to verify smooth operation Ver. 2.53 www.isenbergfaucets.com...
- Page 7 Made For Responsible Luxury INSTALLING THE HANDLES & DIVERTER Install second handle Insert diverter nut and attachment from bottom Install the diverter from bottom www.isenbergfaucets.com...
- Page 8 Made For Responsible Luxury INSTALLING THE HANDLES & DIVERTER Install body from top of deck and twist to tighten Install the screw & extension Install handle from top of deck and tighten set-screw www.isenbergfaucets.com...
- Page 9 Made For Responsible Luxury INSTALLING THE TUB SPOUT The Cascade is seen above. Remove components from bottom of Cascade. Insert Cascade into deck hole, then insert washers and tighten retaining nut www.isenbergfaucets.com...
- Page 10 Made For Responsible Luxury INSTALLING THE HAND SHOWER Drop hand shower deck holder into deck hole Insert & Tighten nut and washers from bottom of deck Drop hose down through deck hole Attach hose to hand shower www.isenbergfaucets.com...
-
Page 11: Installing The Hoses
Made For Responsible Luxury INSTALLING THE HOSES Connect 2nd piece of hand shower hose Connect hand shower hose to valve Connect Cascade to valve www.isenbergfaucets.com... - Page 12 Made For Responsible Luxury INSTALLING THE HOSES Connect hot side to diverter valve Connect cold side to diverter valve Connect hot & cold-side connection All hoses connected seen here www.isenbergfaucets.com...
