Installation Manual For CFB.2350
NOTICE TO HOMEOWNER
We recommend that this product is installed by a qualified
•
professional plumber.
•
Please check this product immediately to ensure that it has
not been damaged and is complete. Before installation, please
make sure this product is the correct model and you have all
the parts required for installation and use.
•
Please flush the water system to ensure that no metal swarf,
solder, and other impurities can enter the product.
• Turn off water supply before commencing work.
Please read these instructions carefully and retain for future
•
reference.
BEFORE YOU BEGIN
•
You must observe all local plumbing laws and codes.
•
Do not install this valve if it does not meet local plumbing codes.
•
Shut off the main water supply.
Ver. 2.54
www.isenbergfaucets.com

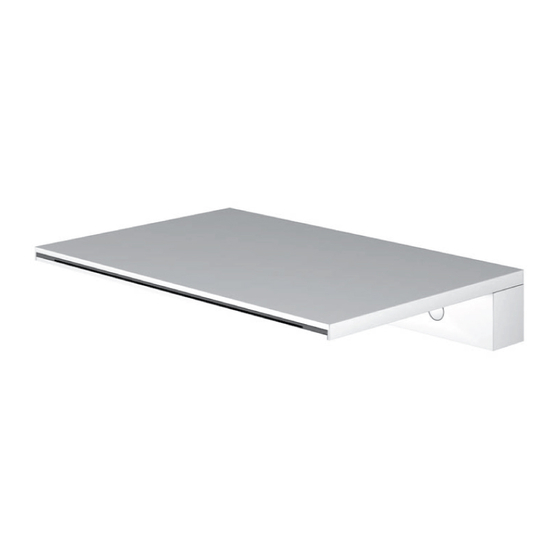

Cascade Flow Tub Filler
Made For Responsible Luxury
Advertisement
Table of Contents
Related Manuals for Isenberg CFB.2350
Summary of Contents for Isenberg CFB.2350
- Page 1 Made For Responsible Luxury Installation Manual For CFB.2350 Cascade Flow Tub Filler NOTICE TO HOMEOWNER We recommend that this product is installed by a qualified • professional plumber. • Please check this product immediately to ensure that it has not been damaged and is complete. Before installation, please make sure this product is the correct model and you have all the parts required for installation and use. • Please flush the water system to ensure that no metal swarf, solder, and other impurities can enter the product. • Turn off water supply before commencing work. Please read these instructions carefully and retain for future • reference. BEFORE YOU BEGIN • You must observe all local plumbing laws and codes. • Do not install this valve if it does not meet local plumbing codes. • Shut off the main water supply. Ver. 2.54 www.isenbergfaucets.com...
- Page 2 Made For Responsible Luxury Installation Manual For CFB.2350 Cascade Flow Tub Filler TABLE OF CONTENTS In The Box . . . . . . . . . 1 • • Operating Specifications . . . . . . . • Technical Drawing . . . . . . . . • Installation Hole Spacing Guide . ...
- Page 3 Made For Responsible Luxury IN THE BOX Caution ! - Do not attempt top loosen or tighten the screws on the under-side of this tub filler. Doing so will void the warranty. OPERATING SPECIFICATIONS WATER TEMPERATURE WATER PRESSURE This product is to be used with water at This product is to be used with a water pressure range of 15 PSI to 72 PSI ONLY a temperature range of 40˚F - 120˚F ONLY! If water pressure is greater than 72 PSI install a pressure reducing valve (PRV) www.isenbergfaucets.com...
- Page 4 Made For Responsible Luxury TECHNICAL DRAWING NPT FEMALE 1/2" 300 [11.81] INSTALLATION HOLE SPACING GUIDE The CFB.2350 installs from front of the finished tile. It is secured with 4 screws. The below diagram shows hole spacing. 1/2” NPT - MALE 37.5mm[1.48in] 75mm[2.95in] 75mm[2.95in] 75mm[2.95in] Critical Dimensions in mm [Inches] www.isenbergfaucets.com...
- Page 5 Made For Responsible Luxury INSTALLATION PROCEDURE Finished Tile Side View Use Allen wrench/key to tighten connector into Bring out the 1/2” male connection behind the 1/2” NPT male wall connection. finished tile Use plumbers tape for water tight connection. Drill appropriate holes Marking to match nished tile face 16.50 mm Install The 2nd Brass Fitting. Use Plumbers Tape Slide Tub Filler Into brass Connector. for water tight connection. Ensure the connector slides in completely into Tub Filler. “C” “B” Tighten Hex Screws “B”. Tighten holding screws “C”. www.isenbergfaucets.com...
