Upright X Series Operator's Manual page 9

T
RANSPORTING
Forklifting is for transporting only.
See specifications for weight of the work platform and be certain that forklift is
of adequate capacity to lift the platform.
Front tie down lugs are not to be used to lift work platform.
Overtightening of chains or straps attached to tie down lugs may result in
damage to work platform.
X Series
T W P
HE ORK LATFORM
B C
Y RANE
Secure straps to Lugs only.
B F
Y ORKLIFT
W A R N I N G
!
Forklift from the rear of the machine
using the forklift pockets provided. If
necessary, the machine may be fork-
lifted from the side by lifting under the
Chassis Modules.
B T
Y RUCK
1. Maneuver the work platform into
transport position and chock the
wheels. The platform must be in
the fully lowered position for trans-
port.
2. Secure the work platform to the
transport vehicle by attaching
chains or straps of adequate load
capacity to the front and rear Tie
Downs.
C A U T I O N
!
!

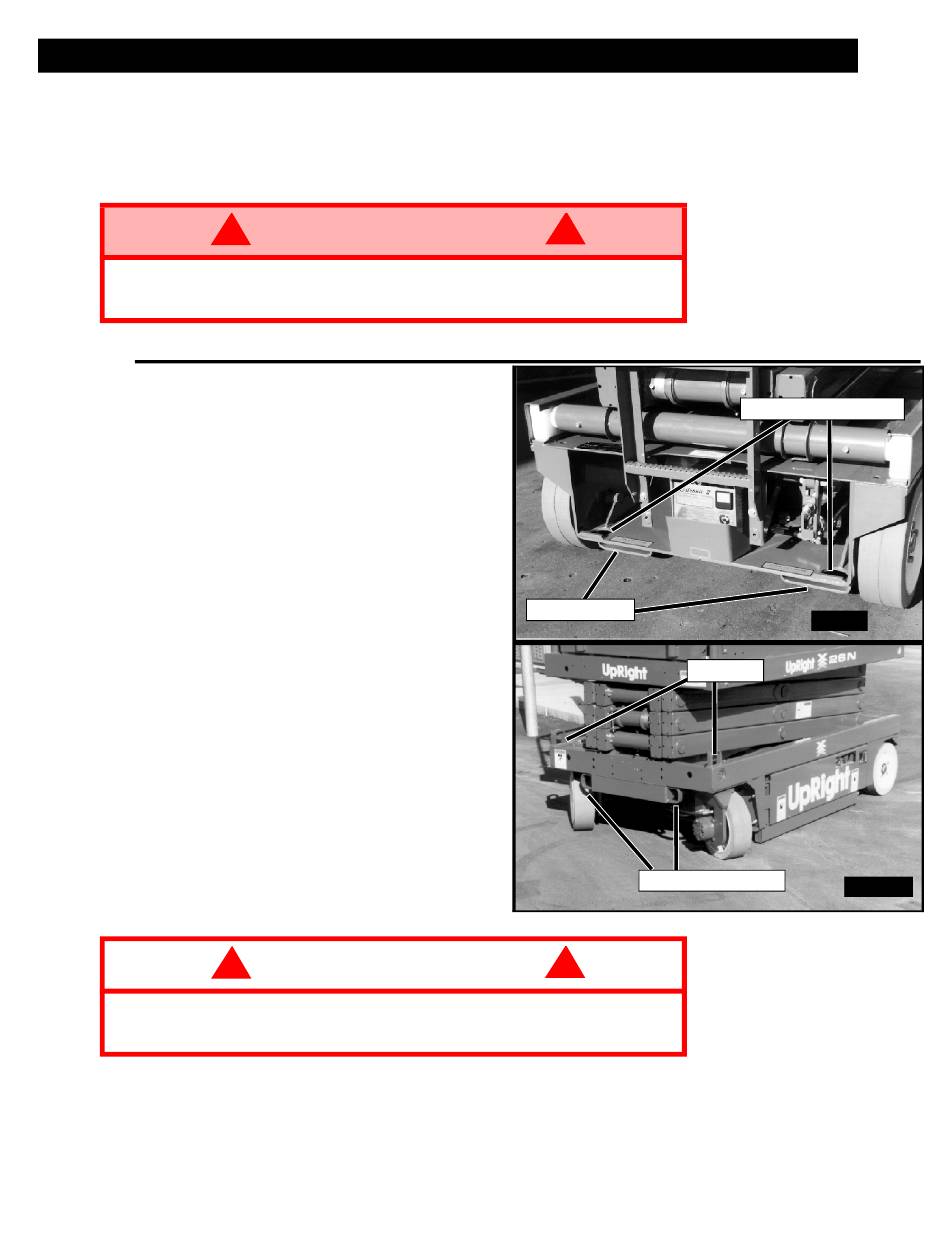

Figure 7: Transporting the Work Platform
Forklift Pockets
Lift Lugs
Front Tie Down Lugs
!
Rear Tie Down/Lift Lugs
REAR
FRONT
Page 9
