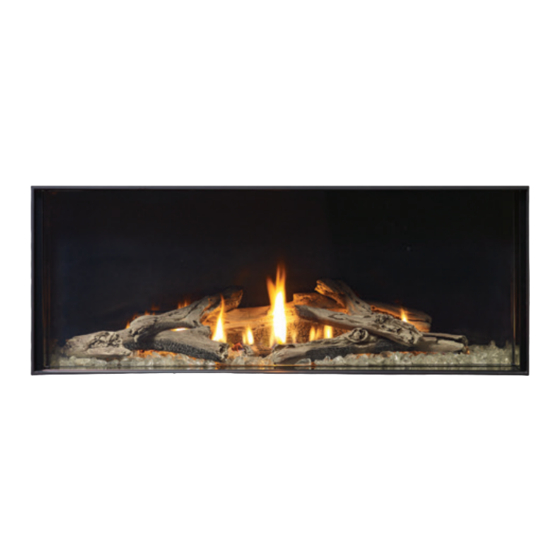

Zero Clearance Direct Vent Gas Fireplace
STYLE
Single sided ACV40ENG / ACV40ELP / ACV40EULPG
Warning
Fire or explosion Hazard
failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
- Do not store or use petrol or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Installer: Please complete the details on the back cover and leave this manual with the homeowner.
920-110
City Series
MODEL
Homeowner: Please keep these instructions for future reference.
®
Owners &
Installation Manual
LISTINGS AND CODE APPROVALS
These gas appliances have been
tested in accordance with AS/NZS
5263.0 & AS/NZS 5263.1.8:2016
and have been certified by IAPMO
for installation and operation as
described in these Installation and
Operating Instructions.
Must be installed as per AS/NZS5601.
Your unit should be serviced
annually by an authorised service
person.
www.regency-fire.com.au
PRIMARILY A DECORATIVE AND NOT A
HEATING APPLIANCE.
DO NOT MODIFY THIS APPLIANCE.
03.03.20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Regency Fireplace Products City New York View 40 Series
Summary of Contents for Regency Fireplace Products City New York View 40 Series
- Page 1 City Series ® Owners & Zero Clearance Direct Vent Gas Fireplace Installation Manual LISTINGS AND CODE APPROVALS These gas appliances have been tested in accordance with AS/NZS 5263.0 & AS/NZS 5263.1.8:2016 and have been certified by IAPMO for installation and operation as described in these Installation and Operating Instructions.
-
Page 2: Data Badge
data badge This is a copy of the label that accompanies Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review. The data badge is located on the front inside base of the unit, visible when the outer front panel is removed. NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one. ® Copy of the Data Badge Regency Gas Fireplace Distributed by: Propane ULPG Gas Type Western Australia: Air Group Australia ACV40ENG ACV40ELP ACV40EULPG Model 28 Division St Welshpool, WA 6106 ACB40ENG ACB40ELP ACB40EULPG Eastern Australia Fireplace Products 30 MJ/h 30 MJ/h... - Page 3 dimensions Dimensions Note: Height Dimension may vary depending on the height of the leveling legs. Note: These units are non-load bearing. ALL PICTURES / DIAGRAMS SHOWN THROUGHOUT THIS MANUAL ARE FOR ILLUSTRATION PURPOSES ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENTS. ACV40E City Series |...
-
Page 4: Installation
installation Clearances The clearances listed below are Minimum distances unless otherwise stated: A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this fireplace and vent system be installed only in accordance with these instructions. Flue Clearances to Combustibles Clearance: single sided Dimension Measured From: Horizontal - Top 76mm A: Mantel Height (min.) Top of Fireplace Opening Horizontal - Side 51mm B1: From Floor Min. 0mm Bottom of Fireplace Opening Horizontal - Bottom 51mm B2: Opening Height 383mm Bottom/Top of Fireplace Opening Vertical 51mm C: Sidewall (on one side) 216mm Side of Fireplace Opening... -
Page 5: Mantel Leg Clearances
installation Mantel Clearances Combustible mantel clearances from top of front facing are shown in the diagram on the right. 13mm Plasterboard, timber, timber panel, etc. 305mm 229mm 130mm Top of Bottomof Fireplace Fireplace Opening Opening 383mm Mantel Leg Clearances Combustible mantel leg clearances as per diagram: ACV40E MANTEL LEG Allowable mantel leg projection 216mm ACV40E City Series |... -
Page 6: Framing Dimensions
installation Framing Dimensions NOTE: Framing may be constructed of combustible material (ie. 51mm x 102mm)and does not require steel studs. Framing Description ACV40E Dimensions Framing Height 949mm Framing Width 1187mm Framing Depth 483mm Minimum Height to Combustibles 1600mm Corner Wall Depth 1396mm Corner Facing Wall Width 1974mm Vent Centerline Height 1429mm Gas Connection Opening Height 51mm Gas Connection Height 106mm Gas Connection Inset 330mm Gas Connection Opening Width 89mm Maximum material dimensions 51mm x Note: A combined minimum of 102mm for Header studs 774 square centimetres of open (installed on edge and flat) area is required for the convection air outlet to cool the enclosure. -
Page 7: Maximum Tv Recess
installation TV Recessed into Wall Maximum TV Recess TV Flush with Hearth ACB40E shown ACB40E shown | ACV40E City Series... -
Page 8: Flueing Introduction
installation Flueing Introduction The ACV40E uses the "balanced flue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney. Note: These flue pipes must not be connected to any other appliance. The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited. Flueing Arrangement for Horizontal Terminations The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90 (two 45 elbows equal one 90 elbow). Note: Must use optional rigid pipe adapter (Part# 510-994) when using Rigid Pipe Flueing Systems. (Metres) 1429mm "THIS UNIT MUST ALWAYS TERMINATE / FLUE DIRECTLY TO THE OUTDOORS." VENT RESTRICTOR SETTING: Vent restrictor factory set at Set 0. Refer to the "Vent Restrictor Position" section for details on how to change the vent restrictor from the factory setting of Set 0 to Set 2 if required. -
Page 9: Flueing Arrangements Horizontal Terminations
installation Flueing Arrangements Horizontal Terminations Flex Vent 102mm x 173mm These flueing systems, in combination with the ACV40E Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in "Exterior Vent Termination Locations" section. Regency Direct Vent (Flex) System Termination Kits includes all the parts needed to install the ACV40E using a flexible vent. ® FPI Kit # Length Contains: #946-515 1.2m 175mm flexible outer liner (Kit length) 102mm flexible inner liner (Kit length) spring spacers... - Page 10 installation Horizontal Terminations Rigid Pipe 102mm x 175mm The minimum components required for a basic horizontal termination are: 1 Horizontal Termination Cap 1 90 Elbow 1 Rigid Pipe Adaptor (510-994) Horizontal 1 Wall Thimble Termination Cap 1 Length of pipe to suit wall thickness (see chart) Vinyl Siding Wall thickness is measured from the back standoffs to the inside mounting surface of termination cap. For siding other Standoff (Optional) than vinyl furring strips may be used, instead of the vinyl siding standoff, to create a level surface to mount the vent terminal.
-
Page 11: Horizontal Terminations Rigid Pipe
installation Horizontal Terminations 102mm x 175mm Rigid Pipe The diagrams below shows examples of horizontal termination arrangements using one, two, or three 90 elbows (two 45 elbows equal one 90 elbow) 1. A maximum of three 90 elbows are permitted. 2. Minimum distance between elbows is 305mm. • Maintain clearances to combustibles as listed in the "Clearances" section. • Horizontal vent must be supported every 1.8m. • Firestops are required at each floor level and whenever passing through a wall. • Must use optional rigid pipe adaptor (Part# 510-994) when using rigid pipe vent systems. • A vent guard should be used whenever the termination is lower than the specified minimum or as per local codes. • Flex system can only be used up to 3m - otherwise rigid flueing must be used. Horizontal Flueing with Two (2) 90 Elbows Horizontal Flueing with Three (3) 90... -
Page 12: Flueing Arrangement For Vertical Terminations
installation Flueing Arrangement for Vertical Terminations Vertical Flueing with Straight Vertical Flueing and or with a max. of two (2) 90 Elbows (1 - 90 2 - 45 The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using two elbows, with Rigid Pipe Flueing Systems. Two 45 elbows equal to one 90 elbow. • Vent must be supported at offsets. • Minimum distance between elbows is 305mm. • Maintain clearances to combustibles as listed in the "Clearances" section. -
Page 13: Vertical Terminations Rigid Pipe
installation Vertical Terminations 102mm x 175mm Rigid Pipe The minimum components required for a basic vertical termination are: High wind cap 1 Vertical Termination Cap 1 Rigid Pipe Adaptor (510-994) 1 Ceiling Firestop 1 Flashing Storm Collar 1 Storm Collar 1 Length of pipe to suit wall thickness (see chart) Flashing Galvanized pipe is desirable above the roofline due to its higher corrosion resistance. Continue to add pipe sections through the flashing until the height of the vent cap meets the minimum height Ceiling Firestop... - Page 14 installation Vertical Terminations 102mm x 175mm Rigid Pipe • Two 45 elbows equal to one 90 elbow. Maximum of six 45 elbows allowed. • Vent must be supported at offsets. • Minimum distance between elbows is 305mm. • Maintain clearances to combustibles as listed in the "Clearances" section. • Horizontal vent must be supported every 0.3m. • Firestops are required at each floor level and whenever passing through a wall. • Must use optional rigid pipe adaptor (Part# 510-994) when using rigid pipe vent systems Vertical Flueing with Three (3) 90 Elbows One 90 elbow = Two 45 elbows. Restrictor Set 0 - Factory Setting Option H + H1 V + V1...
