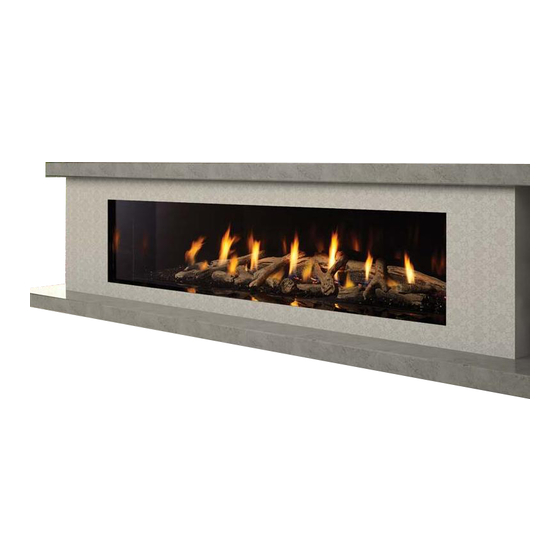

Regency Fireplace Products City Series Owners And Installation Manual
  1. Manuals
  2. Brands
  3. Regency Fireplace Products Manuals
  4. Indoor Fireplace
  5. City Series
  6. Owners and installation manual

Regency Fireplace Products City Series Owners And Installation Manual

Hide thumbs Also See for City Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Zero Clearance Direct Vent Gas Fireplace
New York 72
http://bit.ly/2yIGUao
STYLE
Single sided CV72E-NG11 / CV72E-LP11
Warning
Fire or explosion Hazard
failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
- WHAT TO DO IF YOU SMELL GAS
•
Do not try to light any appliance.
• Do not touch any electrical switch: do not use any phone in your building.
Leave the building immediately.
• Immediately call your gas supplier from a neighbour's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Tested by:
Certified to/Certifié pour: CSA 2.17-2017
919-931h
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
City Series
MODEL
ANSI Z21.88-2017
CSA 2.33-2017
®
Installer: Please complete the details on the back cover and leave this
manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Owners &
Installation Manual
www.regency-fire.com
06.16.21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the City Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Regency Fireplace Products City Series

Summary of Contents for Regency Fireplace Products City Series

  • Page 1 City Series ® Owners & Zero Clearance Direct Vent Gas Fireplace Installation Manual New York 72 http://bit.ly/2yIGUao www.regency-fire.com STYLE MODEL Single sided CV72E-NG11 / CV72E-LP11 Warning Fire or explosion Hazard failure to follow safety warnings exactly could result in serious injury, death, or property damage.
  • Page 2 To the New Owner: Congratulations! You are the owner of a state-of-the-art Gas Fireplace by REGENCY . The City Series are hand crafted appliances and have ® been designed to provide you with all the warmth and charm of a wood fireplace at the flick of a switch. The CV72E City Series have been approved by Intertek for both safety and efficiency. As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and the many features of your Regency Fireplace. ® This appliance may be installed in an aftermarket, permanently lo- cated, manufactured home (USA only) or mobile home, where not prohibited by local codes. This appliance is only for use with the type of gas indicated on the rating plate.
  • Page 3 MANUFACTURED MOBILE HOME REQUIREMENTS INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE This Regency product has been tested and listed by Intertek as a Direct Vent Wall Furnace to the following standards: to Vented Gas ® Fireplace Heaters ANSI Z21.88-2017 • CSA 2.33-2017 and Gas-fired Appliances for Use at High Altitudes CSA 2.17-2017. This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada. This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada. This Regency mobile/manufactured home listed appliance comes factory equipped with four 1/4" diameter holes located near each corner ® of the base. Fasten the fireplace in place using screw, inserted through the holes. This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable to local codes. See the "Wiring Diagram" section. The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. This appliance may only be installed in an aftermarket permanently located, manufactured home (U.S.A only) or mobile home, where not prohibited by local codes. This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with other cases, unless a certified kit is used. Ensure that structural members are not cut or weakened during installation. City Series CV72E |...

  • Page 4: Table Of Contents

    table of contents Horizontal Termination - 5" x 8" Venting (Rigid Vent Systems) ..54 Owner's information Vertical Terminations - Rigid/Flex Pipe 5" x 8" ........55 Vertical Terminations - Rigid/Flex Pipe 5" x 8" ........56 Copy of Safety Decal ................5 Venting Arrangement for Vertical Terminations - Straight Vertical Important Message ................10 Venting and/or with a Max. of Two (2) 90 Elbows Before You Start ................. 10 (1 - 90 = 2 - 45 ) ................57 First Fire .................... 11 Vertical Termination (Rigid Vent Systems) ......... 58 Normal Operating Sounds Of Gas Appliances ........11 Vertical Terminations - Vertical Flex Vent Kit (Part #946-772) .

  • Page 5: Copy Of Safety Decal

    safety decal This is a copy of the label that accompanies Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review. The safety label is located on the front inside base of the unit, visible when the outer front panel is removed. NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a ® difference, the label on the unit is the correct one. Copy of Safety Decal Duplicate S/N Listed/Nom: VENTED GAS FIREPLACE HEATER / FOYER AU GAZ À ÉVACUATION DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE Certified for/Certifi é...

  • Page 6: Dimensions

    dimensions Dimensions 3 3 8 8 1 1 1 1 1 1 6 6 " " 3 3 8 8 1 1 1 1 1 1 6 6 " " 9 9 8 8 3 3 m m m m 9 9 8 8 3 3 m m m m Ø...

  • Page 7: Gas Connection - Back Of Unit

    installation Gas Connection - Back of Unit removable knockouts 3-7/8" 17" 5" 5" 5" 17" 36-1/4" 36-1/4" Gas Connection - Bottom of Unit Opening at unit base Gas Valve Back of Unit 14-1/2" Front of Unit Gas Connection - Side of Unit tooltip Back of Unit Front of...

  • Page 8: Gas Installation Checklist

    dimensions Gas Installation Checklist REGENCY GAS INSTALLATION CHECKLIST This general checklist does not contain all pertinent installation details or specifics and does not supersede the guidelines in this manual. Your Regency dealer/installer should use it in conjunction with manual instructions. Please follow all local codes and jurisdictions in authority. Customer: Date Installed: Install Address:...
  • Page 9 installation REGENCY GAS INSTALLATION CHECKLIST Finishing If applicable, is only noncombustible material installed in the noncombustible areas? Do clearances meet installation and manual requirements? Do the mantels and/or projections comply with the installation manual? If applicable, was the solid fuel fireplace warning plate installed? Appliance Media Setup Do commands from the remote or wall switch light the pilot and main burner? Are the burner media/log set, glass door, and screen installed per instructions in the manual?

  • Page 10: Important Message

    owner's information Important Message WE RECOMMEND REMOVING THE CHILDREN AND ADULTS SHOULD BE SAVE THESE INSTRUCTIONS GLASS WITH THE GLASS VACUUM ALERTED TO THE HAZARDS OF HIGH HOLDERS SUPPLIED BY THE MANU- SURFACE TEMPERATURES, ESPE- City Line Direct Vent Fireplaces must be installed FACTURER. LOWER THE GLASS TO CIALLY THE FIREPLACE GLASS, AND in accordance with these instructions. Carefully REST IN A SAFE PLACE.

  • Page 11: First Fire

    owner's information First Fire Normal Operating Sounds Of Gas Appliances The FIRST FIRE in your fireplace is part of the paint curing process. To ensure the paint is prop- It is possible that you will hear some sounds from erly cured, it is recommended you burn your your gas appliance. This is perfectly normal due to fireplace for at least four (4) hours the first time. the fact that there are various gauges and types of steel used within your appliance. Listed below When first operated, the unit will release an are some examples. All are normal operating odour caused by the curing of the paint and the sounds and should not be considered as defects burning off of any oils remaining from manufac- in your appliance. turing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate Burner Tray: the room for a couple of hours. The glass may...

  • Page 12: Lighting Procedure

    owner's information Lighting Procedure IMPORTANT: The remote control system supplied with this appliance has Note: The first try for ignition will last approximately 60 seconds. If there is no several options for starting/operating the appliance using the battery holder flame ignition (rectification) the board will stop sparking for approximately and ON/OFF key on the hand held transmitter. 35 seconds. After wait time , the board will start second try for ignition by Prior to operating this appliance, please read the remote control operating sparking for approximately 60 seconds . If there is still no positive ignition instructions (packaged with remote control) to understand how to operate the board will go into lock out. this remote control system. The system will need to be reset as follows: 1. Ensure the battery holder switch is in the Remote position and / or wall mounted battery holder (if equipped) is in the <REMOTE> position. a) Turn the system off by pressing the ON/OFF button on the remote. 2. Press and release the ON/OFF button on the remote handheld transmitter b) Wait 5 minutes then repeat from step 2. (see Diagram 1). An audible beep should be heard from the receiver. If not using the remote, the unit can also be turned on by sliding the battery Shutdown Procedure holder switch to the <ON> position (if equipped). 1. Press the ON/OFF button on the remote 2. If service is to be performed- you must disconnect power and shut off gas to the unit. ON/OFF Button Diagram 1...

  • Page 13: Copy Of The Lighting Plate Instructions

    owner's information Copy of the Lighting Plate Instructions FOR YOUR SAFETY READ BEFORE LIGHTING POUR VOTRE SÉCURITÉ – À LIRE AVANT LA MISE EN MARCHE This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes, CSA B149.1.

  • Page 14: Proflame Ii Remote Control Operating Instructions

    owner's information Proflame II Remote Control Operating Instructions PROFLAME II REMOTE CONTROL OPERATING INSTRUCTIONS IMPORTANT:The Proflame Transmitter 2 is an integrated part of the TECHNICAL DATA Proflame 2 System, which consists of these elements: • Proflame 2 Transmitter, to be used in conjunction with: REMOTE CONTROL •...
  • Page 15 owner's information Temperature indication Display Remote‑Flame Control With the system in the "OFF" position, press the Thermostat Key and The Proflame has six (6) flame levels. With the system on, and the flame the Mode Key at the same time. Look at the LCD screen on the transmit- level at the maximum in the appliance, pressing the Down Arrow Key ter to verify that a C or F is visible to the right of the room temperature once will reduce the flame height by one step until the flame is turned off.
  • Page 16 owner's information Smart Thermostat (Transmitter Operation) Remote dimmer control (Light)** The auxiliary function controls the AUX power outlet by the dimmable The Smart Thermostat function adjusts the flame height in accordance light control. To activate this function use the Mode Key (fig. 1) to index to the difference between the set point temperature and the actual room to the AUX icon (fig.
  • Page 17 owner's information Continuous Pilot/Intermittent Pilot (CPI/IPI) selection 5. "Clr" will remove a mode—use the up or down arrow while holding down ON/OFF and MODE (mode icon will disappear once removed). Note: Power vent models do not have a Continuous 6. Use the "MODE" button to move to the next function. Pilot option.

  • Page 18: Glass Barrier Removal

    owner's information Glass Barrier Removal OWNERS MANUAL Glass safety barrier removal Glass barrier removal video 1. Prepare a soft, scratch resistant surface to place the 70-3/8 " x 15-1/4" glass (i.e. large sheet or clean drop cloth). 2. Attach the vacuum clamps to the glass as shown. Press the vacuum clamps against the glass, then close the clamps while maintaining pressure on the glass.

  • Page 19: Inner Glass Panel (Firebox Glass) Installation / Removal

    owner's information Inner Glass Panel (firebox glass) Installation / Removal Note: glass panels must be installed to operate fireplace 3. F rom the front inside lower panel of the unit--pivot the 3 glass supports into upright position as shown below. WARNING: GLASS HANDLING We recommend using the glass vacuum holders supplied by the manufac- turer. Lower the glass to rest in a safe place, this is to prevent damage to the glass edges. Extra care must be taken when removing/installing the glass. Breakage or damage to the edge of the glass which occurs as a result of careless handling will not be covered under warranty. • W e recommend handling the glass with supplied vacuum clamps • When removing glass–prepare a soft, scratch resistant surface to place the 70-3/8"x15-1/4"...
  • Page 20 owner's information 5. Pull the 3 lower glass gasket pads forward to release the glass. Gasket pad Push down on levers to lower glass panel 6. S upport the glass with one hand and open the 9 lower clamps. 8. C arefully lean glass forward onto supports. Glass panel--leaning on supports NOTE: The firebox glass may remain propped on the glass supports to clean the interior surface. Use care when cleaning -- do not apply excessive force or pressure. Lower clamps (x9) in open position 9. T o remove the firebox glass panel from the unit: tilt the glass forward 7. L ocate the 2 levers below the glass and turn them both 90° in a clockwise gently onto the glass supports, grip both suction clamps and lift the glass direction to lower the firebox glass panel.

  • Page 21: Optional Barrier Glass Stoppers Installation / Removal

    owner's information Optional Barrier Glass Stoppers Installation / Removal There are 2 optional stoppers included in the manual pack which provide 3. Reinstall the side panel. additional support to the glass barrier, if desired--install the stoppers prior to installation of the barrier glass. 1. I f already installed, remove the side panel by pulling off and lifting out. 4. Repeat steps 1-3 on the opposite side. 2. S lide the stopper bracket in between the front panel and the unit wall as shown. Barrier stoppers installed 5. Proceed to installation of the barrier glass. City Series CV72E |...

  • Page 22: Bulb Replacement

    owner's information Bulb Replacement 1. T urn off power and gas to unit and allow to cool to room temperature. 5. Loosen 2 screws on each side of individual inner light cover and remove. 2. R emove outer safety glass panels and inner panels (firebox glass)–see 6. Replace bulb and reverse steps to complete procedure. instructions in this manual. NOTE: D o not handle bulb with bare hands. Use packaging or a tissue to hold new bulb when replacing. Regency Part# 911-208 Oven Lamp Assembly G9 120V/25W Regency Part# 911-072 Replacement Bulb G9 120 Volt/25 watt t t o o o o l l t t i i p p Light are located behind the front face of the unit 3. L oosen 2 outer screws on each side to remove outer light cover — located in the upper inside front of the firebox..

  • Page 23: Maintenance Instructions

    owner's information Maintenance Instructions Glass Replacement 3. Check for evidences of excessive condensation, such as water droplets forming in the inner In the event that you break your glass by impact, 1. Always turn off the gas valve before cleaning. liner, and subsequently dripping out the joints, purchase your replacement from an authorized For relighting, refer to lighting instructions. Keep Continuous condensation can cause corrosion Regency dealer only. Replacement glass is shipped the burner and control compartment clean by of caps, pipe, and fittings. It may be caused already installed into the door frame. Reinstall as per brushing and vacuuming at least once a year.
  • Page 24 installer's information MA Code - CO Detector (for the State of Massachusetts only) 5.08: Modifications to NFPA-54, Chapter 10 (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:...

  • Page 25: General Safety Information

    requirements installer's information General Safety Information Installation Checklist This includes: 1. The appliance installation must conform with 1. Locate appliance. Refer to the following sections: 1. Clocking the appliance to ensure the correct a) Locating Your Fireplace local codes or, in the absence of local codes, firing rate (rate noted on label 46,500 Btu/h b) Clearances with the current Canadian or National Gas NG/ 45,500 Btu/h LP) after burning appliance c) Combustible Mantel Clearances...

  • Page 26: Locating Your Gas Fireplace

    installer's information Locating Your Gas Fireplace 1. When selecting a location for your fireplace, ensure that the clearances are met. 2. The appliance must be installed on a flat, solid, continuous surface For example a wood, metal or concrete floor or in a raised (on the wall) ap- plication. The appliance must be installed on a metal or wood panel extending the full width and depth of the appliance. 3. The CV72E Direct Vent Gas Fireplace can be installed in a recessed position or framed out into the room as in A, B, C, and D. See Diagram 1. A) Flat on Wall-CV72E Diagram 1 B) Flat on Wall Corner-CV72E C) Recessed into Wall/Alcove-CV72E D) Corner-CV72E 4. For bedroom installations, check with local codes before installation. This appliance is offered with a remote control.

  • Page 27: Unit Assembly Prior To Installation

    requirements installer's information Unit Assembly Prior to Installation Before you Start - Removing the Unit from the Pallet Remove the screws securing the unit to the pallet Due to the size and weight (529 pounds shipping weight) of the CV72E--lifting and moving the unit will require 4 people. Place a length (long enough to get a solid grip on each side) of 2 x 4 under the handle on each side. Lift and move the unit carefully. Note: When in position, the handles may be removed from the unit by removing 6 screws on each handle. Ensure that when the handles are removed that the screws are put back into place in all 12 holes locations where the handle had been previously (6 per side). The handles can be recycled. Side Standoff Assembly CV72E The CV72E has 4 standoffs, 2 on each side that need assembly before installing. The standoffs are shipped in a flat position -- fold the standoff and install the tooltip standoff onto the unit by sliding the 2 tabs into the slots on the unit. Bend the tabs to secure. Secure opposite end of the standoff with one screw. Top rear standoffs standoffs Rear Standoffs The 8 rear standoffs are already attached to the appliance. Do not remove...
  • Page 28 installer's information Access Panel Removal The front access panels (x3) may be removed for ease of hooking up gas and electrical--prior to finishing. Once complete ensure that the access panel is reinstalled prior to any finishing. See locations in diagram to the right. Note: Once the finished material is installed, these access panels are no longer accessible. Gas connection Aeration adjustment Electrical tooltip 1. I dentify access panel to be removed, remove corresponding outer trim panel by lifting up and off (centre panel shown below). tooltip 2. F rom inside the unit--push in tab to release the access panel at the top.

  • Page 29: Clearances

    installation Clearances The clearances listed below are Minimum distances unless otherwise stated: A major cause of chimney related fires is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this fireplace and vent system be installed only in accordance with these instructions. Flue Clearances to Combustibles Clearance: single sided Dimension Measured From: Horizontal - Top 3" Top of Fireplace Opening A: Mantel Height (min.) Horizontal - Side 2" min. 0" Bottom of Fireplace Opening B1:From Floor Horizontal - Bottom 2"...

  • Page 30: Mantel Clearances

    installation Mantel Clearances Combustible mantel clearances from top of front facing are shown in the diagram on the right. 1/2" Drywall, wood, wood panel, etc. 12" (305mm) 9” 5-1/8" To Bottom of Top of Fireplace Fireplace Opening 15-1/16" Opening Mantel Leg Clearances Combustible mantel leg clearances as per diagram: MANTEL LEG MANTEL LEG Allowable mantel Allowable mantel leg projection leg projection 10"...

  • Page 31: Framing Dimensions

    installation Framing Dimensions NOTE: Framing may be constructed of combustible material (ie. 2 x 4)and does not require steel studs. Framing Description CV72E Dimensions Framing Height 51" (1295mm) Framing Width 78" (1981mm) Framing Depth 20-5/8" (524mm) Minimum Height to Combustibles 87"(2210mm) Corner Wall Depth 82-1/8" (2086mm) Corner Facing Wall Width 116-3/16" (2951mm) Vent Centerline Height 55-1/4" (1403mm) Gas Connection Opening Height 2" (51mm) Gas Connection Height 3-7/8" (98mm) Gas Connection Inset-Centre Opening 36-1/4" (921mm) Gas Connection Opening Width 5" (127mm) * See next page for alternate Gas/ Electrical connection options With the lift handles adding approximately 4 inches to the overall width of the appliance,In cases where the appliance would need to be raised off the ground in order to slide it into the framed opening, it is suggested that either the framing width change from 78" to 82" so that the appliance could be easily slid into position with the handles remaining on the appliance, or alternatively create a platform in front of the framed opening where the lift handles could be removed prior to sliding the appliance into its final position. Alternatively, If raised off the ground, the framing could be installed afterwards once appliance has been put into place and lift handles removed in order to keep the framing width at 78". Ensure that the wood base that the appliance will sit on is strong enough to support the full weight of this appliance. The overall weight of this appliance is 529 pounds (shipping weight). Note: A combined minimum of 288 square inches of open area is required for the con- vection air outlet to cool the...

  • Page 32: Electrical Connection - Bottom Of Unit

    installation Electrical Connection - Bottom of Unit Front of Unit 77-7/16" Receptacle 8" Back of Unit Electrical opening Electrical Connection - Side of Unit Front of Back of unit unit 4" 2-3/4" | City Series CV72E...

  • Page 33: Chase Vent Installation

    CITY SERIES installation Chase Vent Installation CV72E CHASE VENT INSTALLATION Framed Opening must be between 5” and 5.5” tall, and at least 74.25” wide to accomodate the Chase vent. The top of the chase vent opening must be 2” or less from the top of the chase enclosure.
  • Page 34 CITY SERIES installation Finish edges of drywall with trim or corner bead. Edge nish must not decrease opening area below 306in (4.25”x72”) | City Series CV72E 919-830b 01.23.18...
  • Page 35 CITY SERIES installation Frame opening for vent Screw Chase vent to Framing Use at least 4 sets of screws (See Vent Framing Clearances Page) to keep the vent at against frami Drywall Frame wall with nishing material If necessary, mark where the...

  • Page 36: Extended View Panel Installation

    CITY SERIES Extended View Panel Installation EXTENDED VIEW PANEL INSTALLATION 1. Construct the sealed rear enclosure to specified width shown below 4. Move unit into framed opening at desired height and level unit on all and desired height (see unit manual for detailed framing instructions).
  • Page 37 CITY SERIES installation 7. Install venting before proceeding (see unit manual for details). 10. Install inner panels (refer to instructions in unit manual). Install inner panels Install venting 11. Install glass panels onto base panels (glass panels are secured in place with magnets).

  • Page 38: Wall Board/Drywall Installation

    installation Wall Board/Drywall Installation WARNING! Risk of Fire! Comply with all minimum clearances to combustibles as specified. Finishing Instructions It is important to follow the framing and finishing instructions to ensure proper placement of fireplace into the surrounding framing/finishing materials. Wall board materials 1/2 in. thick are specified in this installation manual to properly align with the optional finishing methods offered with this appliance. The CV72E may be finished to the appliance opening with 1/2 inch thick drywall. • Ensure that the back and side clearances are maintained. WARNING! Risk of Fire! Maintain specified air space clearances to combustibles. Inadequate air space could cause overheating and fire. DO NOT use screws more than 1/2 inch in length on the lower access cover panel. Longer screws may penetrate gas line or damage valve or electrical components. Note: It is acceptable to use a high temperature silicone sealant to adhere drywall to lower access cover panel. The appliance is designed to be used with a minimum 1/2 in. wall sheathing materials such as drywall, plywood, wood composites, or non-combustible materials. Thicker materials may be used. Refer to facing and finishing details in this manual. Facing Material • Facing and/or finishing materials must never overhang into the glass opening. See finishing details in this manual. • Facing materials may be combustible or non-combustible WARNING! Risk of Fire! DO NOT apply combustible materials beyond the minimum clearances. Comply with all minimum clearances to combustibles as specified in this manual. Overlapping materials could ignite and will interfere with proper operation. PAINTING If desired finishing includes a painted wall, 100% acrylic latex, oil-based or standard acrylic paints may be used. Follow paint manufacturer’s instructions for paint and primer application. NO SCREW ZONES No screw zones (in shaded areas) as shown below must be adhered to. 72" (1829mm) 7-1/2" 8-1/2" 8-1/2" (191mm) (216mm) (216mm) 7" (178mm) 9"...

  • Page 39: Framing And Finishing Inset Installations

    installation Framing and Finishing Inset Installations Drywall Lip - Bottom and Sides (Optional) 1. Frame in the enclosure for the unit with framing material If desired the finishing lip on both sides and bottom may be removed. Re- move the 2 screws on each side to remove the side drywall lip and loosen Note: When constructing the framed opening ensure there is access to install 6 screws (in locations shown below) from behind front face of unit with an the gas lines,electrical. Also the wiring harness must be wall mounted using offset screwdriver and lift off drywall trim to remove. The top drywall lip can- the receptacle provided with the appliance. The wiring harness will be located not be removed from the appliance. Also see finishing details on next page. on the right hand side of the appliance if facing the unit from the front. This must be done prior to any finishing. 2. F or exterior walls, insulate the enclosure to the same degree as the rest of the house, apply vapour barrier and drywall, as per local installation codes. (Do not insulate the fireplace itself.) Note that in all applications while there is a zero clearance to combustibles to the unit, all clearances to combustibles from the venting inside the chase still applies. Please see venting clearances in the specific product manual. Remove 2 screws from each side WARNING: Failure to insulate and add vapor barriers to the inside of the exterior wall will result in operational and performance problems including, but not limited to: excessive condensation on glass doors, poor flame package, Loosen screws –...

  • Page 40: Typical Installations

    installation CV72 Typical Installs CV72 Typical Installs Typical Installations FLUSH INSTALL RECESSED INSTALL FLUSH INSTALL RECESSED INSTALL Recessed Install Flush Install Max 2” Max 2” To Top of Enclosure To Top of Enclosure 288in min 288in min Chase Vent opening 288in Chase Vent opening 288in...

  • Page 41: Typical Installations

    installation CB72EPV Typical Installs Typical Installations MAXIMUM TV RECESS FLUSH TV WITH HEARTH Maximum TV Recess Flush TV with Hearth Max 2” To Top of Enclosure 288in Chase Vent opening Shown with Regency Chase Vent 666-532 Max 4 ” TV recess with drywall up against unit Header Stud Max 5...

  • Page 42: Finishing

    installation Finishing CV72 Finishing Flush Install Example - Front edge of side liner panels must not be covered by nishing material or - Loosen screws using supplied O set removal of the Firebox Glass will not be Screwdriver and remove bottom and - Finish up to trim on all 4 sides possible side trim pieces...

  • Page 43: Chase Venting

    installation Chase Venting Note: The enclosure opening cannot be any lower than 0-2" from the top of the enclosure for all installations. Minimum height of enclosure from base of appliance is 87". CHASE VENTING A minimum 288in opening in the enclosure is required to maintain safe operating temperatures. This can be achieved in a number of ways including the examples shown below. Warning: DO NOT cover or place objects in front of the air outlet(s). Regency Chase Vent Custom chase vent Dimensions: 4”x72”...

  • Page 44: Exterior Vent Termination Locations

    installation Exterior Vent Termination Locations Minimum Clearance Requirements Canada Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm) Clearance to window or door that may be opened 12"(30cm) 9" (23cm) Clearance to permanently closed window Vertical clearance to ventilated soffit located above the terminal within a horizontal distance of 2 feet (61cm) 29"(74cm) 29"(74cm) from the center line of the terminal (check with the local code) Clearance to unventilated soffit 20"(51cm) 20"(51cm) Clearance to outside corner: with AstroCap Termination Cap. 7"(18cm) 7"(18cm) Clearance to outside corner: with all other approved Termination Caps. 14"(36cm) 14"(36cm) Clearance to inside corner: with AstroCap Termination Cap 7"(18cm) 7"(18cm) Clearance to inside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm) 13"(33cm) Clearance to each side of center line extended above meter/regulator assembly 36"(90cm) Clearance to service regulator vent outlet 36"(90cm) Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)

  • Page 45: 5" X 8" Rigid Pipe Cross Reference Chart

    installation 5” x 8” Rigid Pipe Cross Reference Chart Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI. 5" X 8" RIGID PIPE CROSS REFERENCE CHART Note: Olympia Venis DV venting is only approved for certain models. See list of approved models in cross-reference chart. Components from different Manufacturers may not be mixed. Not all rigid pipe components are available directly from Regency. Note: Olympia Ventis DV venting is only approved for certain models. See list of approved models in cross-reference chart. Description Simpson *Selkirk...
  • Page 46 installation Description Simpson *Selkirk *Metal-Fab™ *ICC Excel *Olympia Direct Vent Pro ® Direct Temp™ Sure Seal Direct Ventis DV*** Attic Insulation Shield 12" 58DVA-IS* VDV-AIS05 Basic Horizontal Termination Kit (A ) 5DT-HKA TM-5HTK VDV-KW05 Horizontal Termination Kit (B) 58DVA-KHA 5DT-HKB TM-5HTK VDV-K05 Vertical Termination Kit...

  • Page 47: Wall Mount On / Off Switch And Battery Holer Installation

    installation Wall Mount On / Off Switch and Battery Holder Installation Required for all installations IMPORTANT INSTALLATION NOTE: The battery holder must be placed inside the supplied (low voltage) junction type wall box and installed into the wall only. DO NOT INSTALL WITHIN THE CONFINES OF THE FIREPLACE SWITCH MUST BE ACCESSIBLE Battery Holder Installation 1. Install the low voltage junction box to the framing, at desired location within 11-1/2 ft. from fireplace. 2. F eed the 6 pin connector wiring harness through the opening at back of junction box. The wiring harness is located on the right hand side and must be installed prior to finishing.

  • Page 48: Vent Restrictor Position

    installation Vent Restrictor Position Vent restriction is required for certain venting installations, see the diagrams in the "Venting Arrangements" section to determine if they are required for your installation. The Vent Restrictor plate is installed on the appliance at Set 0. To set the vent restriction as indicated in the venting arrangements diagrams, refer to the following instructions; 1. Remove the safety barrier glass and firebox glass--see instructions in this manual. 2. Adjust the vent restrictor plate to the required vent restrictor position as per the diagrams shown. 3. Once the vent restrictor plate is in the required position, secure with screws. Set 0 Fully open Factory Set 3 1 8 " Set 1 Front of Unit 3-1/8" Vent Restrictor Back of Unit 2 3 8 " Cross section showing the ceiling of the firebox from the inside Set 2 2-3/8"...

  • Page 49: Horizontal Terminations - Flex Vent 5" X 8

    installation - Flex Vent 5" x 8" Horizontal Terminations These venting systems, in combination with the CV72E Direct Vent Gas Fireplace, has been tested and listed as a direct vent heater system by Intertek. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in "Exterior Vent Termination Locations" section. Regency Direct Vent (Flex) System Termination Kits include all the parts needed to install the CV72E using a flexible vent. ® FPI Kit # Length Contains: 8” flexible liner (Kit length) #946-615 4 Feet 5”...

  • Page 50: Horizontal Terminations - Rigid Pipe 5" X 8

    installation Horizontal Terminations - " Rigid Pipe 5" x 8 The minimum components required for a basic horizontal termination are: 1 Horizontal Termination Cap 1 Rigid Pipe Adaptor (770-994) 1 Wall Thimble 1 Length of pipe to suit wall thickness (see chart) Horizontal Termination Cap Wall thickness is measured from the back standoffs to the inside mounting surface of termination cap. For siding other than vinyl furring strips may be used, instead of the vinyl siding standoff, to Vinyl Siding create a level surface to mount the vent terminal. The Terminal Standoff (Optional) must not be recessed into siding. Measure the wall thickness including furring strips.

  • Page 51: Horizontal Terminations - Rigid Pipe 5" X 8

    installation Horizontal Terminations - " Rigid Pipe 5" x 8 The diagrams below show examples of horizontal termination arrangements using one, two, or three 90 elbows (two 45 elbows equal one 90 elbow). 1. A maximum of three 90 elbows are permitted. 2. Minimum distance between elbows is 1 ft. (305mm). • Maintain clearances to combustibles as listed in the "Clearances" section. • Horizontal vent must be supported every 3 feet. • Firestops are required at each floor level and whenever passing through a wall. • Must use optional rigid pipe adaptor (Part# 770-994) when using rigid pipe vent systems. • A vent guard should be used whenever the termination is lower than the specified minimum or as per local codes. • Flex system can only be used up to 10 feet - otherwise rigid venting must be used. Horizontal Venting with Two (2) 90 Elbows Horizontal Venting with Three (3) 90 Elbows One 90 elbow = Two 45...

  • Page 52: Venting Introduction

    installation Venting Introduction The CV72E uses the "balanced flue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney. Note: These flue pipes must not be connected to any other appliance. The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited. Venting Arrangement for Horizontal Terminations The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90 (two 45 elbows equal one 90 elbow). Note: Must use optional rigid pipe adapter (Part# 770-994) when using Rigid Pipe Venting Systems) 55-1/4” (1403mm) VENT RESTRICTOR SETTING: Vent restrictor factory set at Set 0. Refer to the "Vent Restrictor Position" section for details on how to change the vent restrictor from the factory setting of Set 0 to Set 2 if required.

  • Page 53: Horizontal Termination 5" X 8" Venting (Flex Vent Systems)

    installation Horizontal Termination 5" x 8" NOTE: Horizontal sections must be sup- ASTROCAP XL ported at intervals not exceeding 3 Venting (Flex Vent Systems) DIMENSIONS (946-623/P) feet (0.9 meter). (Flame picture and performance will be affected by sags in the liner). 4. Separate the 2 halves of the wall thimble and Minimum Vent Clearances to securely fasten the one with the tabs to the...

  • Page 54: Horizontal Termination - 5" X 8" Venting (Rigid Vent Systems)

    installation Horizontal Termination - 5" Horizontal runs of vent must be supported every Below Grade Snorkel Installation 3 feet (0.9meter). Wall straps are available for If the snorkel termination must be installed below x 8" Venting (Rigid Vent Sys- this purpose. grade, i.e. basement application, proper drainage must be provided to prevent water from entering tems) 6. Mark the wall for a square hole.-see chart to left the snorkel termination. See diagram 56. Do not for size. The center of the square hole should attempt to enclose the snorkel within the wall or line up with the center-line of the horizontal pipe.

  • Page 55: Vertical Terminations - Rigid/Flex Pipe 5" X 8

    installation Vertical Terminations - " Rigid/Flex Pipe 5" x 8 The minimum components required for a basic vertical termination are: Vertical Terminal 1 Vertical Termination Cap 1 Rigid Pipe Adaptor (770-994) 1 Ceiling Firestop 1 Flashing Storm Collar 1 Storm Collar 1 Length of pipes to suit wall thickness & vent run (see chart) Flashing Galvanized pipe is desirable above the roofline due to its higher Ceiling Firestop corrosion resistance. Continue to add pipe sections through the flashing until the height of the vent cap meets the minimum height...

  • Page 56: Vertical Terminations - Rigid/Flex Pipe 5" X 8

    installation Vertical Terminations - " Rigid/Flex Pipe 5" x 8 • Two 45 elbows equal to one 90 elbow. Maximum of six 45 elbows allowed. • Vent must be supported at offsets. • Minimum distance between elbows is 1 ft. (305mm). • Maintain clearances to combustibles as listed in the "Clearances" section. • Horizontal vent must be supported every 3 feet. • Firestops are required at each floor level and whenever passing through a wall. • Must use optional rigid pipe adaptor (Part# 770-994 when using rigid pipe vent systems) Vertical Venting with Three (3) 90 Elbows One 90 elbow = Two 45 elbows.

  • Page 57: Venting Arrangement For Vertical Terminations - Straight Vertical Venting And/Or With A Max. Of Two (2)

    installation Venting Arrangement for Vertical Terminations - Straight Vertical Venting and/or with a Max. of Two (2) 90 Elbows (1 - 90 2 - 45 Horizontal (Feet) The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using two 1 1 4 4 1 1 8 8 1 1 0 0 1 1 2 2 1 1 6 6 2 2 0 0...

  • Page 58: Vertical Termination (Rigid Vent Systems)

    installation (Rigid Vent Vertical Termination 4) Assemble the desired lengths of pipe and elbows. Ensure that all pipes and elbow connections are Systems) in the fully twist-locked position and sealed. Note: A top clearance of 3"(76mm) and Note: side bottom clearance of 2" (51mm) must be maintained; except when For best results and optimum performance passing through a wall, ceiling, or at with each approved venting system, it is highly Diagram 5 recommended to apply “Mill-Pac”...

  • Page 59: Vertical Terminations - Vertical Flex Vent Kit (Part #946-772)

    Termination Cap installation Storm Collar Vertical Termination Flashing Vertical Terminations - Vertical Flex Vent Kit (Part #946-772) 5" (127 mm) x 8" (203 mm) Venting - Vertical Flex Vent Kit (946-772) Vertical Flex Vent Kit includes: Roof support Firestop spacer to prevent debris •...
  • Page 60 Note: Any closets or storage spaces which the vent passes through must be enclosed. Diagram 3a Diagram 3a Diagram 3a 920-328 09.18.20 City Series ACB60E | 61 920-328 09.18.20 City Series ACB60E | 61 | City Series CV72E 920-385 Page 2 03.23.21...

  • Page 61: Vertical Flex Extension Kit (Part # 946-769)

    installation Vertical Flex Extension Kit for North America Part #946-769 Vertical Flex Extension Kit (Part # 946-769) 20 foot (6.1 m) flex pipe extension Vertical Flex Extension Kit includes: 5" (127 mm) inner pipe - 20 ft. (6.1 m) • 20 ft. flex pipe (inner & outer) with 10 spacers •...

  • Page 62: Ceiling Firestop / Firestop Spacer (Part # 946-770)

    6.1m 920-328 920-337 10.05.20 10.05.20 CEILING FIRESTOP/FIRESTOP SPACER | City Series ACB60E ( PART # 946-757) CEILING FIRESTOP/FIRESTOP SPACER | City Series ACB60E Used in conjunction with the 946-755 Vertical flex kit and 946-756 kit Vertical ( PART # 946-757) flex extension kit/Horizontal power vent kit.

  • Page 63: Heatwave Deflector + Heatwave Venting Installation

    installation Heatwave Deflector + Heatwave Venting Installation NOTE: Install the Heatwave venting to the unit before moving unit into framing to allow access to the back screws. 5. Connect the flex pipe to the adaptor with 3 screws. 1. Remove the deflector from the top of the unit by removing 4 screws. 2. Remove the knockout from the top of the unit and recycle. 6. Fold the deflector (removed from Step 1) fold the 4 tabs to 90° and secure the tabs to the unit with 4 screws. 3. Fold up 3 tabs up as shown. 4. Connect pipe adaptor with 3 screws (use the lower holes on the adaptor). City Series CV72E |...

  • Page 64: System Data

    installation Pilot Adjustment 885 S.I.T. Valve Description CV72E NG SYSTEM DATA Periodically check the pilot flames. Correct flame 1) 6 Stage flame adjustment pattern has two strong blue flames: 1 flowing Max. Supply 14"WC (3.45 Kpa) 2) Pilot adjustment around the flame sensor and 1 flowing across Pressure 3) Outlet Pressure Tap the burner (it does not have to be touching the...

  • Page 65: Wiring The Unit

    installation Wiring the Unit The wiring for the unit should be completed before any finishing material is installed. 1. Remove the right side and front right access panel--see access panel removal instructions in this manual. 2. Loosen 2 screws in locations shown below. 3. Slide electrical box plate towards the back of the unit and then out. 4. B ring the wiring from inside the wall through the opening created when the plate was removed in the previous step. Item Part # Description 910-430 Receptacle Cover 910-428 Receptacle 5. Wire the electrical box. NOTE: The receptacle and receptacle cover may be located in the manual pack and may need to be installed. 6. Feed any excess wiring into the wall and reinstall the plate onto the wall of the unit. 7. Reinstall electrical box and plate onto screws.

  • Page 66: Wiring Diagrams

    installation Wiring Diagram No electrical power supply is required for the gas control to operate. 120 Volt Electrical power must be brought to the appliance by a licensed AC power is needed for the lights. A receptacle box, receptacle and cover are electrician. provided and located on the left hand side of the unit, under the outer base panel. • Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. • Ensure that the wires do not touch any hot surfaces and are away from sharp edges. •...

  • Page 67: Inner Glass Panel (Firebox Glass) Installation / Removal

    installation Inner Glass Panel (firebox glass) Installation / Removal To watch the glass installation video click here: http://youtu.be/DsPbbiLIbdU Note: glass panels must be installed to operate fireplace 3. F rom the front inside lower panel of the unit--pivot the 3 glass supports into upright position as shown below. WARNING: GLASS HANDLING We recommend using the glass vacuum holders supplied by the manufac- turer. Lower the glass to rest in a safe place, this is to prevent damage to the glass edges. Extra care must be taken when removing/installing the glass. Breakage or damage to the edge of the glass which occurs as a result of careless handling will not be covered under warranty. • W e recommend handling the glass with supplied vacuum clamps • When removing glass–prepare a soft, scratch resistant surface to place the glass •...
  • Page 68 installation 5. S upport the glass with one hand and open the 9 lower clamps.-- Push down on levers to lower glass panel 8. C arefully lean glass forward onto supports. Lower clamps (x9) in open position 6. Pull the 3 lower glass gasket pads forward to release the glass. Gasket pad Glass panel--leaning on supports NOTE: The firebox glass may remain propped on the glass supports to clean the interior surface. Use care when cleaning -- do not apply excessive force or pressure. 9. T o remove the firebox glass panel from the unit: tilt the glass forward 7. L ocate the 2 levers below the glass and turn them both 90° in a clockwise gently onto the glass supports, grip both suction clamps and lift the glass direction to lower the firebox glass panel.

  • Page 69: Optional Barrier Glass Stoppers Installation / Removal

    installation Optional Barrier Glass Stoppers Installation / Removal There are 2 optional stoppers included in the manual pack which provide 3. Reinstall the side panel. additional support to the glass barrier, if desired--install the stoppers prior to installation of the barrier glass. 1. I f already installed, remove the side panel by pulling off and lifting out. 4. Repeat steps 1-3 on the opposite side. 2. S lide the stopper bracket in between the front panel and the unit wall as shown. Barrier stoppers installed 5. Proceed to installation of the barrier glass. City Series CV72E |...

  • Page 70: Lp Conversion Instructions

    CITY SERIES installation CONVERSION FROM NG TO LP LP Conversion Instructions CV72E-11 using SIT 885 NOVA Gas Valve THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT DO NOT DO THIS CONVERSION! WARNING 6. Disconnect the Cable coming from the Pressure Regulator Motor.
  • Page 71 CITY SERIES installation tooltip 12. Bend the arm of the aeration lever bracket up from 90° to straighten and tooltip release aeration lever (lever will come with the burner). Bracket Aeration lever 13. Loosen 8 screws in locations shown below (2 at front and 2 at rear)—slide burner to the left away from the orifice and lift out.

  • Page 72: Bulb Replacement

    maintenance Bulb Replacement 1. T urn off power and gas to unit and allow to cool to room temperature. 5. Loosen 2 screws on each side of individual inner light cover and remove. 2. R emove outer safety glass panels and inner panels (firebox glass)–see 6. R emove glass cover by using a flat head screwdriver to pry the tab securing instructions in this manual. the glass assembly in place. 7. Replace bulb and reverse steps to complete procedure. NOTE: D o not handle bulb with bare hands. Use packaging or a tissue to hold new bulb when replacing. Regency Part# 911-208 Oven Lamp Assembly G9 120V/25W Regency Part# 911-072 Replacement Bulb G9 120 Volt/25 watt t t o o o o l l t t i i p p Light are located behind the front face of the unit 3. L oosen 2 outer screws on each side to remove outer light cover — located in the upper inside front of the firebox.

  • Page 73: Cv72E Painted Panel Installation

    CITY SERIES CV72E Painted Panel Installation Inner Panels Outer Panels tooltip CV72E INNER PANELS CV72E OUTER PANELS The CV72E may be equipped with optional steel inner panels. 1. Install 3 front outer panels as shown below. CV72E - 5 outer panels and 10 inner panels.

  • Page 74: Enamel Panel Installation

    CITY SERIES Enamel Panel Installation CV72E ENAMEL PANEL INSTALLATION Black Enamel Panels — Handling Instructions • Black Enamel panels must be inspected for scratches and dimples prior to installation. All claims to be recorded at this time. Claims for damage after installation will not receive consideration.

  • Page 75: Glass Panel Installation

    CITY SERIES Glass Panel Installation CV72E GLASS PANEL INSTALLATION 1. Turn off power and gas to unit and allow to cool to room temperature. 6. Install two back panel brackets in between the back wall and the burner Remove the safety glass and fi rebox glass — see manual for instructions.
  • Page 76 CITY SERIES installation 11. Secure side panel 9 with one screw on the top bracket as shown. 16. Install side outer panel (14) by manoeuvering the panel between the wall and the barrier stopper bracket as shown below. Repeat on other 12.

  • Page 77: Burner And Firebox Media Options

    installation Burner and Firebox Media Options Spread the media evenly over the burner. Ensure the glass/stones do not overlap excessively as this will affect the flame pattern. IMPORTANT NOTE: Only the supplied approved media are to be used with these fireplaces. Use of any other type of glass or stones can alter the unit's performance. Any damage caused by the use of any unapproved glass or stones will not be covered under warranty. When using Ceramic Spa/Volcanic Stones ensure required glass crystals/beads are used as a base. DO NOT overstack Ceramic Spa Stones or Volcanic Stones on burner or in the pilot area. Media must be installed on and around burner only in amounts noted below. NOTE: Regardless of option chosen, fireglass must be installed on burner in all cases. CV72E Approved Media* Where Used Quantity Fireglass (starfire, copper or black) On burner...

  • Page 78: Optional Driftwood Log Set Installation

    CITY SERIES 72 Optional Driftwood Log Set Installation CITY SERIES 72 - LOG INSTALLATION Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken logs can interfere with pilot operation.
  • Page 79 CITY SERIES 72 installation 6. Place Log 1 behind the burner. Log 1 will rest on the pilot hood and 2 10 . The left end of Log 4 should also sit 2" from the edge of the panel center log guides. Line up the knot on the top of the log with the center as shown below.
  • Page 80 CITY SERIES 72 installation 13. Install Log 7 on the diagonal--line up the left end of Log 7 with the 4th Do not completely cover side secondary air inlets vertical line from the right on the front of the burner as shown below.
  • Page 81 CITY SERIES 72 installation 19. Install Log 12--line up the pin locator on Log 12 with the pin on Log 3 21. Install Log 14--place one end of Log 14 on the rest on Log 8 and the and rest the other end of Log 12 on the rest on Log 8 as shown below.

  • Page 82: Optional Birch Wood Log Set Installation

    CITY SERIES 72 installation CITY SERIES 72 - LOG INSTALLATION Optional Birch Wood Log Set Installation Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced.
  • Page 83 CITY SERIES 72 installation 6. Place Log 1 behind the burner. Log 1 will rest on the pilot hood and 2 10 . The left end of Log 4 should also sit 2" from the edge of the front panel.
  • Page 84 CITY SERIES 72 13. Install Log 7 on the diagonal--line up the left end of Log 7 with the 4th 16. Install Log 9--line up the pin locator on Log 9 with the pin on Log 1 vertical line from the right on the front of the burner as shown below.
  • Page 85 CITY SERIES 72 19. Install Log 12--line up the pin locator on Log 12 with the pin on Log 3 21. Install Log 14--place one end of Log 14 on the rest on Log 8 and and rest the other end of Log 12 on the rest on Log 8 as shown below.

  • Page 86: Optional Splitwood Log Set Installation

    CITY SERIES 72 Optional Splitwood Log Set Installation CITY SERIES 72 - LOG INSTALLATION Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken logs can interfere with pilot operation.
  • Page 87 CITY SERIES 72 6. Place Log 1 behind the burner. Log 1 will rest on the pilot hood and 10 . The left end of Log 4 should also sit 2" from the edge of the panel 2 center log guides. Line up the log with the center of the pilot hood as shown below.
  • Page 88 CITY SERIES 72 16. Install Log 9--line up the pin locator on Log 9 with the pin on Log 1 and rest the other end of Log 9 on the rest on Log 4 as shown below. 14. Install Log 8 - the left end of the log should sit 1" from the edge of the panel.
  • Page 89 CITY SERIES 72 19. Install Log 12--line up the pin locator on Log 12 with the pin on Log 3 21. Install Log 14--place one end of Log 14 on the rest on Log 8 and the and rest the other end of Log 12 on the rest on Log 8 as shown below.

  • Page 90: Glass Barrier Installation

    installation Glass Barrier Installation OWNERS/INSTALLATION MANUAL Glass barrier removal video Glass barrier installation 1. Ensure fireplace is operating properly and all firebox glass, and liner panels are installed prior to installing the glass safety barrier. 2. Remove the protective peel from the glass safety barrier and clean the inner surface. Identify the hooks on the glass safety barrier, these indicate the inner surface.

  • Page 91: Glass Barrier Adjustment

    installation Glass Barrier Adjustment Glass barrier adjustment If glass isn’t hanging straight, use a phillips screwdriver to adjust the angle. Clockwise = angles barrier out toward you Counter clockwise = angles barrier in towards the unit. Slide the screwdriver straight up at the two indicator slots. City Series CV72E |...

  • Page 92: Aeration Adjustment

    operating instructions Aeration Adjustment 4. Adjust aeration accordingly. Pushing lever in -- closes the air shutter. The burner aeration is factory set but may need adjusting due to either the Pulling the lever outward -- opens the air shutter. local gas supply or altitude. Open the air shutter for a blue flame or close for a more yellow flame. Minimum Air Shutter Opening: Note: If the firebox glass, logs, inner panels, etc. are already installed, the 3/16" aeration can be adjusted from outside the firebox. NG with Logs 3/16" NG with Stones 3/16" 1. R emove the centre access panel on the outer trim, if finishing material is already installed, remove the glass safety barrier and center outer panel-- LP 3/8" see instructions in this manual. LP with Logs 3/8" LP with Stones 3/8" Note: Any damage due to carboning resulting from improperly setting the aeration controls is NOT covered under warranty.

  • Page 93: Maintenance Instructions

    maintenance Maintenance Instructions Glass Gasket ote: If you have an incorrect flame pattern, contact your Regency dealer for further ® If the glass seal on the appliance requires 1. Always turn off the gas valve before cleaning. instructions. replacement a graphite seal specifically designed For relighting, refer to lighting instructions. Keep Incorrect flame pattern will have small, probably the burner and control compartment clean by for this appliance is required. Part # is 666-124 for yellow flames, not coming into proper contact...

  • Page 94: Valve Replacement

    maintenance tooltip Valve Replacement Important: Always shut off gas supply/120 volt power prior to servicing the 9. Remove 8 screws in locations shown below. gas valve. 1. T urn off unit and allow to cool to room temperature. 2. R emove outer enamel or steel panels—see instructions in the panel removal section in this manual 3. R emove outer safety (barrier) and inner glass (firebox glass)–see instruc- tions in this manual. 4. Remove all media and logs (if installed) — set aside. 5. Remove inner base panels--see panel section in this manual. tooltip 6. B end the arm of the aeration lever bracket up from 90° to straighten and tooltip release aeration lever (lever will come with the burner). tooltip Bracket 10. L ift valve tray out partially and disconnect flexible gas connection on the Aeration valve inlet side, remove valve tray- replace with new valve tray. lever 7. R emove the trim cover on right side of burner by lifting off. Also remove the burner surround by sliding to the left and lifting off. Trim cover Burner Surround 8. L oosen 8 screws in locations shown below (2 at front and 2 at rear)—slide burner to the left away from the orifice and lift out.

  • Page 95: Gas Maintenance - Recommended Annual Routine

    maintenance Gas Maintenance Gas Maintenance - Recommended Annual Routine Recommended Annual Routine Maintenance for Gas Fireplaces, Stoves and Inserts In order for your Regency appliance to continue to provide comfort to your home periodic maintenance must be performed to ensure it is operating at peak efficiency. The items in the list should be checked by a licensed gas service technician during the annual service check. Your unit may require more frequent maintenance checks if you notice any changes in how it operates. Operational changes to look for can include, but are not limited to, extended start up time, increased fan noise, residue/carbon build up, white build up on the glass/firebox, increased operating noise etc. Should any of these or other conditions arise, discontinue use and schedule a service check with your local licensed gas technician. The list below shows items your licensed service technician will need to check and service at least annually. Clean Inspect Check • Glass • Pilot assembly • Voltage on thermocouple/thermopile (mil- • Interior bricks / panels • Burner livolt models) • Burner ports & burner air shutter •...

  • Page 96: Parts List

    parts list CV72E Main Assembly 9 10 | City Series CV72E...

  • Page 97: Main Assembly

    parts list Main Assembly 666-574/P Valve Assembly Complete - NG 911-266/P IFC Board SIT Proflm II 7day PV+5 Sec.FFRT 0.584.625 666-776/P Valve Assembly Complete - LP 911-175 Remote Control GTMFL SIT 0.584.042 911-084 Novasit Valve - NG 885 SIT IPI 0.885.001 910-369 Receptacle Box Low Volt. SC100A 911-085 Novasit Valve - LP 885 SIT IPI 0.885.002 910-576 Cover Wall Mount White 0.584.803 911-010 Stepper Motor - NG For 885/886 SIT 0.907.013 910-428 Receptacle Duplex White 911-011 Stepper Motor - LP For 885/886 SIT 0.907.012 910-429 Receptacle Duplex Metal 911-139 Novasit Pilot Assembly IPI SIT NG 2 Flame 0.199.064 910-430 Receptacle Cover Duplex Metal...

  • Page 98: Accessories

    parts list 666-037 Upper Glass Bracket Optional Accessories 666-038 Upper Glass Clamp 666-977 Conversion Kit - LP 666-039 Upper Glass Clamp Left 671-930/P Driftwood Log Set 671-932/P Birch Log Set 666-041 Upper Glass Rail Right 666-907* Inner Panel Black (Painted) 666-042 Upper Glass Rail Left 666-906* Inner Panel Glass Black 666-052 Lower Glass Rail Left 666-908* Inner Panel Enamel Black 666-054 Lower Glass Rail Center Sold only as complete sets 666-055 Lower Glass Rail Right 656-955 Extended View Kit Black Glass 936-243 Upper/Lower Channel/Rail Gasket (Sold per Foot 666-991 Chase Vent Front Black 12 feet required 666-995 Adaptor Heat Wave 666-056...
  • Page 99 notes City Series CV72E |...

  • Page 100: Warranty

    warranty Limited Lifetime Warranty FPI Fireplace Products International Ltd. (for Canadian customers) and Fireplace Products U.S., Inc. (for U.S. customers) (collectively referred to herein as “FPI”) extends this Limited Lifetime Warranty to the original purchaser of this appliance provided the product remains in the original place of installation. The items covered by this limited warranty and the period of such coverage is set forth in the table below.
  • Page 101 warranty At all times FPI reserves the right to inspect reported complaints on location in the field claimed to be defective prior to processing or authorizing of any claim. Failure to allow this upon request will void the warranty. All warranty claims must be submitted by the dealer servicing the claim, including a copy of the Bill of Sale (proof of purchase by you).
  • Page 102 warranty Limitations of Liability: The original purchaser’s exclusive remedy under this warranty, and FPI’s sole obligation under this warranty, express or implied, in contract or in tort, shall be limited to replacement, repair, or refund, as outlined above. IN NO EVENT WILL FPI BE LIABLE UNDER THIS WARRANTY FOR ANY INCIDENTAL OR CONSEQUENTIAL COMMERCIAL DAMAGES OR DAMAGES TO PROPERTY.
  • Page 103 warranty Product Registration and Customer Support: Thank you for choosing a Regency Fireplace. Regency strives to be a world leader in the design, manufacture, and marketing of hearth products. To provide the best support for your product, we request that you complete a product registration form found on our Web Site under Customer Care within ninety (90) days of purchase.
  • Page 104 104 | City Series CV72E...
  • Page 105 notes City Series CV72E |...
  • Page 106 notes 106 | City Series CV72E...
  • Page 107 City Series CV72E |...
  • Page 108 Installer: Please complete the following information Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial #: ____________________________________________________________ Printed in Canada Regency and City Series are trademarks of FPI Fireplace Products International Ltd. © Copyright 2021, FPI Fireplace Products International Ltd. All rights reserved.
