Caution: Please make sure you have all parts indicated below prior to assembly.
This bed is heavy and can best be assembled with the help of two or more people.
Diagram 5
Diagram 3
ASSEMBLY INSTRUCTION
ITEM# 5070-90567A-GRY 6/6-6/0 Tufted Headboard
5070-90568A-GRY 6/6-6/0 Tufted Footboard
5070-90569 6/6 Tufted Rails (C)
5070-90563 6/0 Tufted Rails (C)
Diagram 2
1/3
Diagram 1
Advertisement
Table of Contents
Related Manuals for Hooker Furniture 5070-90567A-GRY 6/6
Summary of Contents for Hooker Furniture 5070-90567A-GRY 6/6
- Page 1 ASSEMBLY INSTRUCTION ITEM# 5070-90567A-GRY 6/6-6/0 Tufted Headboard 5070-90568A-GRY 6/6-6/0 Tufted Footboard 5070-90569 6/6 Tufted Rails (C) 5070-90563 6/0 Tufted Rails (C) Caution: Please make sure you have all parts indicated below prior to assembly. This bed is heavy and can best be assembled with the help of two or more people.

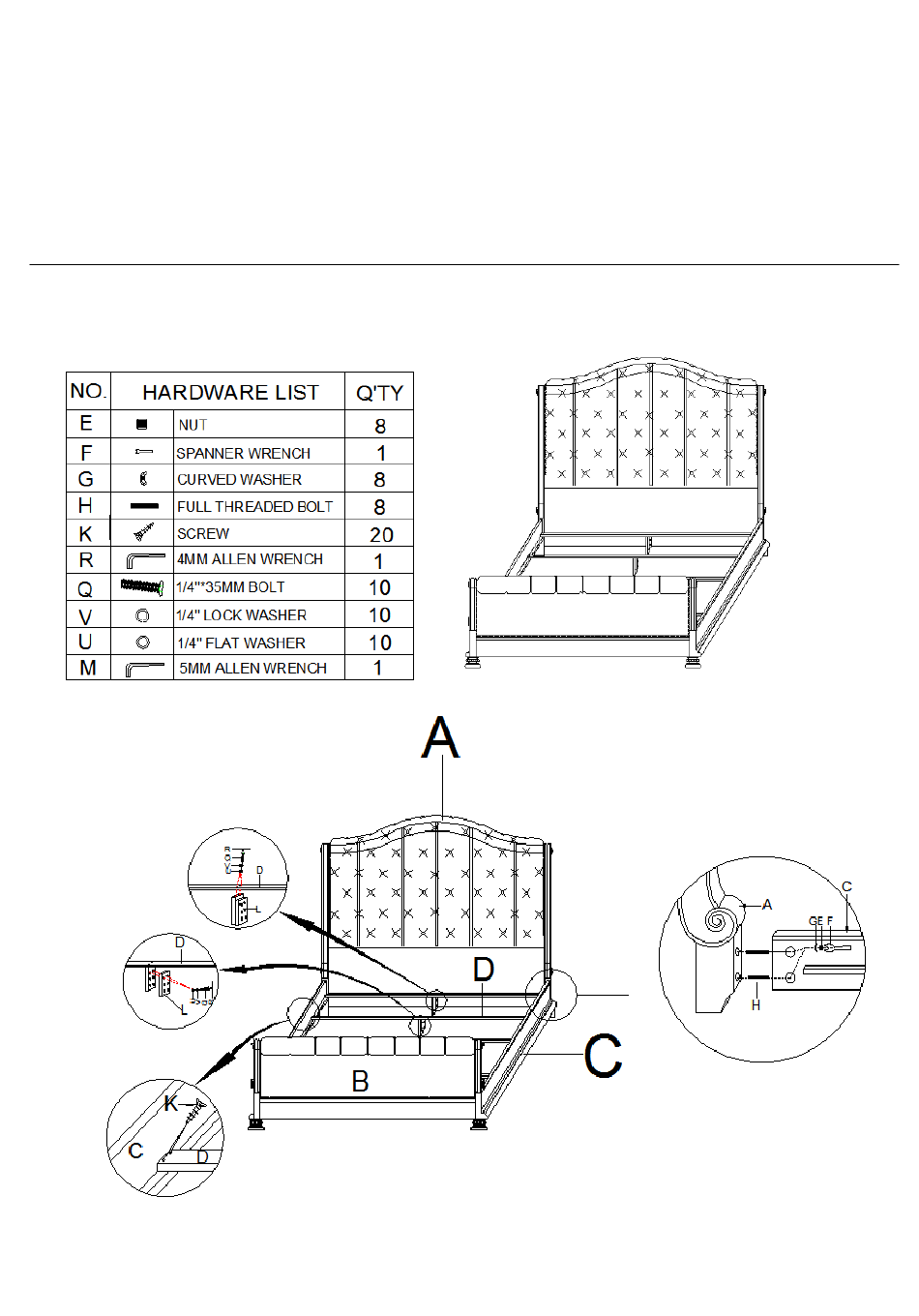

- Page 2 Assembly steps: 1. Insert 2 bolts (H) into holes of each post on Headboard (A) and Footboard (B), attach the ends of side rails (C) to bolts (H) on posts by using 2 curved washers (G) and 2 nuts (E), tighten nuts (E) securely with spanner wrench (F).
- Page 3 Note: You can change the height of slats by adjusting the height of cleats on side rails as shown in Diagram 4. Remove bolts (N), lock washers (O) and flat washers (P) from cleats by turning the bolts (N) with allen wrench (M) in anti-clockwise direction. Adjust the cleats to a desired position, and then secure lock washers, flat washers, bolts in clockwise direction by turning with allen wrench.
