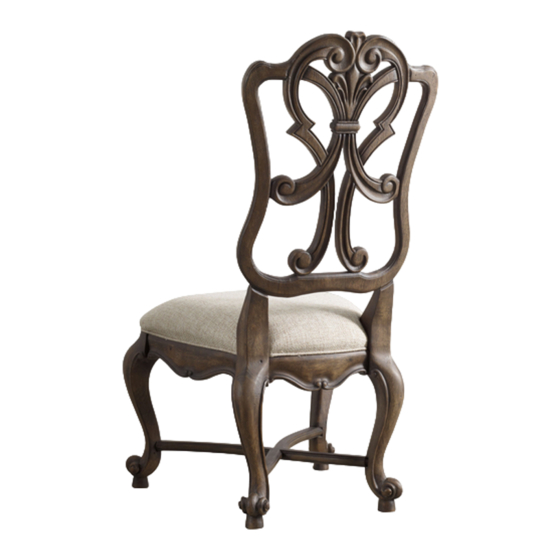

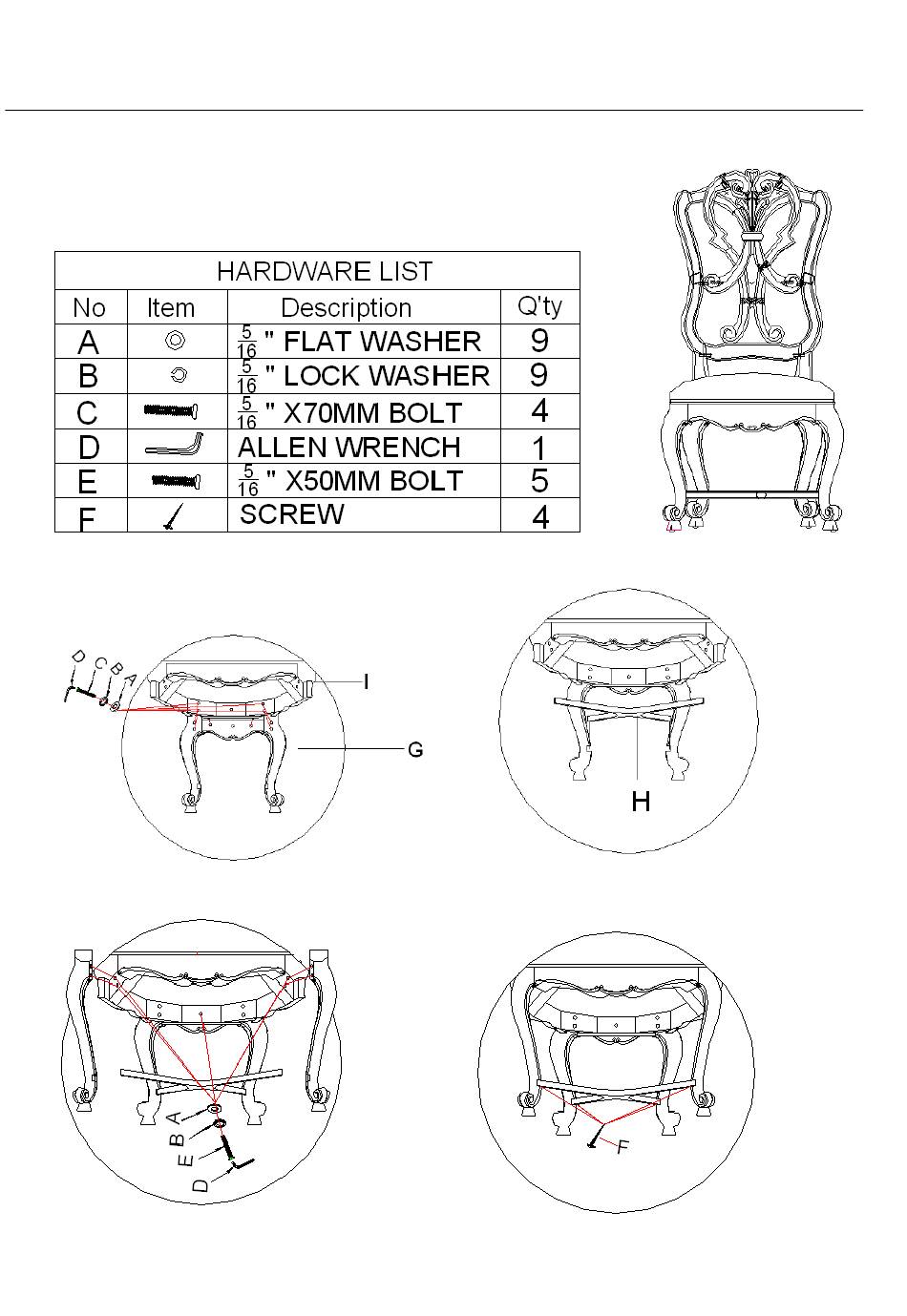

- Page 1 ASSEMBLY INSTRUCTION Item#: 5070-75411 Wood Back Side Chair ** Please make sure you have all parts indicated below prior to assembly. DIAGRAM 1 DIAGRAM 2 DIAGRAM 3 DIAGRAM 4...
- Page 2 Assembly Steps: There are two K/D chairs in one box. Please follow numbers on one chair and letters on the other chair during assembly. 1. Place back frame (G) on a clean surface. 2. Tighten the rear corner blocks of seat frame (I) to back legs of frame (G) using bolts (C), lock washers (B), flat washers(A).
- Page 3 Note: Most floors have slight irregularities that can affect chair leveling. If your chair is uneven when placed in its desired location, perform the following steps: 1. Loosen front legs to finger tight. 2. Extend both front legs upward to their fullest length. 3.
