Hooker Furniture 5078-10464 SOUTH PARK Assembly Instruction

Thank you for purchasing this quality product. Be sure to unpack carefully looking for small parts
which may have come loose during shipment.
Read all instruction and study the drawing carefully before starting the assembly process.

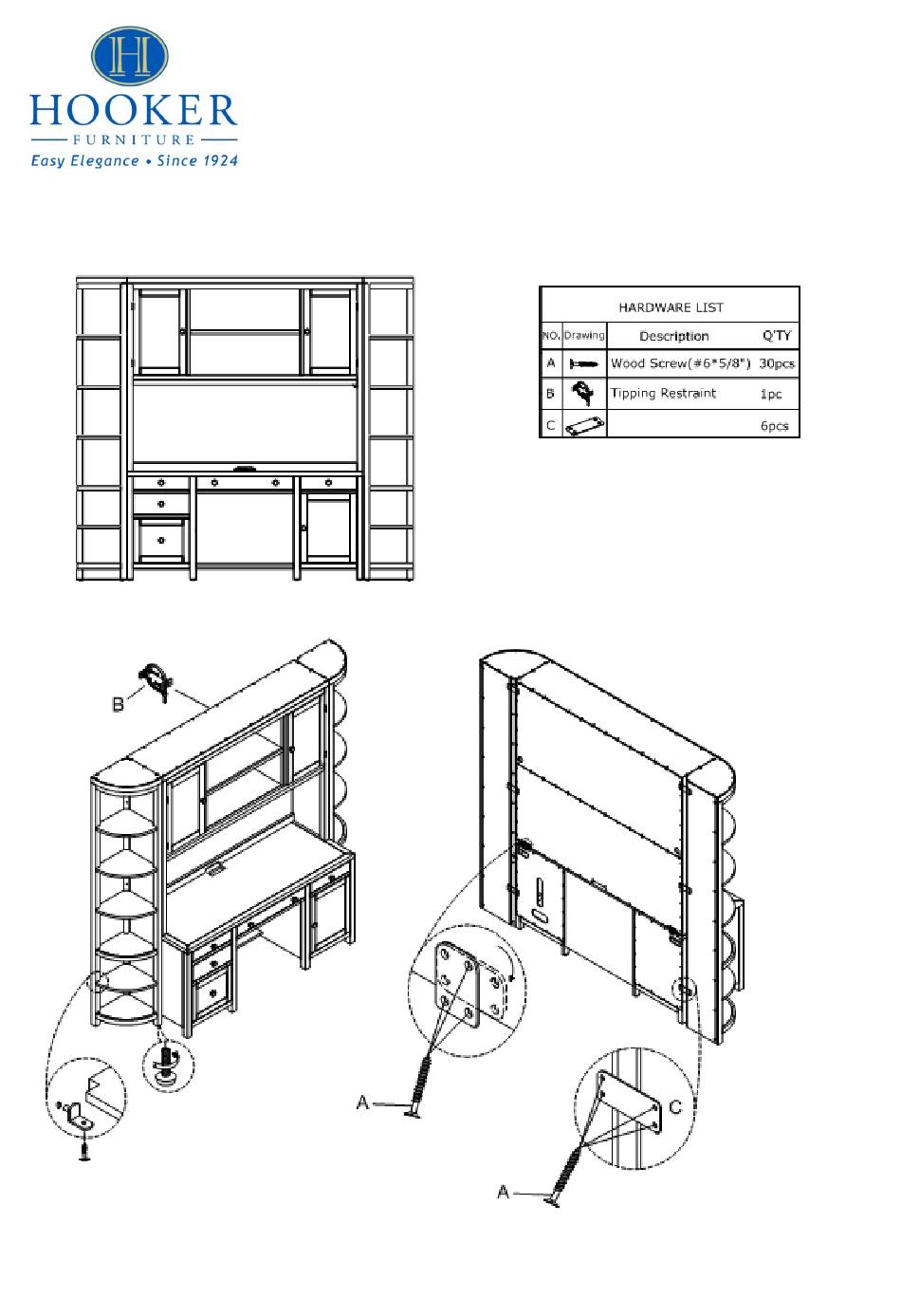

Screw [B] to avoid tipping
To connect to items tightly, use the mending plate.
[1]Rotate the plate of the hutch
[2]Use[A] to fix the plates.
To connect to items tightly, use the mending plate.
[1] Connect 5078-10450 Corner Unit with 5078-10464 Computer Credenza & 5078-10467 Computer
Credenza Hutch, Use [C] to connect three items above.
[2] Screw the plates with [A]. The plates are not changeable.
ASSEMBLY INSTRUCTION
5078-10464 SOUTH PARK Computer Credenza
5078-10467 SOUTH PARK Computer Credenza Hutch
Adjust center leg & levelers
if needed to level case on
uneven floor.
5078-10450 SOUTH PARK Corner Unit
The adjustable shelves are
screwed in place to avoid damage during transit.
To adjust the shelf height,
remove screws then place pins in the desired level.
