Levelflex M FMP40 PROFIBUS PA
Endress+Hauser

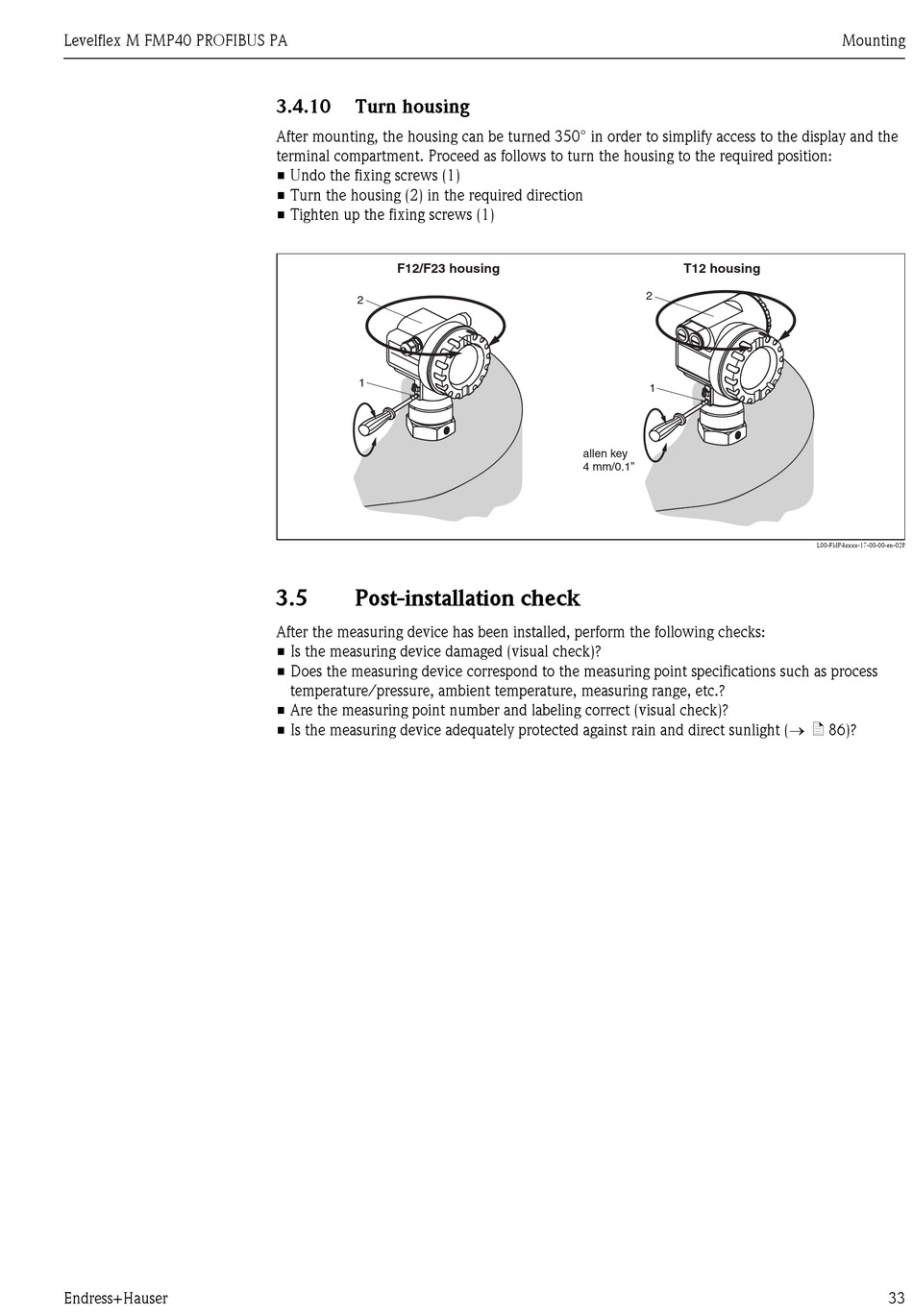

3.4.10
Turn housing
After mounting, the housing can be turned 350° in order to simplify access to the display and the
terminal compartment. Proceed as follows to turn the housing to the required position:
• Undo the fixing screws (1)
• Turn the housing (2) in the required direction
• Tighten up the fixing screws (1)
F12/F23 housing
2
1
3.5
Post-installation check
After the measuring device has been installed, perform the following checks:
• Is the measuring device damaged (visual check)?
• Does the measuring device correspond to the measuring point specifications such as process
temperature/pressure, ambient temperature, measuring range, etc.?
• Are the measuring point number and labeling correct (visual check)?
• Is the measuring device adequately protected against rain and direct sunlight (→ ä 86)?
T12 housing
2
1
allen key
4 mm/0.1"
Mounting
L00-FMP4xxxx-17-00-00-en-028
33
